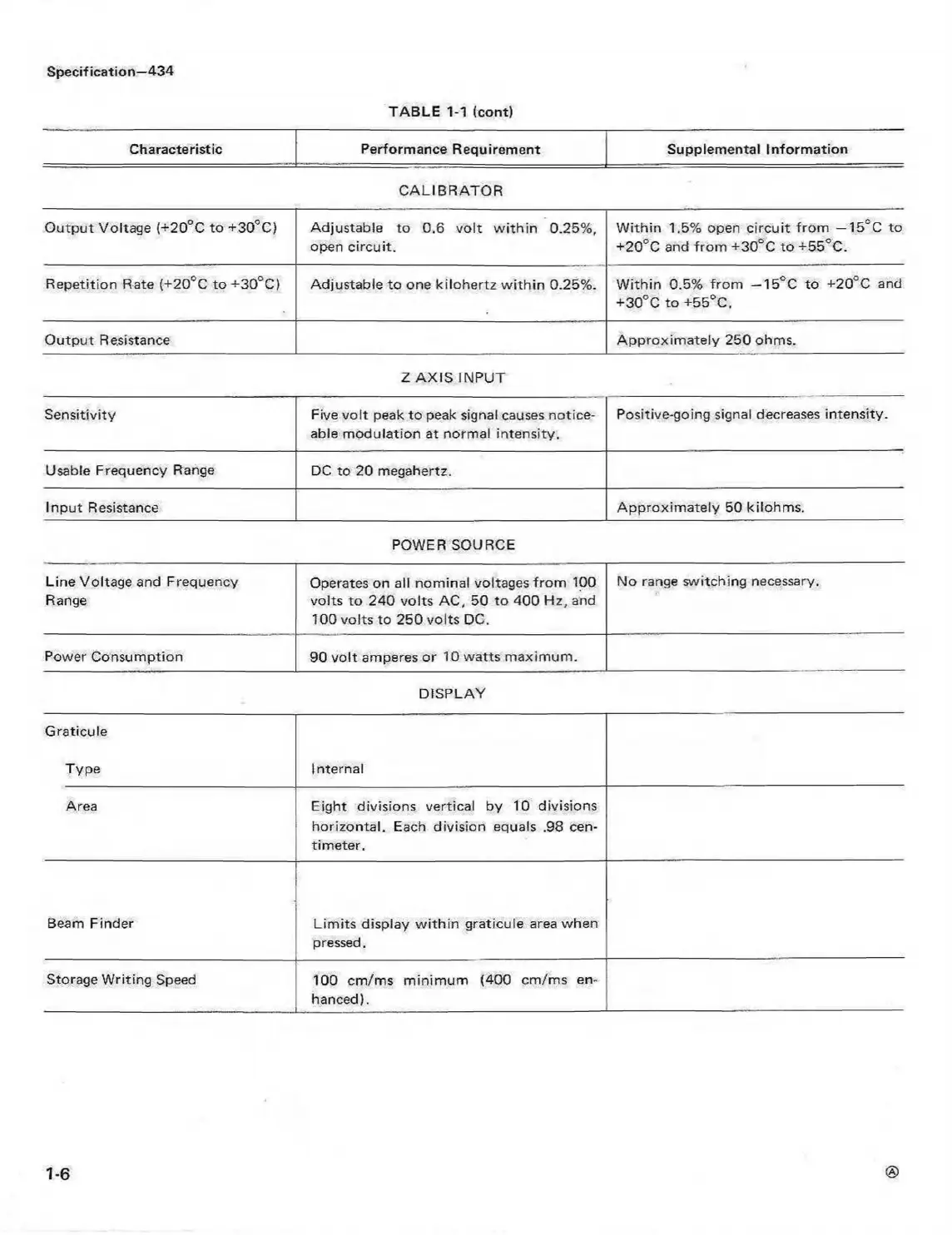

Specification—4-34
TABLE 1-1 (cont)
Characteristic
Performance Requirement Supplemental Inform ation
CALIBRATOR
O utput Voltage (-s-20°C to +30°C) Adjustable to 0.6 volt w ithin 0.25%,
open circuit.
W ithin 1.5% open circuit from —15°C to
+20°C and from +30°C to +55°C.
Repetition Rate (+20°C to +30°C)
Adjustable to one kilohertz w ithin 0.25%.
W ithin 0.5% from — 15°C to +20° C and
+30°C to +55°C.
O utput Resistance
Approxim ately 250 ohms.
Z AX IS INPUT
Sensitivity
Five volt peak to peak signal causes notice
able modulation at normal intensity.
Positive-going signal decreases intensity.
Usable Frequency Range
DC to 20 megahertz.
Input Resistance
Approxim ately 50 kilohms.
POWER SOURCE
Line Voltage and Frequency
Operates on all nominal voltages from 100
No range switching necessary.
Range volts to 240 volts AC, 50 to 400 Hz, and
100 volts to 250 volts DC.
Power Consumption
90 volt amperes or 10 watts maximum.
DiSPLAY
Graticule
Type
Internal
Area Eight divisions vertical by 10 divisions
horizontal. Each division equals .98 cen
timeter.
Beam Finder
Lim its display w ith in graticule area when
pressed.
Storage W riting Speed 100 cm/ms minimum (400 cm/ms en
hanced).
1-6
