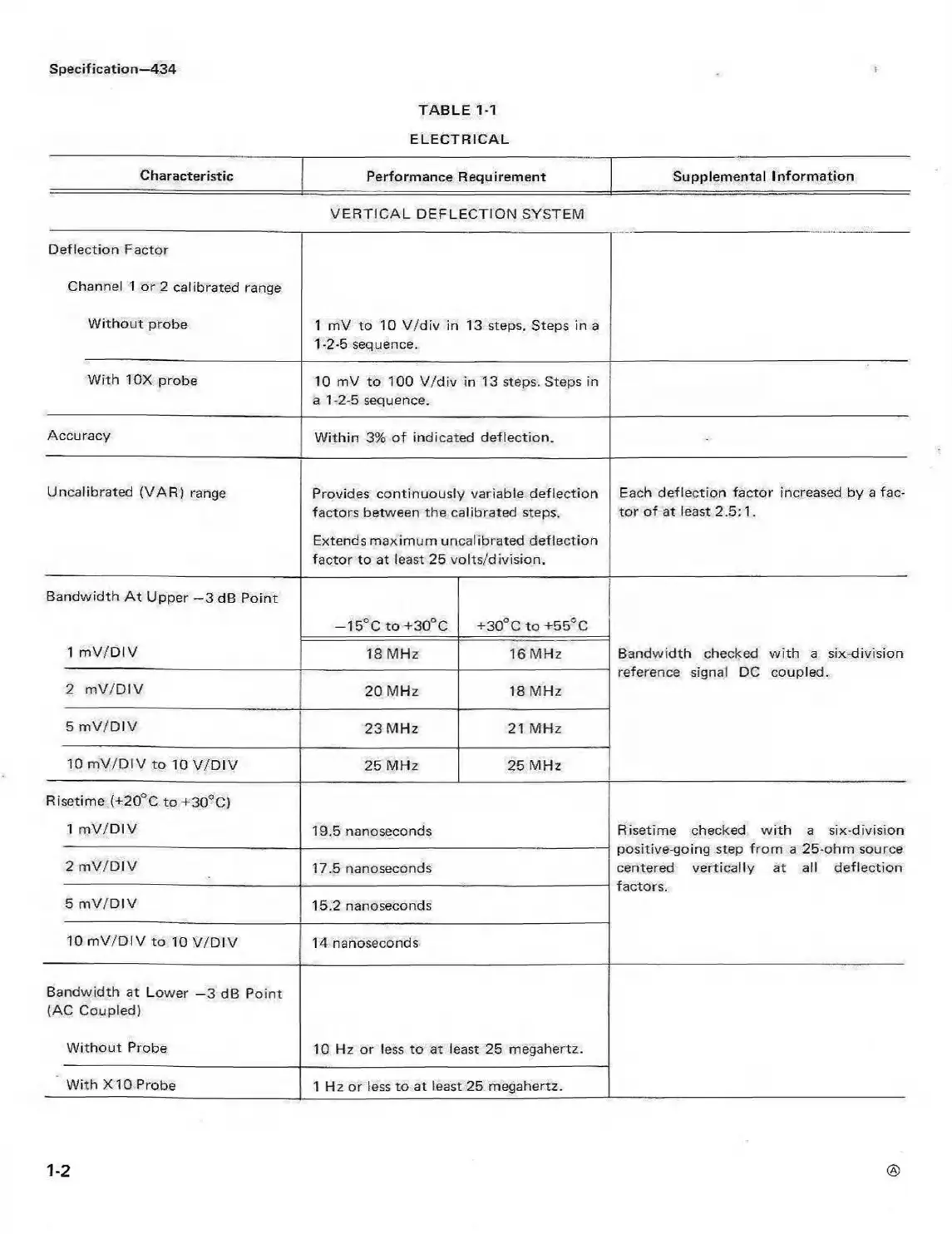

Specification—434
TABLE 1-1
ELECTRICAL
Characteristic
Performance Requirement
Supplemental Inform ation
VER TIC A L DEFLECTION SYSTEM
Deflection Factor
Channel 1 or 2 calibrated range
W ithout probe
1 mV to 10 V /div in 13 steps. Steps in a
1 -2-5 sequence.
With 10X probe
10 mV to 100 V /div in 13 steps. Steps in
a 1 -2-5 sequence.
Accuracy
Within 3% of indicated deflection.
Uncalibrated (VAR) range
Provides continuously variable deflection
factors between the calibrated steps.
Extends maximum uncalibrated deflection
factor to at least 25 volts/division.
Each deflection factor increased by a fac
tor of at least 2.5:1.
Bandwidth A t Upper -3 d B Point
1 m V /D IV
— 15°C to +30°C
+30°C to +55*C
Bandwidth checked w ith a six-division
reference signal DC coupled.
18 MHz 16 MHz
2 m V /D IV
20 MHz
18 MHz
5 m V /D IV
23 MHz 21 MHz
10 m V /D IV to 10 V /D IV
25 MHz 25 MHz
Risetime (+20°C to +30°C)
1 m V/D IV
19.5 nanoseconds
Risetime checked w ith a six-division
positive-going step from a 25-ohm source
centered vertically at all deflection
factors.
2 m V/D IV
17.5 nanoseconds
5 m V /D IV
15.2 nanoseconds
10 m V /D IV to 10 V /D IV
14 nanoseconds
Bandwidth at Lower —3 dB Point
(AC Coupled)
W ithout Probe
10 Hz or less to at least 25 megahertz.
With X10 Probe
1 Hz or less to at least 25 megahertz.
©
1-2
