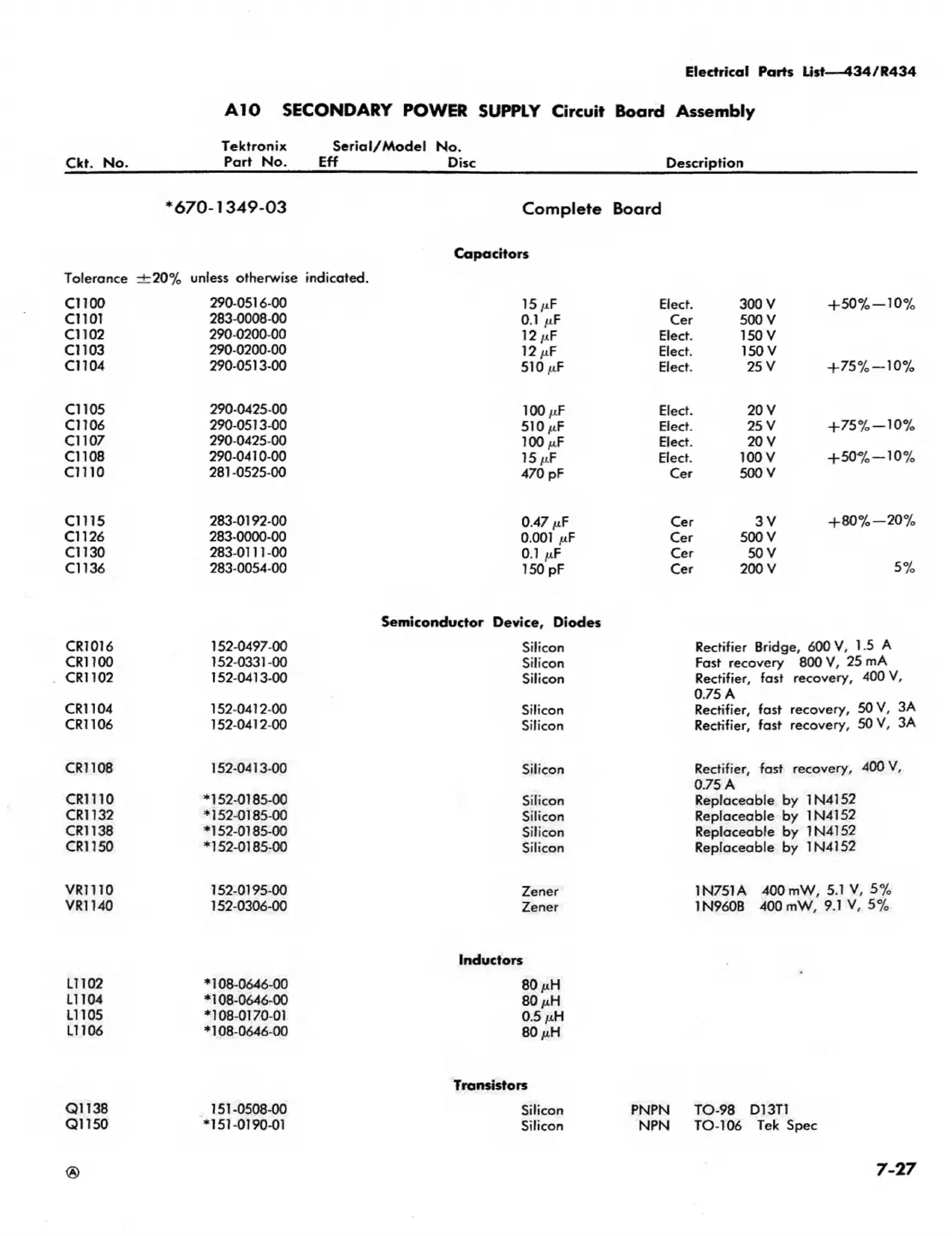

Electrical Parts List— 434/R434
A10 SECONDARY POWER SUPPLY Circuit Board Assembly
Tektronix S eria l/M o d e l N o .
Ckt. N o. ______________ Part N o . Eff ________________ Disc ____________________________ Description
*670-1349-03
Complete Board
Tolerance ±20% unless otherwise indicated.
Capacitors
C1100
290-0516-00
15 yxF Elect. 300 V
+50% —10%
Cl 101
283-0008-00
0.1 juF
Cer 500 V
Cl 102
290-0200-00
12mF
Elect. 150 V
Cl 103
290-0200-00
12 mF Elect.
150 V
0104 290-0513-00
510 /xF Elect.
25 V
+75% -10%
0105
290-0425-00
100 /xF
Elect. 20 V
0106 290-0513-00
510 /nF Elect.
25 V
+75% —10%
0107 290-0425-00
100 mF
Elect. 20 V
0108 290-0410-00
15 mF
Elect. 100 V
+50%—10%
C1110 281-0525-00
470 pF
Cer
500V
0115
283-0192-00
0.47 juF
Cer 3 V
+ 80%— 20%
0126
283-0000-00
0.001 fx F
Cer 500 V
0130
283-0111-00
0.1 /xF
Cer 50V
0136
283-0054-00
150 pF
Cer 200 V
5%
Sem iconductor Device, Diodes
CR1016 152-0497-00
Silicon
CR1100 152-0331-00
Silicon
CR1102
152-0413-00
Silicon
CR1104
152-0412-00
Silicon
CR1106
152-0412-00
Silicon
CR1108 152-0413-00
Silicon
CR1110
*152-0185-00
Silicon
CR1132
*152-0185-00
Silicon
CR1138 *152-0185-00
Silicon
CR1150 *152-0185-00
Silicon
VR1110
152-0195-00
Zener
VR1140
152-0306-00
Zener
Inductors
LI 102
*108-0646-00
80/xH
LI 104
*108-0646-00
80 /xH
LI 105
*108-0170-01
0.5 /xH
LI 106
*108-0646-00
80 /xH
Transistors
Q1138
151-0508-00
Silicon
Q1150
*151-0190-01
Silicon
Rectifier Bridge, 600 V, 1.5 A
Fast recovery 800 V, 25 mA
Rectifier, fast recovery, 400 V,
0.75 A
Rectifier, fast recovery, 50 V, 3A
Rectifier, fast recovery, 50 V, 3A
Rectifier, fast recovery, 400 V,
0.75 A
Replaceable by 1N4152
Replaceable by 1N4152
Replaceable by 1N4152
Replaceable by 1N4152
1N751A 400 mW, 5.1 V, 5%
1N960B 400 mW, 9.1 V, 5%
PNPN TO-98 D13T1
NPN TO-106 Tek Spec
7-27
