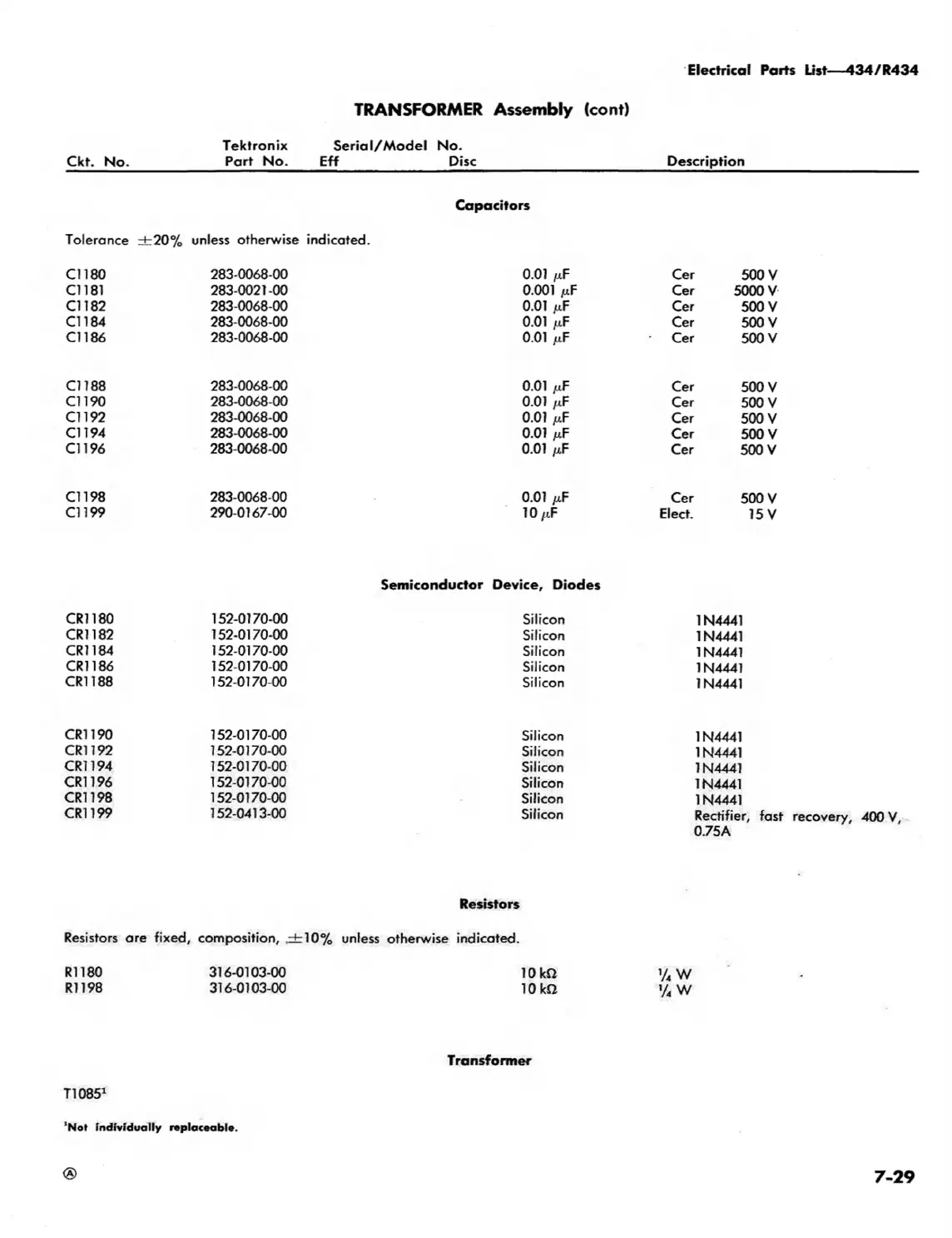

Electrical Parts List— 4 34/R 434
Ckt. No.
TRANSFORMER Assembly (cont)
Tektronix S erial/M odel No.
Part No. Eff Disc Description
Capacitors
Tolerance ± 2 0 %
unless otherwise indicated.
Cl 180
283-0068-00
0.01 /X F
Cer
500 V
Cl 181
283-0021-00 0.001 fx F
Cer
5000 V
Cl 182 283-0068-00 0.01 ix F
Cer
500 V
Cl 184 283-0068-00 0.01 ,xF Cer
500 V
Cl 186 283-0068-00 0.01 mF Cer
500 V
Cl 188
283-0068-00
0.01 mF
Cer
500 V
Cl 190
283-0068-00
0.01 fx F
Cer
500 V
Cl 192
283-0068-00
0.01 ix F Cer
500 V
Cl 194 283-0068-00
0.01 ix F
Cer
500 V
Cl 196
283-0068-00
0.01 ix F
Cer
500 V
Cl 198 283-0068-00 0.01 /X F
Cer
500 V
Cl 199 290-0167-00 10/rF
Elect.
15 V
Semiconductor Device, Diodes
CR1180 152-0170-00
Silicon
1N4441
CR1182 152-0170-00
Silicon
1N4441
CR1184
152-0170-00
Silicon
1N4441
CR1186 152-0170-00
Silicon
1N4441
CR1188 152-0770-00
Silicon
1N4441
CR1190 152-0170-00
Silicon
1N4441
CR1192 152-0170-00
Silicon
1N4441
CR1194 152-0170-00
Silicon
1N4441
CR1196 152-0170-00
Silicon
1N4441
CRT 198 152-0170-00
Silicon
1N4441
CR1199 152-0413-00
Silicon
Rectifier, fast recovery,
0.75A
Resistors
Resistors are fixed, composition, ,±10% unless otherwise
indicated.
R1180 316-0103-00 lO k fl % W
R1198 316-0103-00 10 kn % W
Transformer
T10851
'Na t Individually replaceable.
7-29
