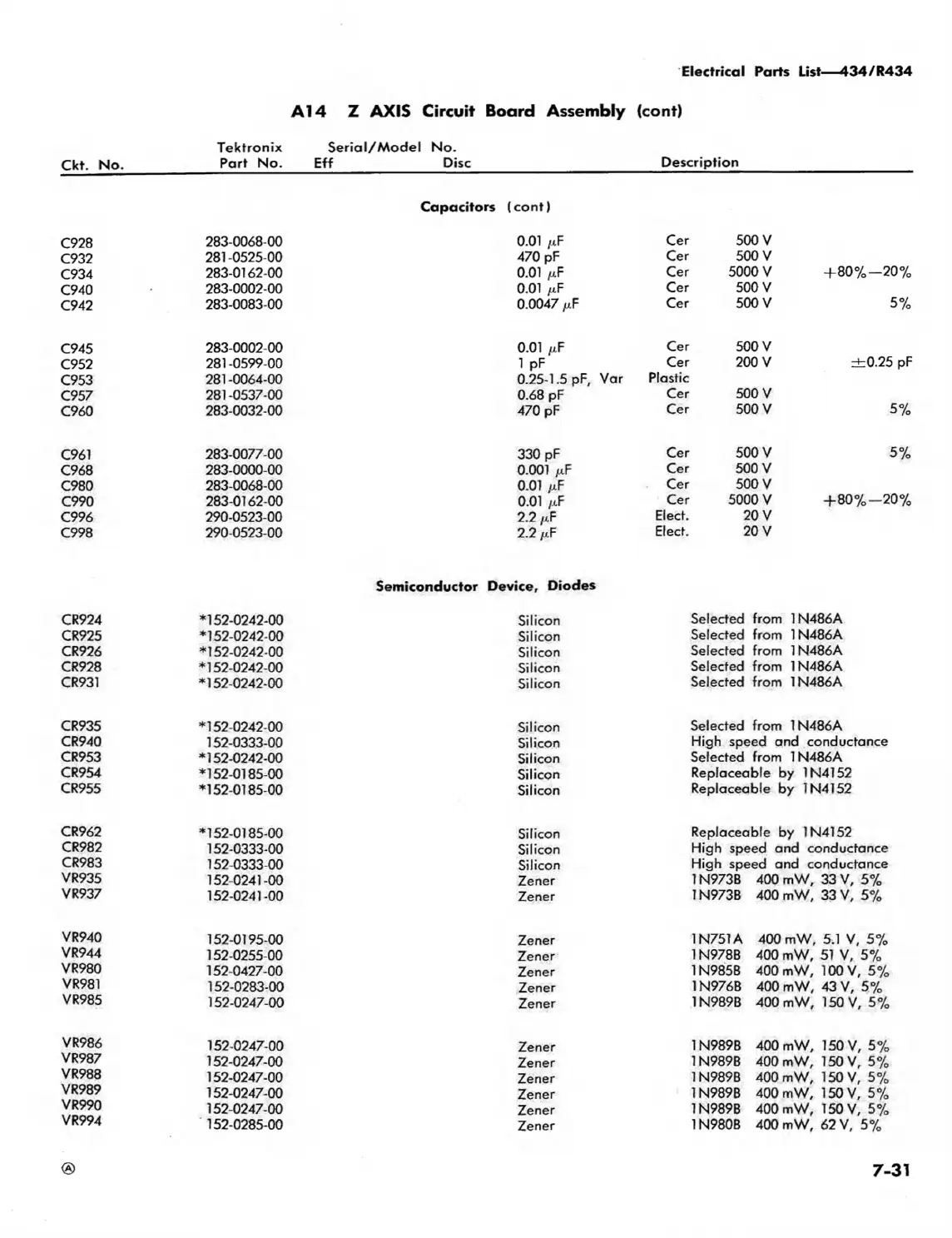

Electrical Parts List— 4 34 /R 434
Tektronix Serial/M odel No.
A 1 4 Z A XIS Circuit Board Assembly (cont)
Ckt. No.
Part No.
Eff
Disc
Description
Capacitors (cont)
C928
283-0068-00
0.01 /xF
Cer
500 V
C932
281 -0525-00
470 pF
Cer
500 V
C934
283-0162-00
0.01 /xF
Cer
5000 V
+8 0 % —20%
C940
283-0002-00
0.01 /x F
Cer
500 V
C942
283-0083-00
0.0047 MF
Cer
500 V
5%
C945
283-0002-00
0.01 mF
Cer
500 V
C952
281-0599-00
1 pF
Cer
200 V ±0.25 pF
C953
281 -0064-00
0.25-1.5 pF, Var
Plastic
C957
281 -0537-00
0.68 pF
Cer
500 V
C960
283-0032-00 470 pF
Cer
500 V
5%
C961
283-0077-00
330 pF
Cer
500 V
5%
C968
283-0000-00 0.001 MF
Cer
500 V
C980
283-0068-00
0.01 /x F
Cer
500 V
C990
283-0162-00
0.01 /xF
Cer 5000 V
+ 8 0 % -2 0 %
C996
290-0523-00 2.2 ,xF
Elect.
20 V
C998
290-0523-00
2.2 /xF
Elect.
20 V
Semiconductor Device, Diodes
CR924
*152-0242-00 Silicon
Selected
from 1 N486A
CR925
*152-0242-00
Silicon
Selected
from 1 N486A
CR926
*152-0242-00 Silicon
Selected
from 1 N486A
CR928
*152-0242-00
Silicon
Selected
from 1N486A
CR931
*152-0242-00 Silicon
Selected from 1N486A
CR935
*152-0242-00
Silicon
Selected from 1N486A
CR940
152-0333-00 Silicon
High speed and conductance
CR953
*152-0242-00 Silicon
Selected
from 1 N486A
CR954
*152-0185-00
Silicon
Replaceable by 1N4152
CR955
*152-0185-00 Silicon
Replaceable by 1N4152
CR962
*152-0185-00
Silicon
Replaceable by 1N4152
CR982
152-0333-00 Silicon
High speed and conductance
CR983
152-0333-00 Silicon
High speed and conductance
VR935
152-0241-00 Zener
1N973B 400 mW, 33 V, 5%
VR937
152-0241-00
Zener
1N973B 400 mW, 33 V( 5%
VR940
152-0195-00
Zener
1N751A
400 mW, 5.1 V, 5%
VR944
152-0255-00 Zener
1N978B 400 mW, 51 V, 5%
VR980
152-0427-00
Zener
1N985B 400 mW, 100 V, 5%
VR981
152-0283-00
Zener
1N976B
400 mW, 43 V, 5%
VR985
152-0247-00 Zener
1N989B 400 mW, 150 V, 5%
VR986
152-0247-00
Zener
1N989B 400 mW, 150 V, 5%
VR987
152-0247-00
Zener
1N989B 400 mW, 150 V, 5%
VR988
152-0247-00 Zener
1N989B 400 mW, 150 V, 5%
VR989
152-0247-00
Zener
1N989B 400 mW, 150 V, 5%
VR990
152-0247-00
Zener
1N989B 400 mW, 150 V, 5%
VR994
152-0285-00
Zener
1N980B
400 mW, 62 V, 5%
7-31
