Page 1 of 2

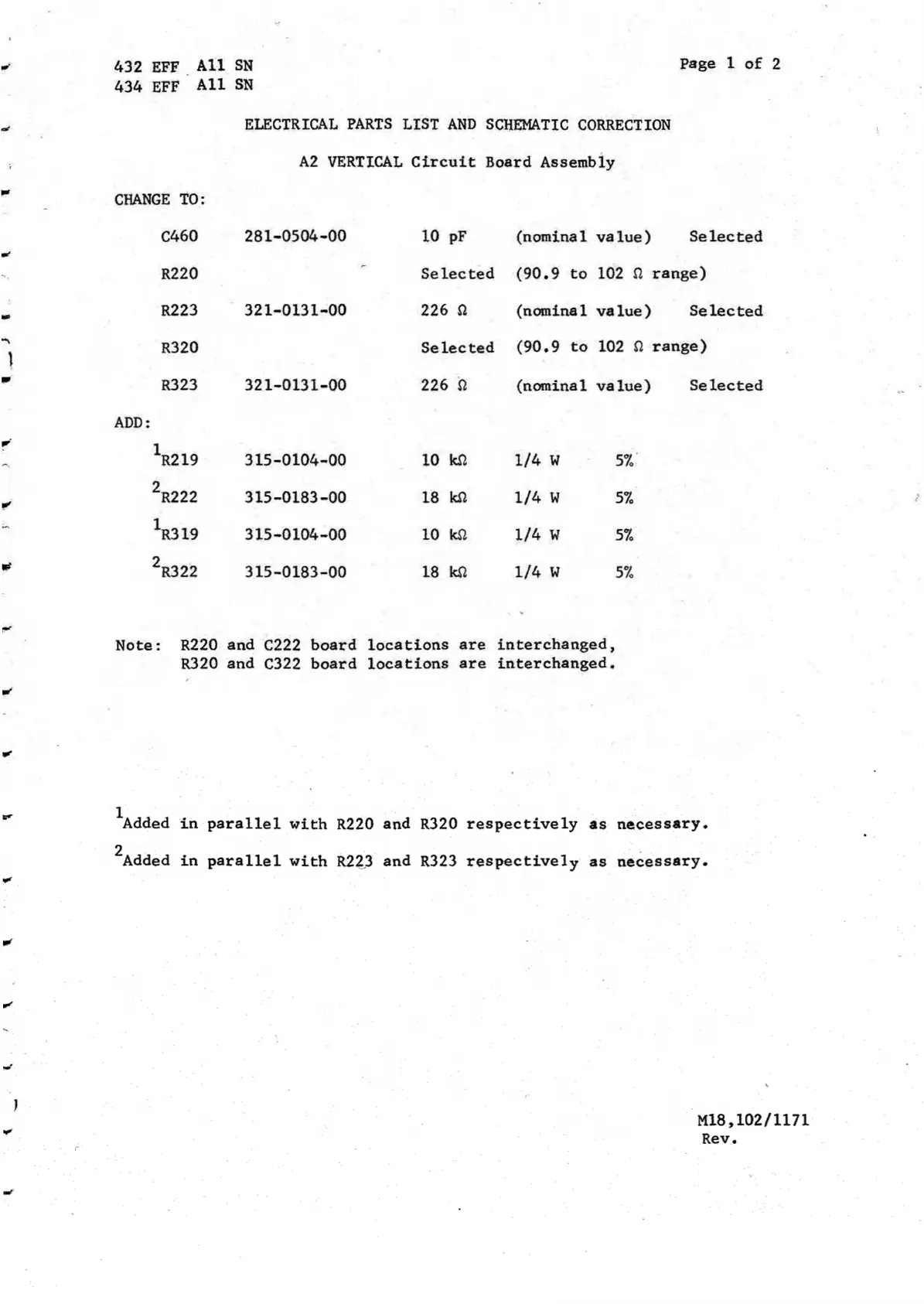

432 EFF All SN
434 EFF All SN
ELECTRICAL PARTS LIST AND SCHEMATIC CORRECTION
A2 VERTICAL Circuit Board Assembly
CHANGE TO:
C460
281-0504-00
10 pF
(nominal value) Selected
R220
Selected (90.9 to 102 0 range)
-
R223 321-0131-00
226 fl
(nominal value) Selected
**\
\
R320 Selected
(90.9 to 102 0 range)
R323
321-0131-00
226 0
(nominal value) Selected
ADD:
*
XR219 315-0104-00 10 kft
1/4 U 57.
*
2R222
315-0183-00 18 kfl 1/4 W 57.
XR319
315-0104-00 10 kfl 1/4 W 57.
n*
2R322
315-0183-00 18 kft
1/4 W 57.
Note: R220
and C222 board
locations are
interchanged,
R320 and C322 board locations are
interchanged.
Added in parallel with R220 and R320 respectively as necessary.
Added in parallel with R223 and R323 respectively as necessary.
M18,102/1171
Rev.
