432 EFF SN B060000-up
434 EFF SN B060000-up
CHANGE TO
*R83
CHANGE TO
(432)
(434)
CHANGE TO
ADD:
SECTION 9
(432)
(434)
Page 9-6
*Added as
Page 1 of 3

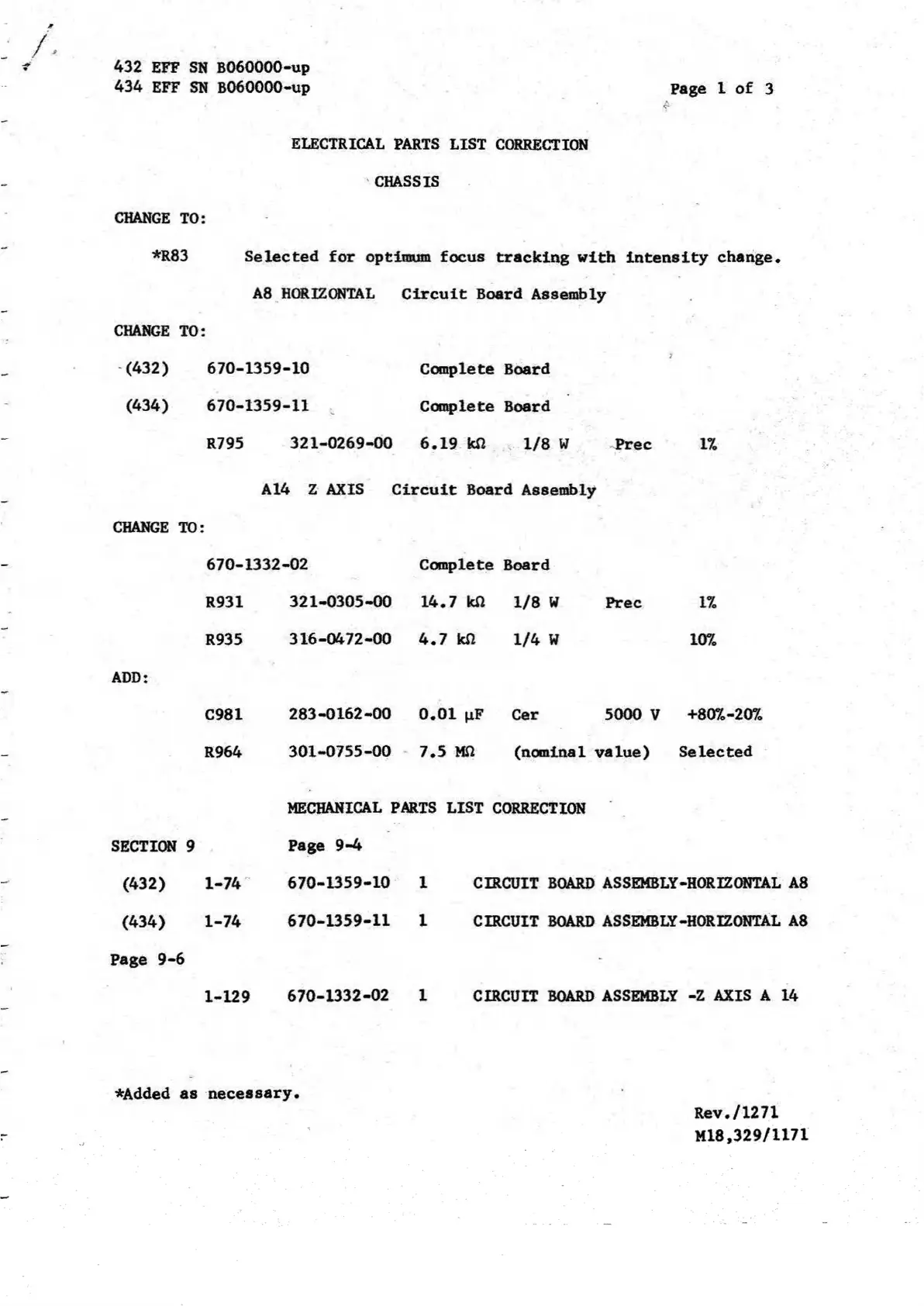

ELECTRICAL PARTS LIST CORRECTION
CHASSIS
Selected for optimum focus tracking with intensity change.
A8 HORIZONTAL Circuit Board Assembly
670-1359-10 Complete Board
670-1359-11 Complete Board
R795 321-0269-00 6.19 kfl 1/8 W Prec 1%
A14 Z AXIS Circuit Board Assembly
670-1332-02
Complete Board
R931
321-0305-00
14.7 kft
1/8 W Prec
1%
R935
316-0472-00
4.7 kfl
1/4 W
10%
C981
283-0162-00
0.01 nF
Cer
5000 V
+80%-20%
R964
301-0755-00
7.5 MO (nominal value)
Selected
MECHANICAL PARTS LIST CORRECTION
Page 9-4
1-74 670-1359-10 1 CIRCUIT BOARD ASSEMBLY-HORIZONTAL A8
1-74 670-1359-11 1 CIRCUIT BOARD ASSEMBLY-HORIZONTAL A8
1-129 670-1332-02 1 CIRCUIT BOARD ASSEMBLY -Z AXIS A 14
necessary.
Rev./1271
M18,329/1171
