Operating Basics

1-2 AFG3000 Series Arbitrary/Function Generators Reference Manual

Front Panel Controls

This section introduces you to the front panel controls of the instrument and

provides a brief overview on how to use the front panel key controls.

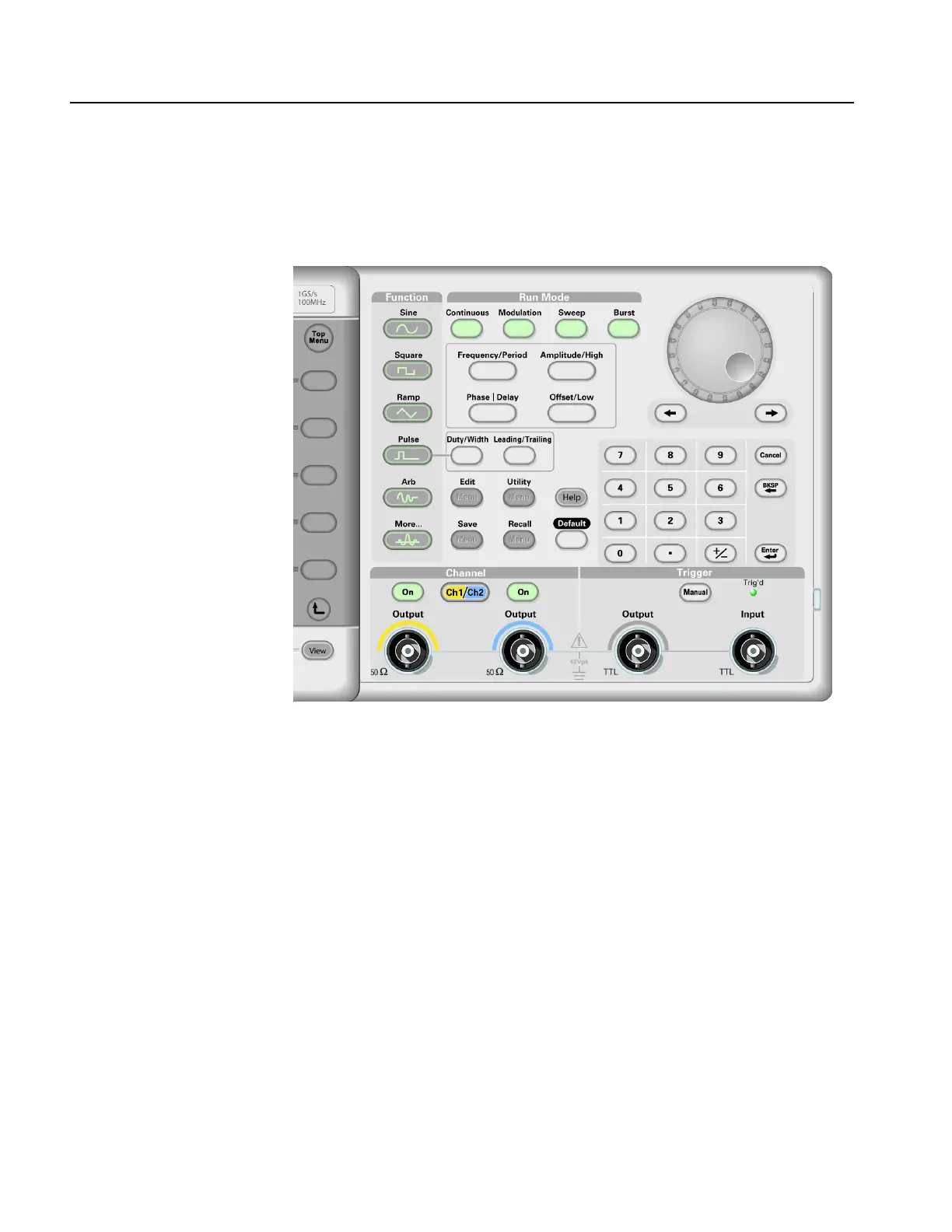

Figure 1-2: Front panel controls

The AFG3000 Series Arbitrary/Function Generators front-panel key controls are

divided into the following categories:

 Action buttons

 Menu buttons

 State buttons

 Function buttons

 Shortcut buttons
