Operating Basics

1-14 AFG3000 Series Arbitrary/Function Generators Reference Manual

Waveform Parameters and Numeric Input

This section explains how to set or change the waveform parameters of the

arbitrary/function generator using the front-panel controls or bezel menu selection.

Changing Parameters

Using the Bezel Menu

The arbitrary/function generator outputs a sine waveform of 1 MHz frequency with

p-p

by default. You can use the following two methods to set or change the

waveform parameters:

 Using the bezel menu selection

 Using the front-panel shortcut buttons (see page 1-17)

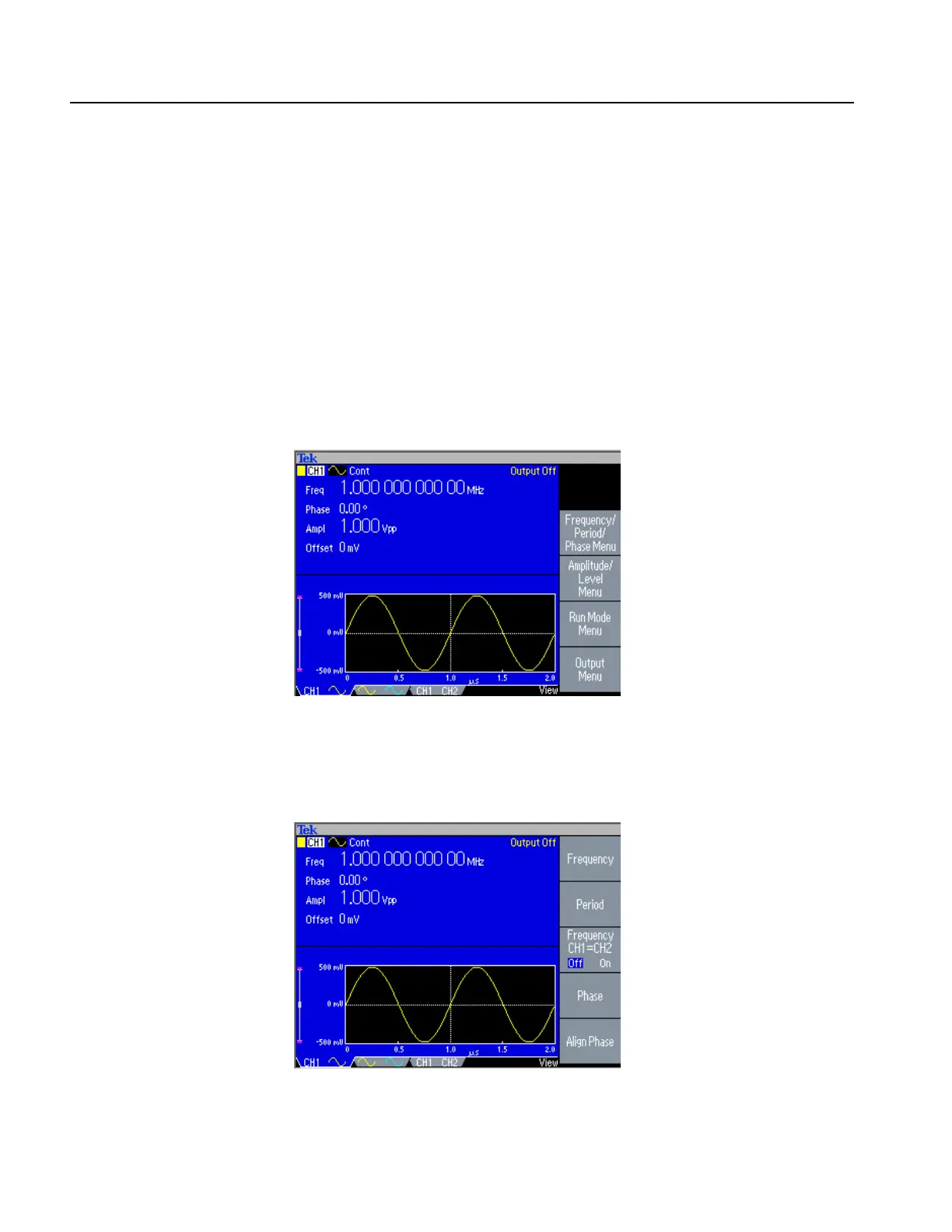

Figure 1-11 shows the default display of sine waveform.

Figure 1-11: Default display

Select the Frequency/Period/Phase Menu bezel button from the default display,

you can change the values of frequency, period, or phase.

Figure 1-12: Frequency/Period/Phase Menu

Default Chapter5
