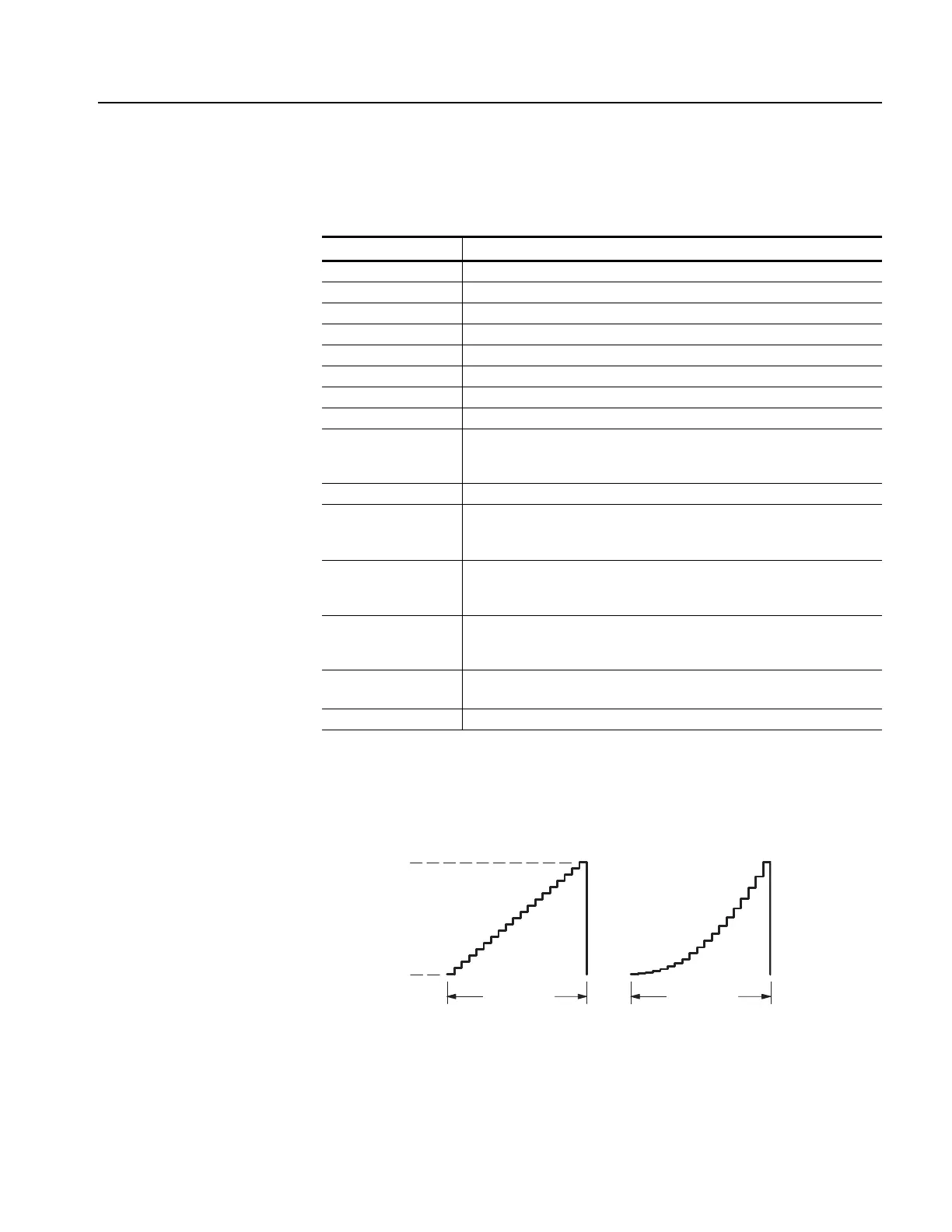

AFG3000 Series Arbitrary/Function Generators Reference Manual 2-9
Sweep Parameter Menu
Table 2-7 shows the Sweep Parameter Menu.
The sweep function outputs a waveform with the output signal frequency varying
linearly or logarithmically.
Figure 2-1: Sweep type
Table 2-7: Sweep Parameter Menu
First Level Description
Start Frequency Numeric input. Sets start frequency.
Stop Frequency Numeric input. Sets stop frequency.
Sweep Time Numeric input. Sets sweep time.
Return Time Numeric input. Sets return time.
-more- (1 of 3)
Center Frequency Numeric input. Sets center frequency.
Span Numeric input. Sets frequency span.
Hold Time Numeric input. Sets hold time.
Ty p e
Linear
Logarithm
Selects sweep type (Linear or Logarithm). See Figure 2-1.
-more- (2 of 3)
Mode
Repeat
Trigger
Selects sweep mode (Repeat or Trigger).
Source
Internal
External
Selects trigger source (Internal or External).
Slope
Positive
Negative
Selects trigger slope (Positive or Negative). Available only when you
select External as a trigger source.
Trigger Interval Numeric input. Sets trigger interval.
Available only when you select Internal as a trigger source.
-more- (3 of 3)
Start frequency
Stop frequency
Sweep time
Sweep time
Linear sweep
Logarithmical sweep
