6Ć38
2. Lift the A2 Display Control board up toward the top of the chassis,
sliding the board out of the board retainers. See Figure 6Ć22.
%$! #
3. ReĆinstall the A2 Display Control board by sliding the board into the
board retainers.
4. ReĆinstall all cables at connectors J80, J82, and J84.
5. Install all previously removed components.
The procedures that follow describe how to remove and install the Power
Supply module.
Ċ This procedure requires that the
following procedures be performed first:
H Rear Cover Removal
H Cabinet Removal
" # !
1. Set the oscilloscope so its top is down on the work surface.

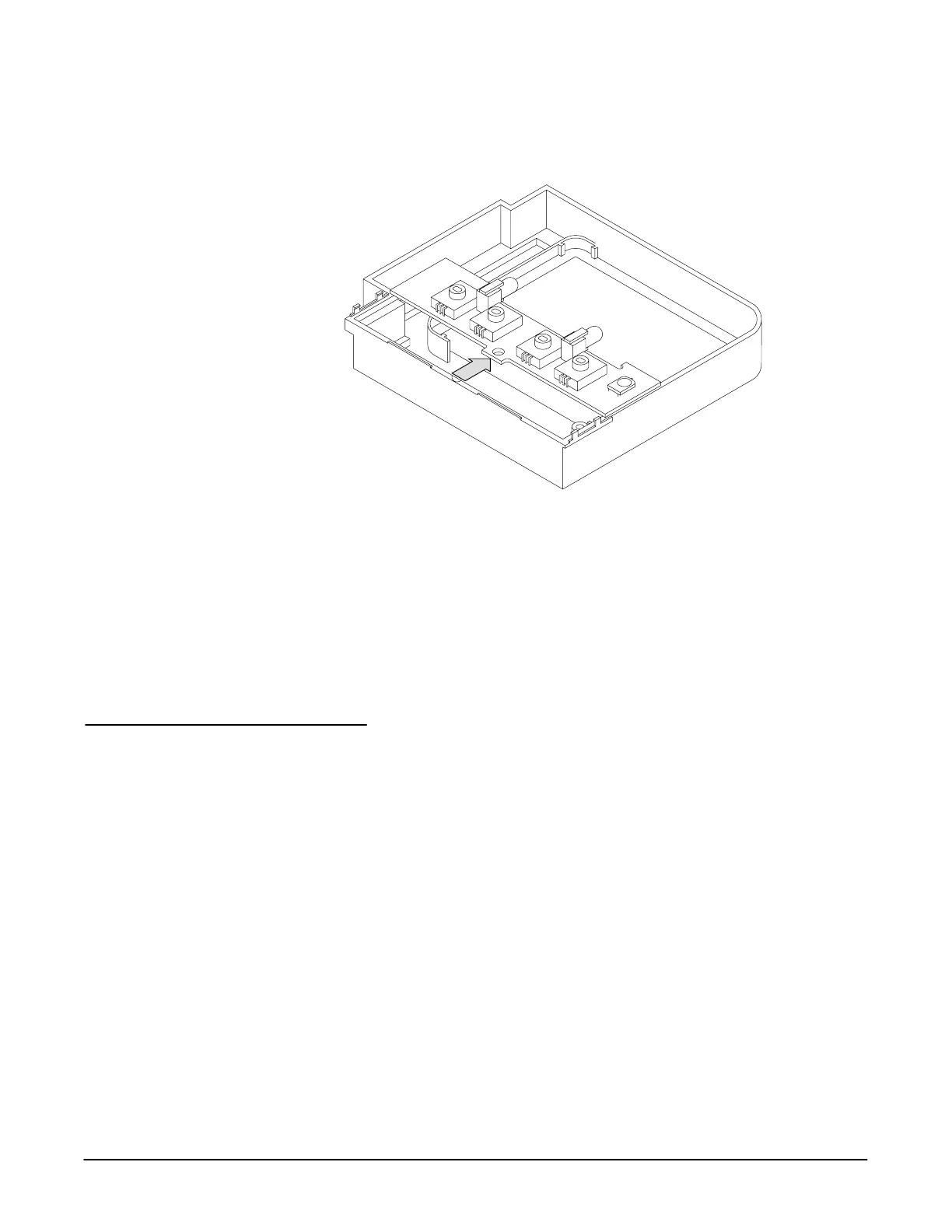

2. Disconnect the power button shaft from the power switch on the Power
Supply module. See Figure 6Ć23.
" #
