Tektronix TDS2024 User Manual

TDS2CMA Communications Module
TDS1000/2000-Series Digital Oscilloscope User Manual
131
Sending Screen Data to an External Device
The TDS2CMA module lets you send screen data t o an external
device, such as a controller, printer, or comput er.

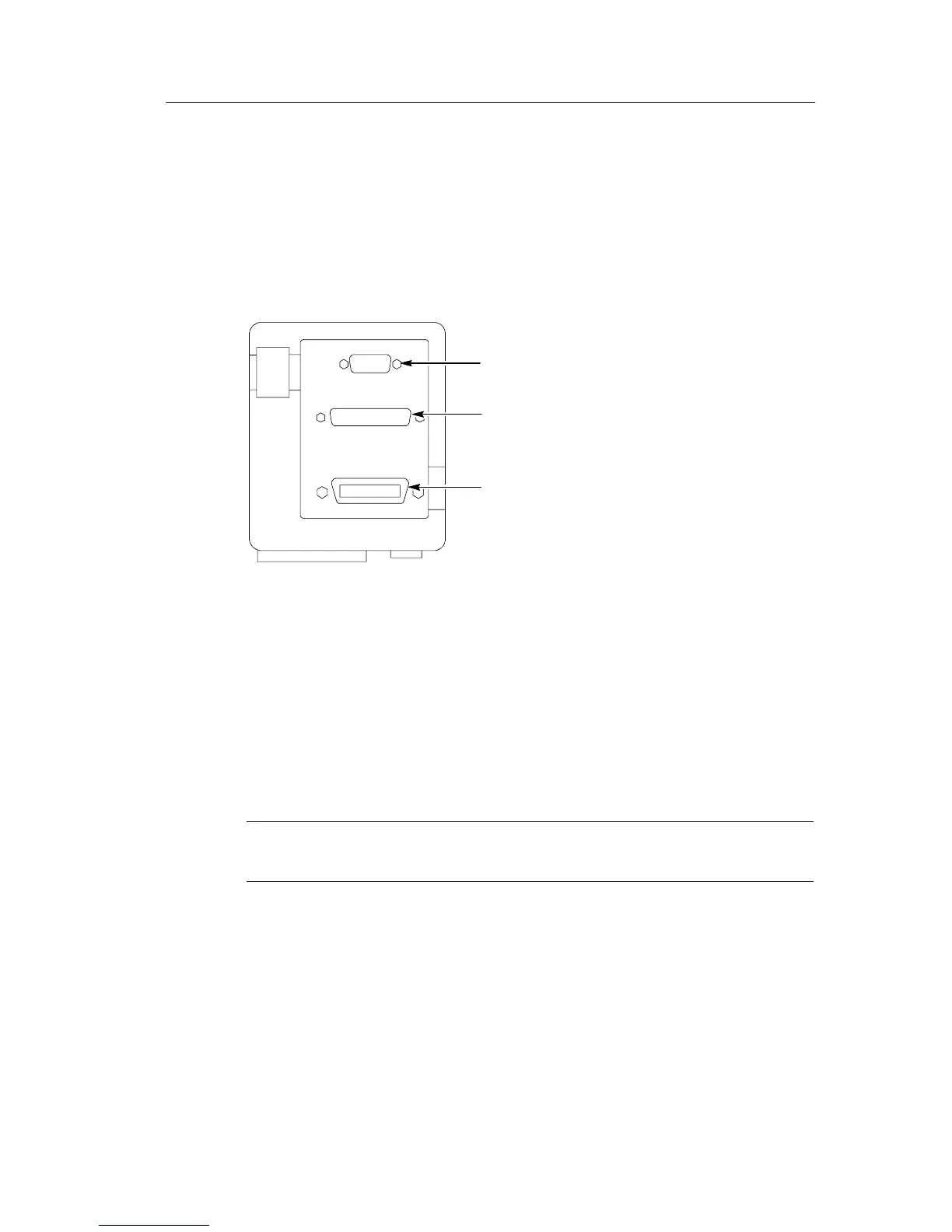

RS-232 connector
GPIB connector
Centronics connector
Printer Setup
To setup the module, do the following:
1. Power on the oscilloscope.
2. Push UTILITY
" Options " Printer Setup.
3. Push the option buttons to change the settings to match those of
your printer. The next table lists the settings you can change.
NOTE. The oscilloscope stores these settings until you change them,
even if you push the DEFAULT SETUP button.

Tektronix TDS2024 Specifications

General

Channels	4
Bandwidth	200 MHz
Sample Rate	2 GS/s
Record Length	2.5k points
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Display Resolution	320 x 240 pixels
Math Functions	Add, Subtract, Multiply, Divide, FFT
Input Coupling	AC, DC, GND
Trigger Modes	Auto, Normal, Single
Trigger Types	Edge, Video, Pulse
Connectivity	USB
Input Impedance	1 MΩ
Maximum Input Voltage	300 V
Interface	USB
Power Supply	100 to 240 V
Dimensions	326 mm x 158 mm x 124 mm
