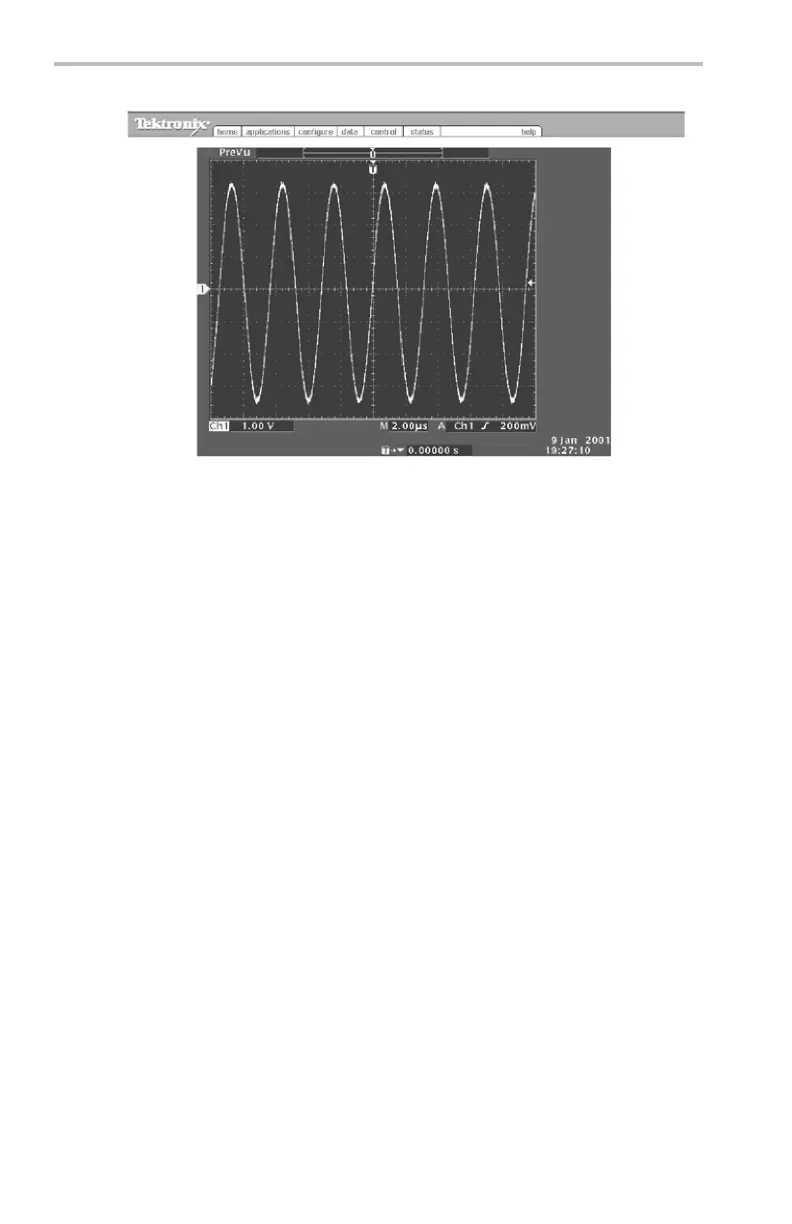

Appendix F: Ethernet Setup
Entering the E
thernet Network Settings
The procedure for entering the oscilloscope Ethernet network parameters depends
on your network configuration.
Networks Tha
t Sup port
DHCP and BOOTP
If your network supports DHCP/BOOTP, follow these steps:
1. Push the Utility front panel button.
2. Push the System menu button to select I/O.
3. Push the Et
hernet Network Settings screen button.
4. Push the DHCP/BOOTP side button to select On. The screen displays the
clock ico
n while it is talking with the network to obtain an IP address for the
oscilloscope. This step should only take a few moments, but the actual time
will vary depending on your network. The clock icon disappears when the
task is finished.
5. To verify that the network assigned an IP address to the o sc illoscope, push the
Change Instrument Settings side button to display the oscilloscope ethernet
settings. The oscilloscope IP address field should now be filled in.
NOTE. If the oscilloscope IP address field is blank, then the oscilloscope was
not a
ble to obtain an IP address from the network. Contact your network
administrator for help, or use the next procedure to manually enter the Ethernet
settings.
Networks That Do Not
Support DHCP and BOOTP
If your n etwork does not support DHCP or BOOTP protocols, you will need to
manually enter the oscilloscope network settings. To enter the Eth ernet network
settings information from section 1 of the form, follow these steps:
1. Push the Utility front panel button.
2. Push the System bottom button to select I/O.
3. Push the Ethernet Network Settings bottom button.
4. Push the Change Instrument Settings side button. The oscilloscope displays
the Instrument Setup screen.
5. Use the Instrument Setup screen menu items and controls to enter the
network settings information from section 1 of the form. (See page 153, The
Instrument Setup Screen.)
6. When you are done entering the Ethernet network settings, push the OK
Accept side button to store the settings in your oscilloscope.
7. If the form shows that DHCP or BOOTP are supported on your network, push
the DCHP/BOOTP side button to select On.
150 TDS3000C Series Oscilloscope User Manual
