Getting Started
1. Edge Trigger controls. Push these screen buttons to set trigger parameters
for edge
trigger.
2. Trigger controls if either B trigger or video trigger is selected. Logic and
Pulse tr
igger controls are not available through the QuickMenu.
3. Cursor control. Push this screen button to turn on cursors and select the cursor
type. P
ush the Select button to toggle between the two cursors to select the
active cursor. Use the general purpose knob to move the active cursor.
4. Acqui
sition c ontrols. Push these screen buttons to set acquisition parameters.

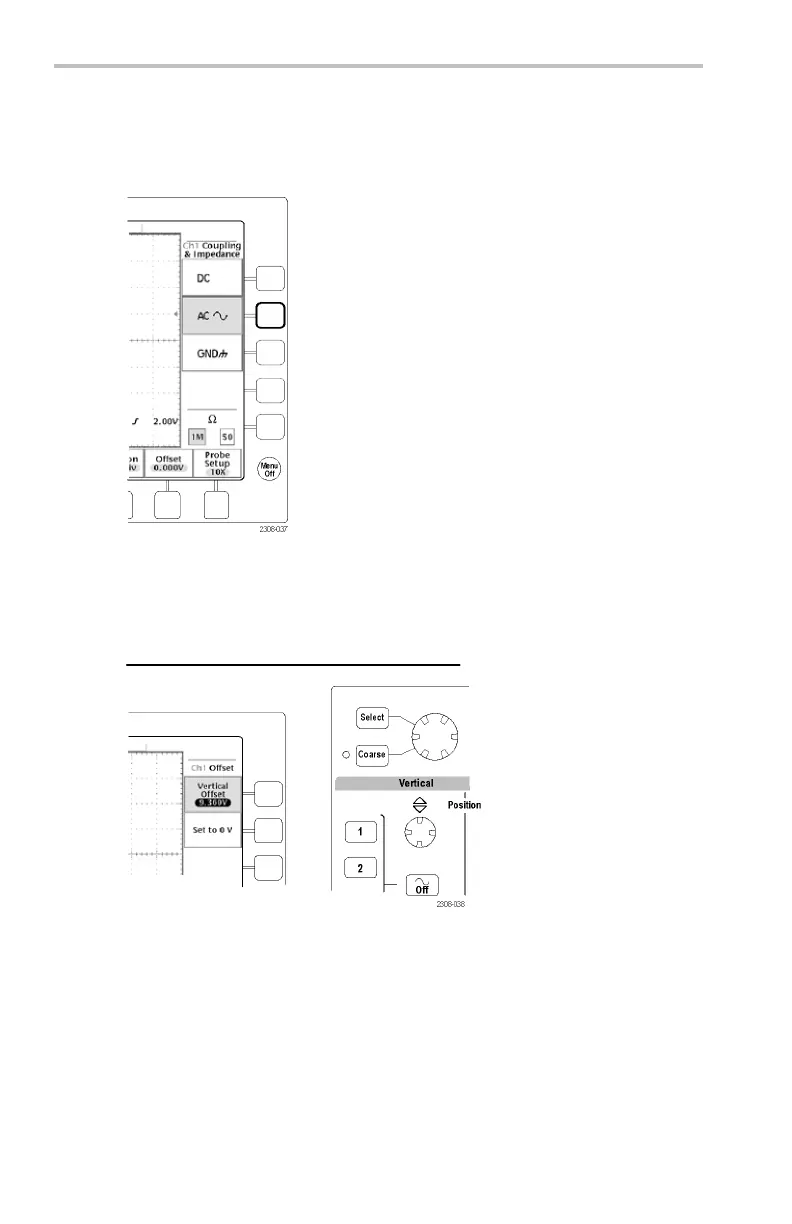

5. Channel vertical controls. Push these screen buttons to set vertical controls
for t
he selected channel. Use the channel 1, 2, 3, 4, and the Math and Ref
buttons to select the channel you want to control.
6. Ver
tical controls if either the m ath waveform or a reference w aveform is
selected.
7. Me
nu. Push this screen button t o select a specific QuickMenu display if more
than one is available.
NOTE. Items in the Scope QuickMenu not mentioned above are also contained
in the regular display. (See page 20.)
Other QuickMenus. Some optional application packages include a custom
QuickMenu display. Those QuickMenus contain specific features that are
important for the application.
22 TDS3000C Series Oscilloscope User Manual
