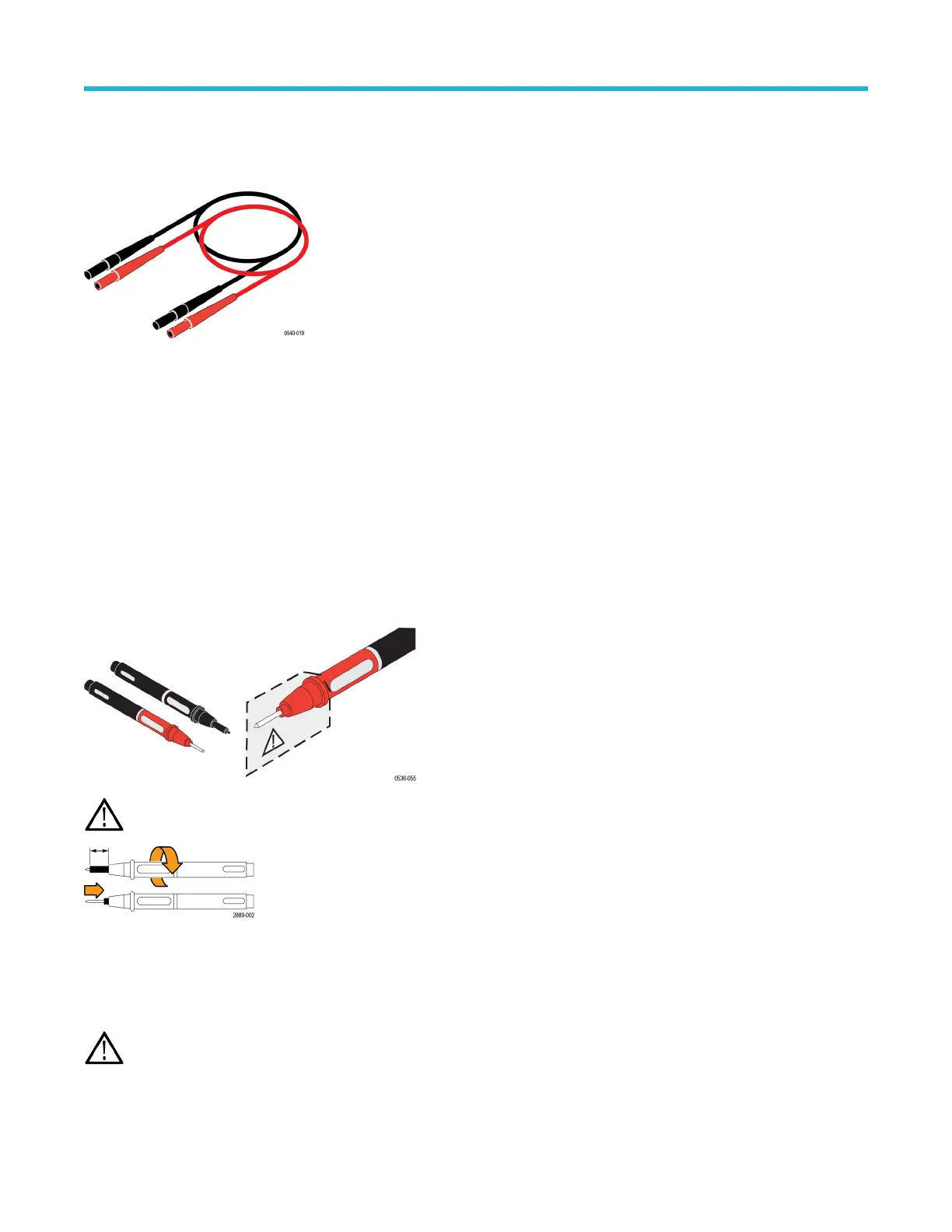

Extender Leads
These cables extend the reach of the probes by 1.0 m. The banana ends connect to all of the clip accessories that are included with the
probes.
Maximum ratings: 2300 V CAT I. See the Specifications for the Over-V
oltage Transient (OVT) rating for the probe that you are
using. Typical characteristics on page 40.
1000 V CAT III
One pair of extender leads are included with the probes.
Reorder Tektronix part number:196-3523-xx (one pair)
Handheld Probes (TP175)
These probes plug onto the banana input leads and extender leads. The tips are threaded to accept tip accessories. The insulator sheath
at the probe tip extends and retracts into CAT III and CAT IV-rated spacings. Twist the probe body past the detent at each end of the twist
to lock the probe into the CAT setting.
The insulator sheath at the probe tip extends and retracts into CAT III and CAT IV-rated spacings. Twist the probe body past the detent at
each end of the twist to lock the probe into the CAT setting.
WARNING: Always verify that the probe body is locked into position before taking measurements. Do not use in the unlocked
neutral position.
Maximum ratings: 1000 V CAT II
1000 V CA
T III
10 A
One pair of handheld probes are included with the probes.
Note: The TP175 must be ordered through Fluke.
