Pogo Pin Tip Adapters and Tips

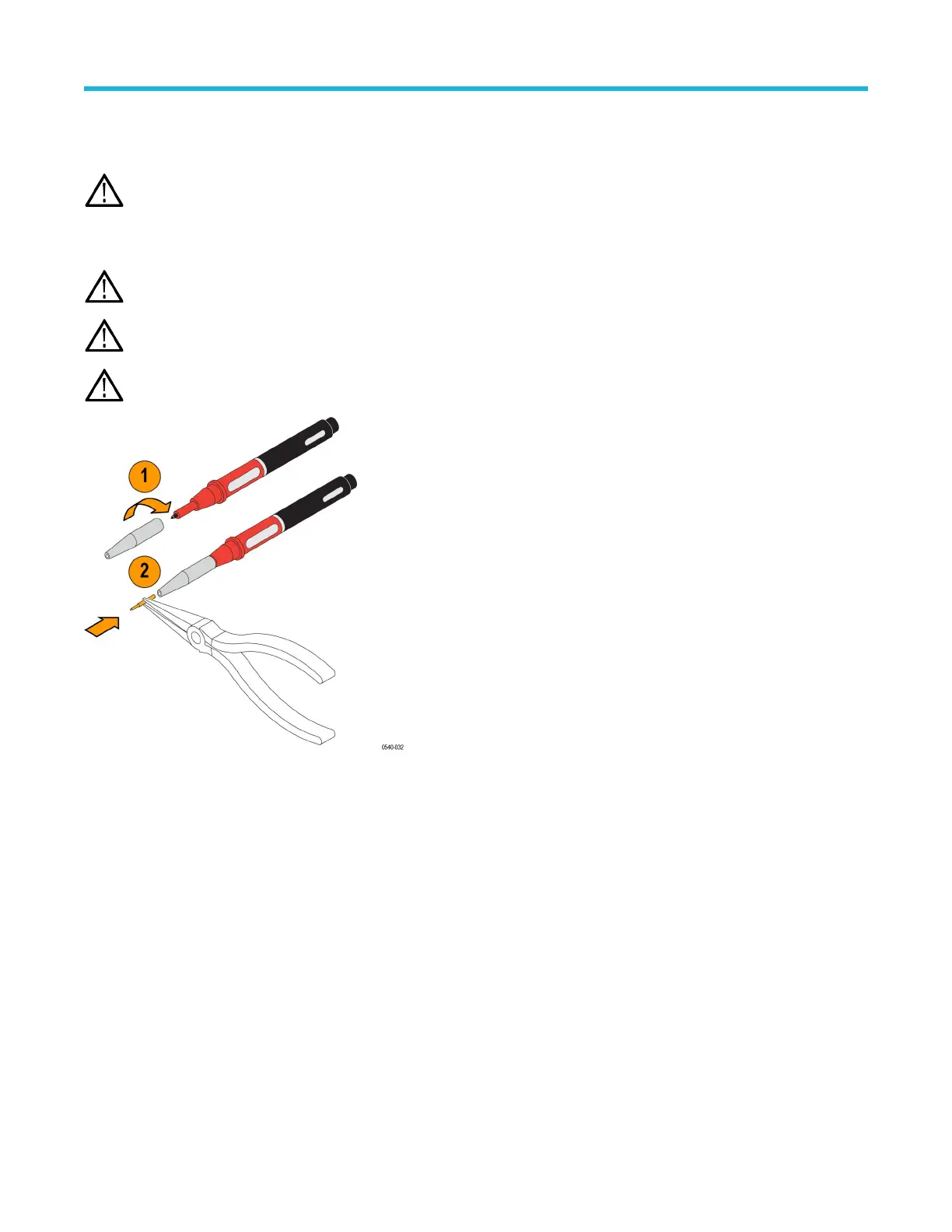

These insulated adapters hold pogo pins and screw on to the threaded tips of the TP175 handheld probes.
WARNING: T
o prevent electrical shock, tighten the pogo pin tip adapter completely to the TP175 probe.
Two pairs of pogo pin types are included with the adapters; one pair have sharp, cone points and the other pair have serrated edges for
embedding in soft conductors.
WARNING: The pogo pins have very sharp points. T
o prevent injury, handle the pins carefully when you install and remove them.
WARNING: T
o prevent risk of arc flash, ensure that the pogo pin is completely inserted into the adapter. Verify that the exposed
metal portion of the tip is 19 mm (0.75 in) or less.
WARNING: The probe input rating is derated to 150 V CA
T II, 1 mA, when used with the THDP and TMDP series probes. Do not
use this pogo pin adapter to measure voltages that exceed this rating.
Maximum ratings: 150 V CAT II
1 mA
Reorder Tektronix part number: 020-3107-xx (includes 2 Tip Adapters, 2 Cone-Tip Pogo Pins, and 2 Serrated-Tip Pogo Pins)
