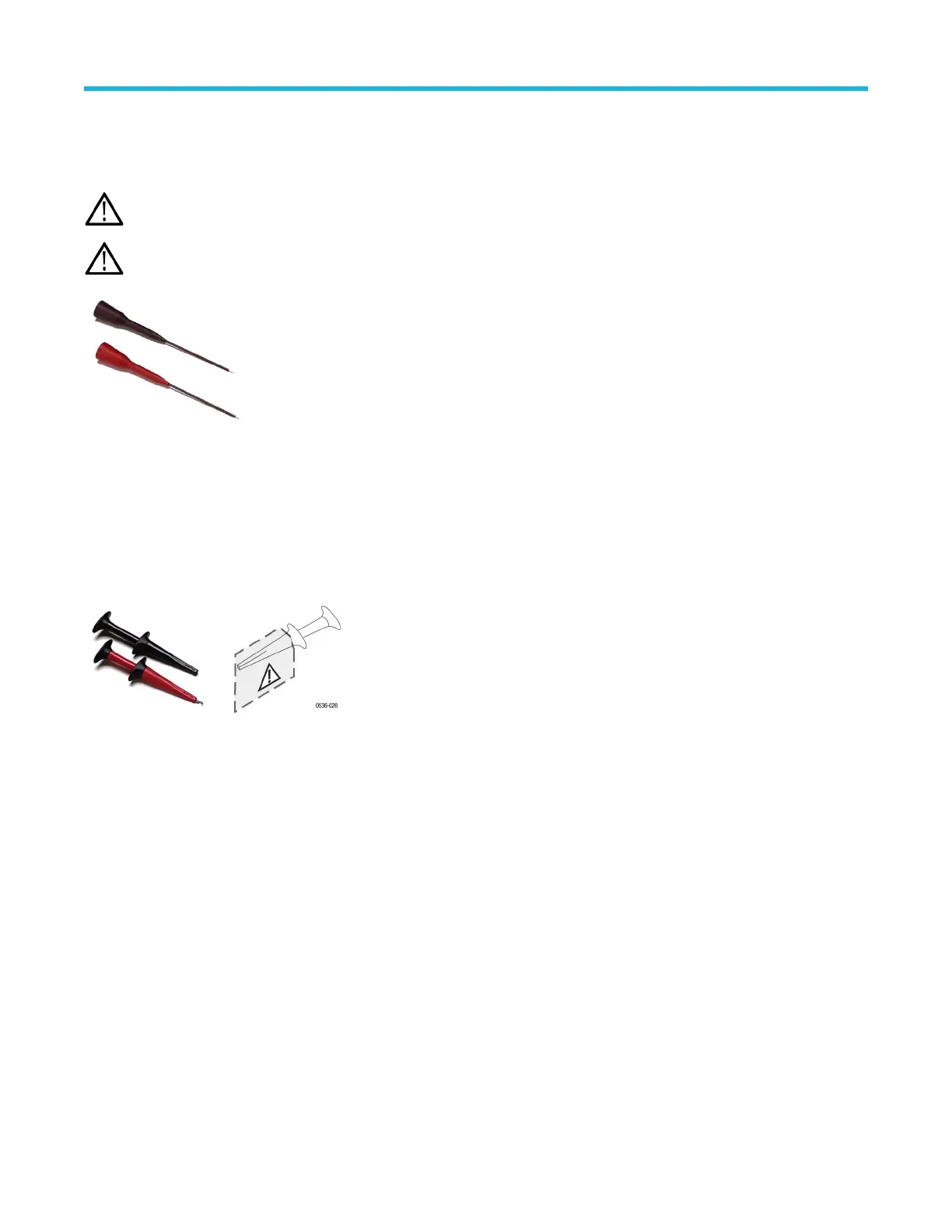

Extended Test Probe Adapters
These adapters screw on to the threaded tips of the handheld probes. Use these adapters to reach into dense circuitry
. The sharp tips can
contact small component leads and circuit board features.
WARNING: The probe input rating is derated to 150V CA
T II, 1 mA, when used with the THDP and TMDP series probes. Do not
use this extended probe adapter to measure voltages that exceed this rating.
WARNING: The tip on this adapter is very sharp. T
o prevent injury, do not touch the tip.
Maximum ratings: 300 V CAT II
3 A
Reorder Tektronix part number: 012-1724-xx (one pair)
Hook Clips (AC280-FL)
Plug the probe test leads into the banana plug connectors. Squeeze the grips to expose the hook clip and then clasp it around the circuit
test point.
Maximum ratings: 1000 V CAT III
3 A
One pair of hook clips are included with the probes.
Reorder T
ektronix part number: AC280-FL (one pair)
Accessories and options
High Voltage Differential Probes THDP0100/0200 and TMDP0200 User Manual 29
