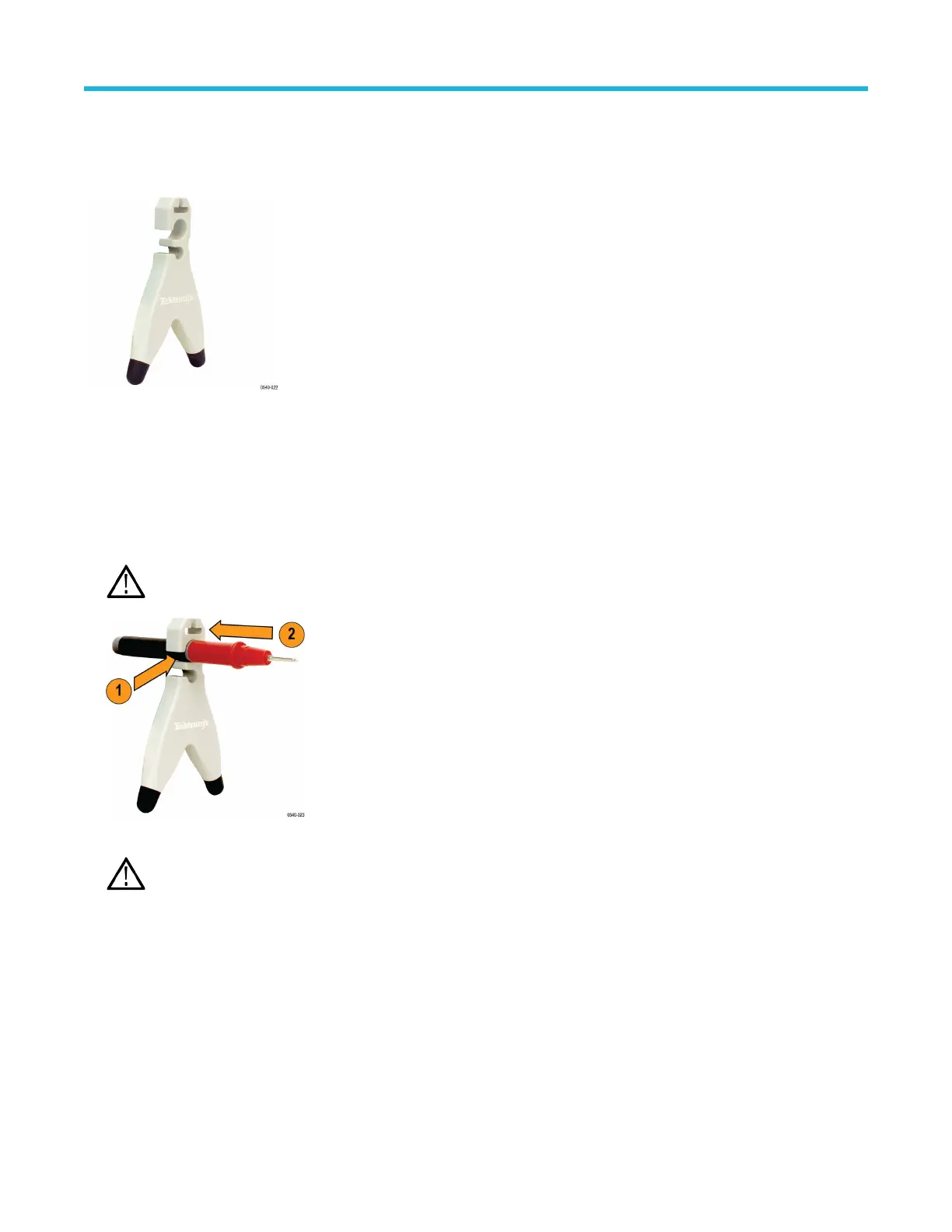

TPH1000 probe holder
The TPH1000 probe holder allows you to make a hands-free connection when using the handheld probes included in the accessory kit.
The probe holder can also be used with many other T
ektronix probes.
You have two options for taking hands-free differential measurements:
•
You can use the handheld probes with two TPH1000 probe holders (required if the test points are >1 inch apart).
• For test points <1 inch apart, use the handheld probes with the THV-Browser (shown on the following page).
To use the probe holder, do the following:
1. Insert the probe into one of the holder openings so that the Tektronix logo faces the circuit under test.
2. Slide the probe forward to secure it.
CAUTION: T
o avoid personal injury, always insert and remove probes by gripping the handheld section of the probe.
3. Position the base of the probe holder on your circuit where it can maintain stability while contacting the test point.
WARNING: Do not use the probe holder without the rubber feet; internal metal would be exposed which presents a shock
hazard.
Accessories and options
High Voltage Differential Probes THDP0100/0200 and TMDP0200 User Manual 31
