TSA-200 / TSA-200XT / TSA-240 / TSA-240XT

Page 40 of 79

11.10 Connecting to a Supervising Control Panel

In certain cases, there is a requirement to connect the TSA-200 product family to s

supervising control panel. It is possible to connect the TRA-1 adapter module to the

TSA-200 product family Alarm and Fault relays, to a zone in a conventional control panel

or an input module (ADR-812 or ADR-818), which are connected to an ADR-3000

analog addressable control panel.

The adapter simulates the behavior of a regular detection zone.

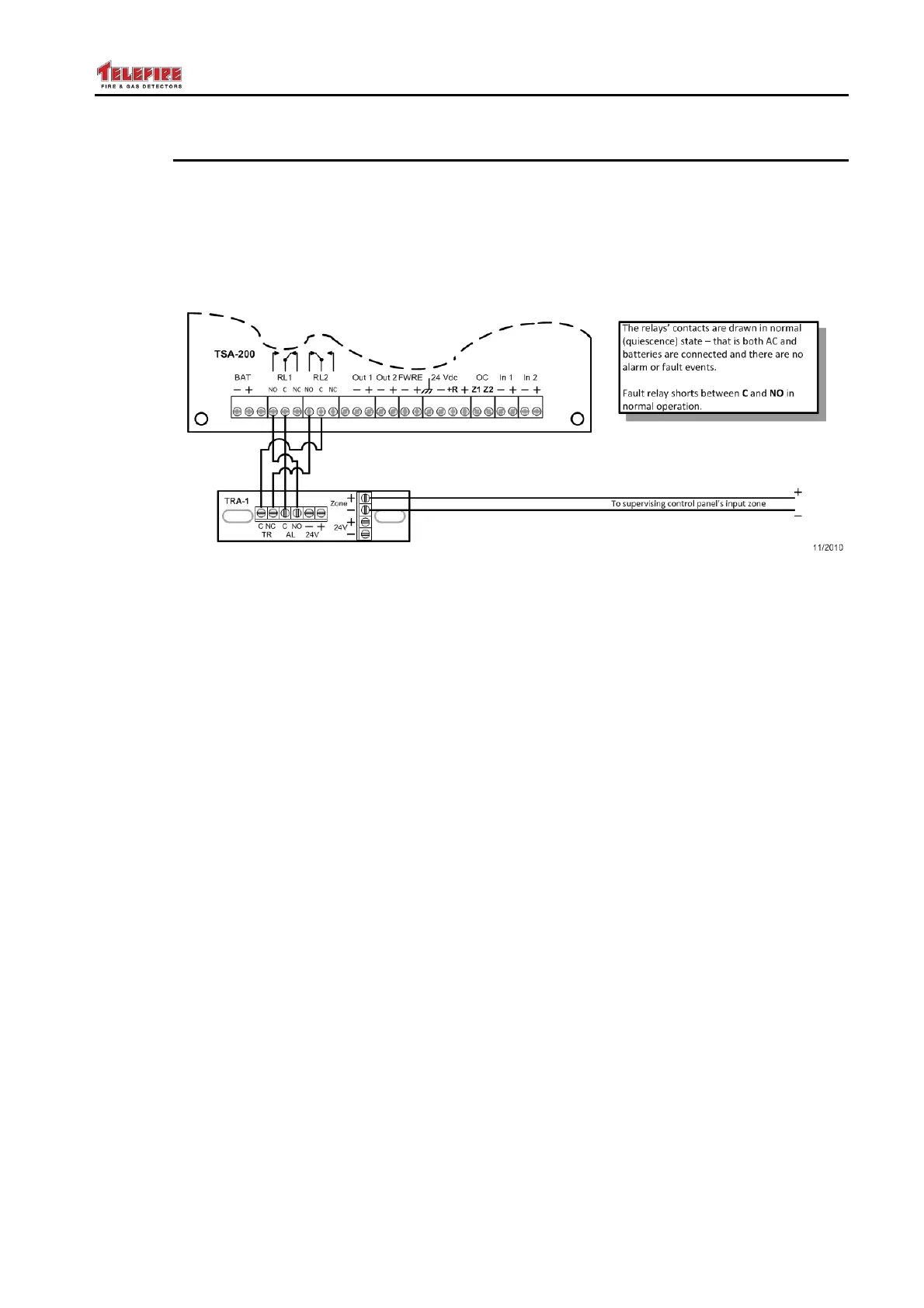

Figure 16 Connecting a TSA-200 product family to a supervising control panel
