FN990
Family Hardware Design Guide
1VV0301752 Rev. 3 Page 61 of 92 2022-10-07
Not Sub
j
ect to NDA
UTRA Band
WCDMA FDD B8 PRx/Tx0 NA DRx NA
WCDMA FDD B19 PRx/Tx0 NA DRx NA
Table 41: WCDMA for Antenna Configuration
Antenna Connector
The FN990 Family is equipped with a set of 50 Ω RF MHF-4 Receptacle from I-PEX
20449-001E.
For more information about mating connectors, please consult https://www.i-pex.com

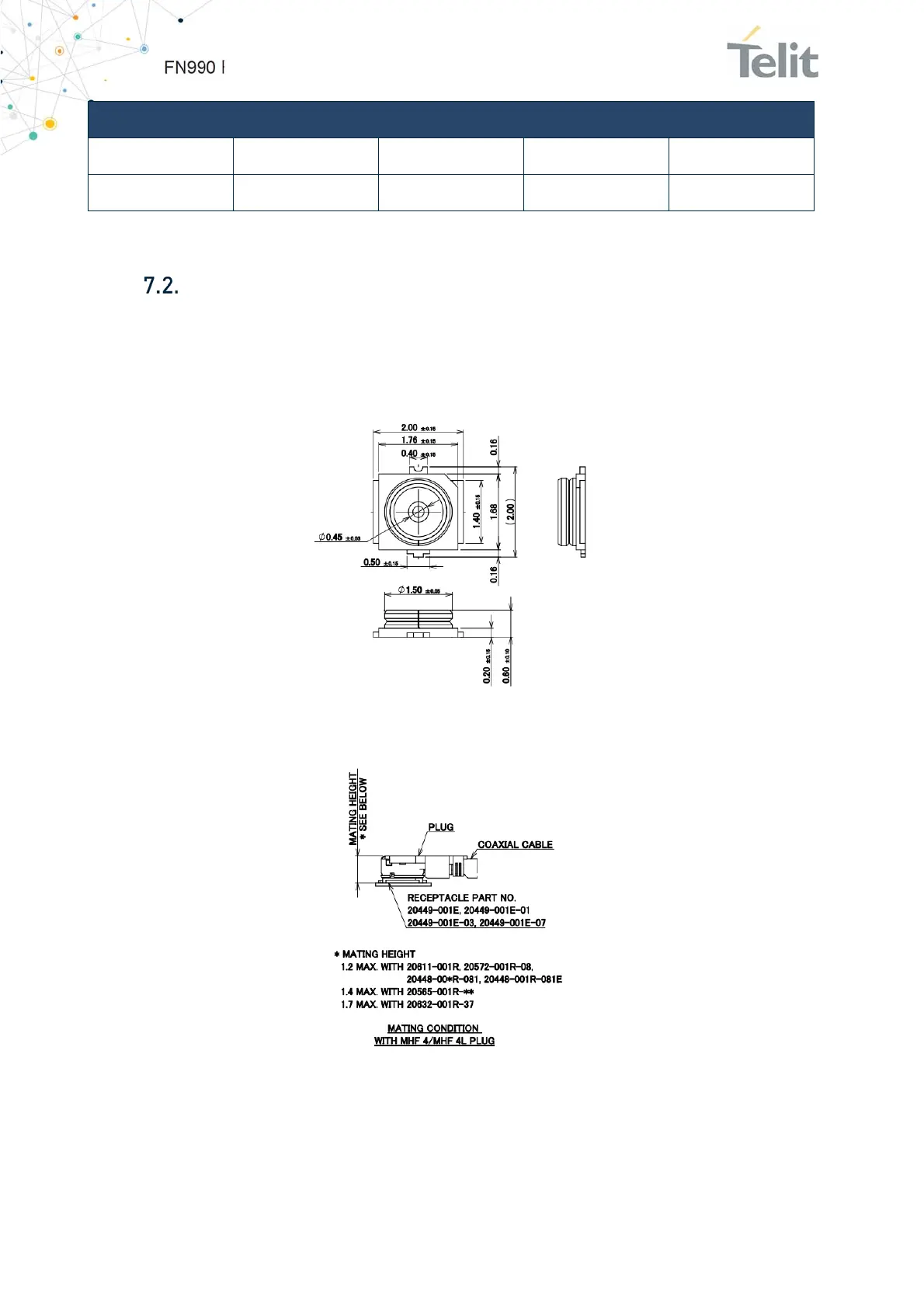

Figure 20: MHF-4 RF connector
Figure 21: MHF-4 Receptacle
