FN990
Family Hardware Design Guide
1VV0301752 Rev. 3 Page 66 of 92 2022-10-07
Not Sub
ect to NDA
8. MECHANICAL DESIGN
General
The FN990 Family module was designed to be compliant with a standard lead-free SMT
process.
Finishing & Dimensions
The FN990 Family module’s overall dimensions are:
Length: 52.00 mm
Width: 30.00 mm
Thickness: 2.25 mm
Drawing

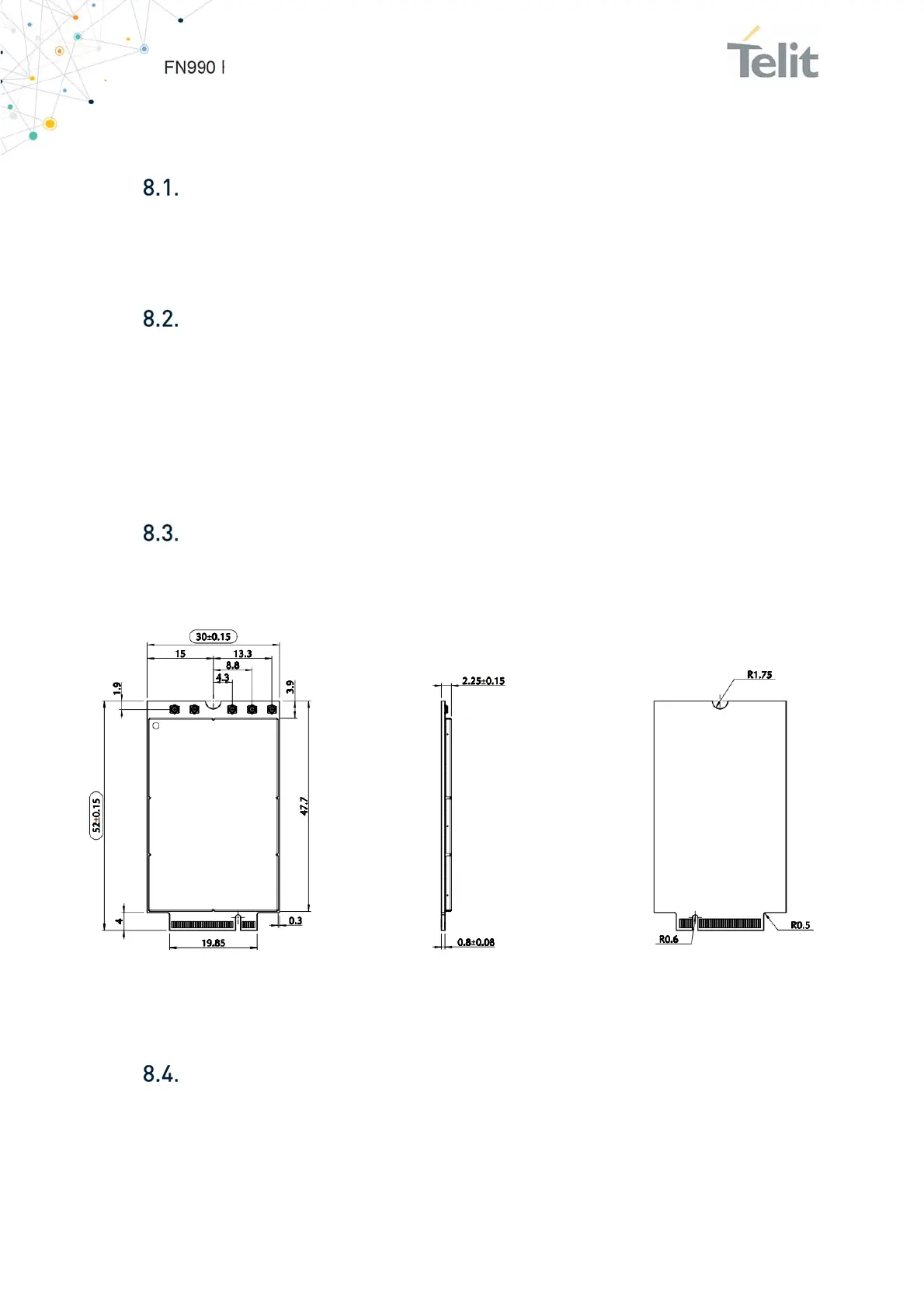

This figure shows the mechanical dimensions of the FN990 Family module.
Figure 22: FN990 Family Module Mechanical Dimensions
Solder Resist Opening Area and Keepout Area
The figure below shows the solder resist opening area and keep out area location on the
FN990 bottom side.
