Tenda i27 User Manual

Document version: V1.0
39

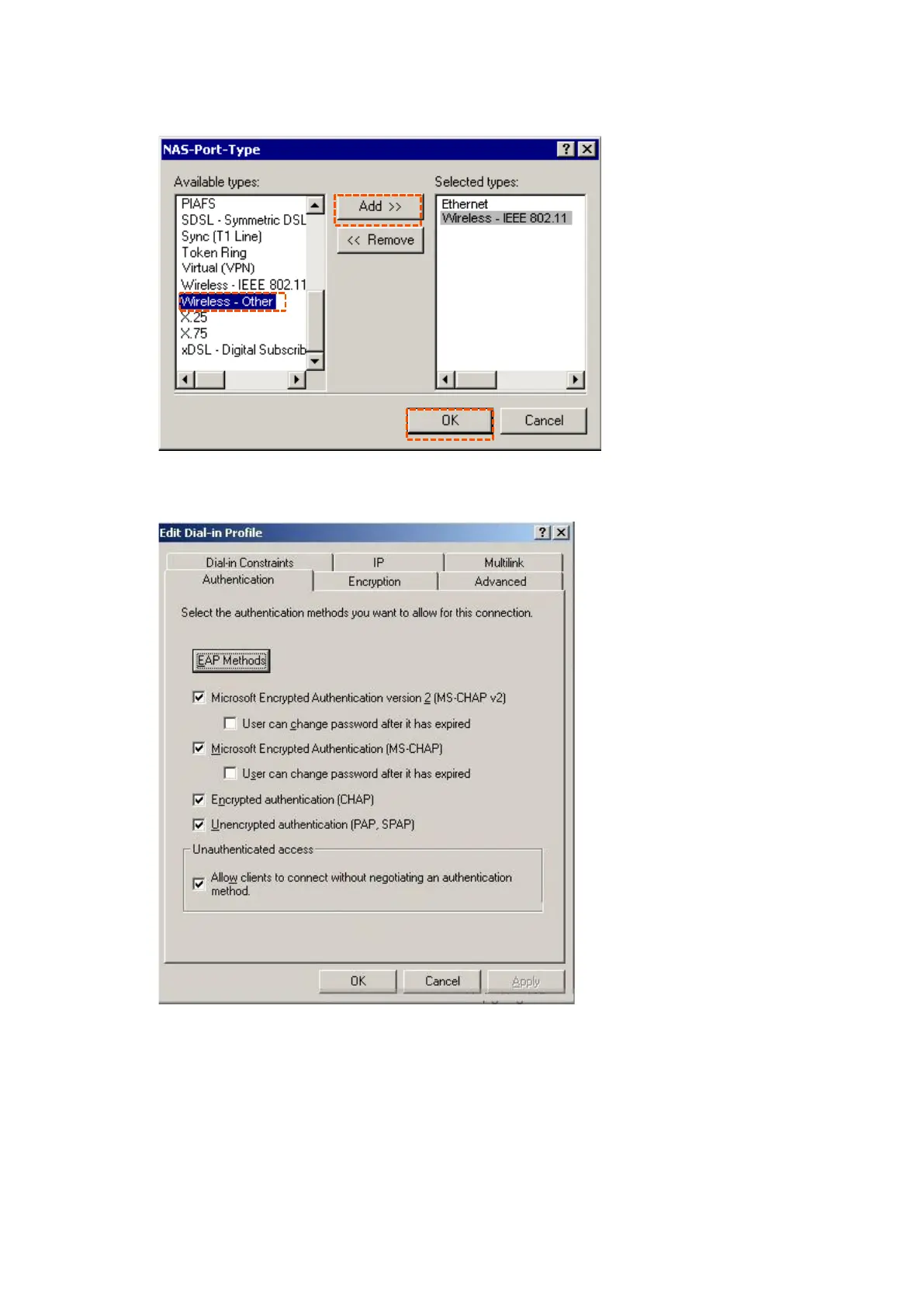

10. Select Wireless – Other, click Add, and click OK.
11. Click Edit Dial-in Profile, click the Authentication tab, configure settings as shown in the
following figure, and click OK.
12. When a message appears, click No.
Step 3 Configure user information.
Create a user and add the user to group 802.1x.

Tenda i27 Specifications

General

Antenna type	External
Antennas quantity	2
Antenna gain level (max)	4 dBi
2.4 GHz	Yes
MIMO type	Multi User MIMO
Number of users	254 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v, IEEE 802.3at
Virtual LAN features	Tagged VLAN
Spread spectrum method	OFDMA
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	2976 Mbit/s
Maximum data transfer rate (5 GHz)	2402 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Power consumption (max)	14.04 W
Placement	Ceiling, Wall
Product color	White
Security algorithms	SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	8
Service Set Identifier (SSID) features	Hidden SSID
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	38 mm
Width	178 mm
