Tenda i27 User Manual

Document version: V1.0
1
1 Log in to the web UI
1.1 Login
Step 1 Connect your computer to the AP or the switch connected to the AP with an Ethernet
cable.

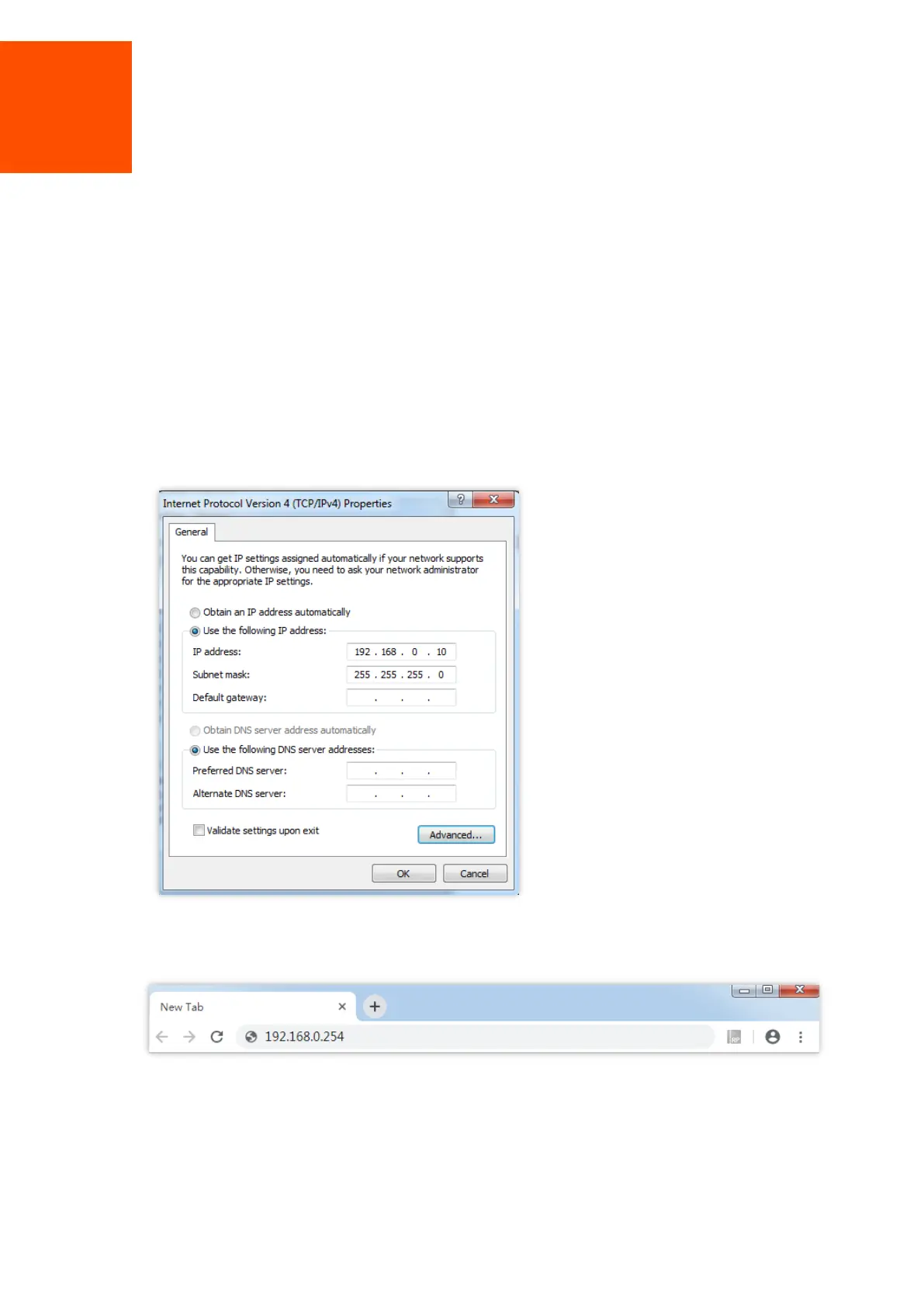

Step 2 Ensure that the IP address of the management computer is in the same network segment
of the AP.
For example, if the IP address of the AP is 192.168.0.254, the management computer
should be configured with an IP address of 192.168.0.X (X: 2~253).
Step 3 Start a web browser on the computer, enter the IP address of the AP (default:
192.168.0.254) in the address bar.

Tenda i27 Specifications

General

Antenna type	External
Antennas quantity	2
Antenna gain level (max)	4 dBi
2.4 GHz	Yes
MIMO type	Multi User MIMO
Number of users	254 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v, IEEE 802.3at
Virtual LAN features	Tagged VLAN
Spread spectrum method	OFDMA
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	2976 Mbit/s
Maximum data transfer rate (5 GHz)	2402 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Power consumption (max)	14.04 W
Placement	Ceiling, Wall
Product color	White
Security algorithms	SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	8
Service Set Identifier (SSID) features	Hidden SSID
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	38 mm
Width	178 mm
