Tenda i27 User Manual

Document version: V1.0
89
8.5 Diagnostic tool
With the diagnostic tool, you can detect the connection status and connection quality of a network.
Assume that you need to check the connection quality between the AP and its upstream router (IP
address: 192.168.1.1).
Step 1 Choose Tools > Diagnostic Tool to enter the configuration page.
Step 2 Enter the IP address of its upstream router in the Target IP/Domain Name box, which is
192.168.1.1 in this example.
Step 3 Click ping.
----End

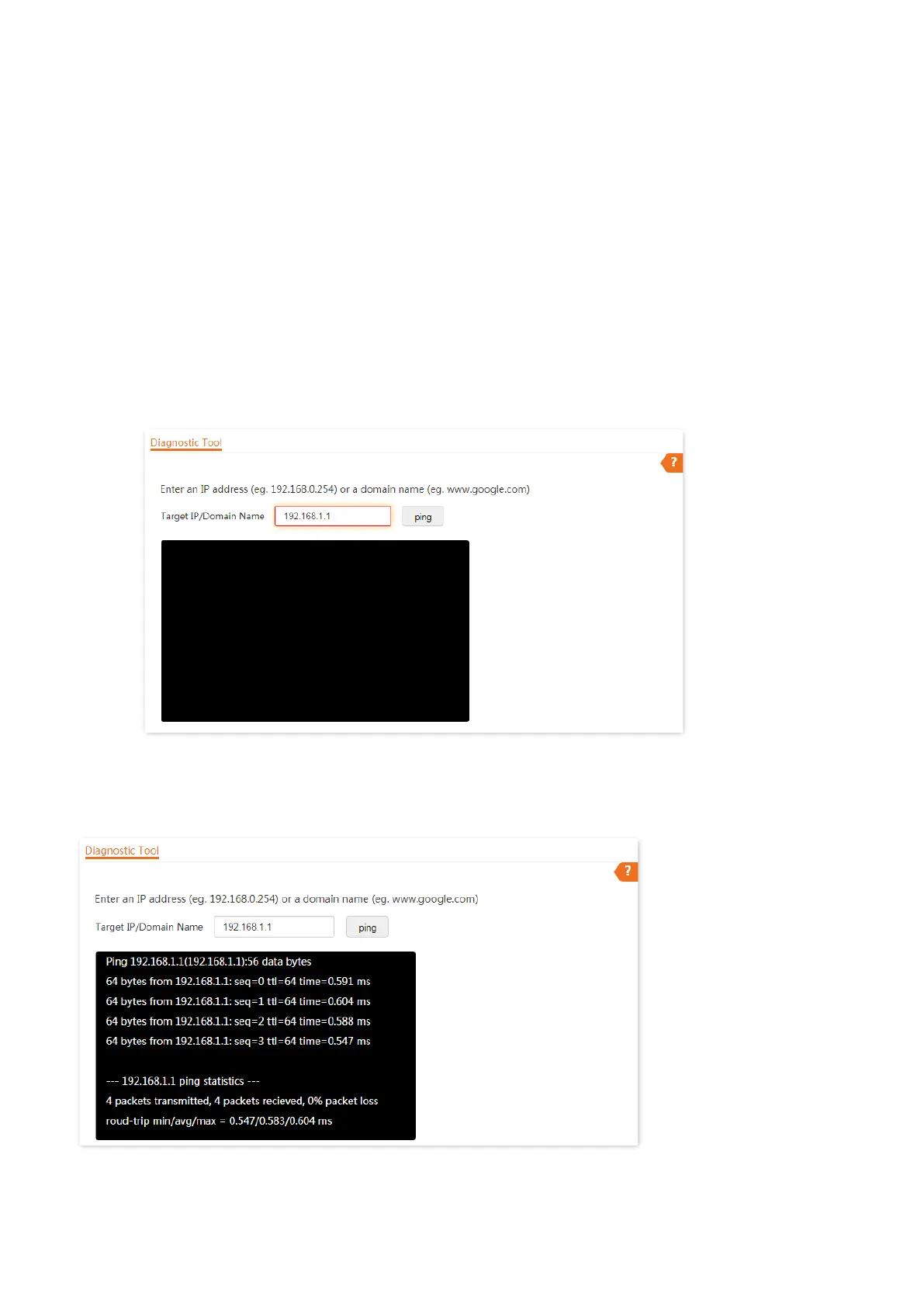

Wait a moment. The Ping result is displayed in the black square. See the following figure:

Tenda i27 Specifications

General

Antenna type	External
Antennas quantity	2
Antenna gain level (max)	4 dBi
2.4 GHz	Yes
MIMO type	Multi User MIMO
Number of users	254 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v, IEEE 802.3at
Virtual LAN features	Tagged VLAN
Spread spectrum method	OFDMA
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	2976 Mbit/s
Maximum data transfer rate (5 GHz)	2402 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Power consumption (max)	14.04 W
Placement	Ceiling, Wall
Product color	White
Security algorithms	SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	8
Service Set Identifier (SSID) features	Hidden SSID
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	38 mm
Width	178 mm
