Opening the "Travel" oil circuit
• Loosen nut (46/1) and screw in screw (46/2)
until even with nut on both high pressure
limiting valves (45/1) with bypass (in connection
plate of hydro pump). Re-tighten the nut (46/1).
• After towing, loosen nut (46/1) and unscrew
screw (46/2) to stop. Re-tighten the nut (46/1).
Torque: 30 Nm
Setting manual transmission to idle
Pull or push switch rod (47/1) to idle position
(center position) with appropriate tool.
The preselected gear is automatically
engaged upon starting the diesel engine
and the hydraulic system.
1
HM32-046

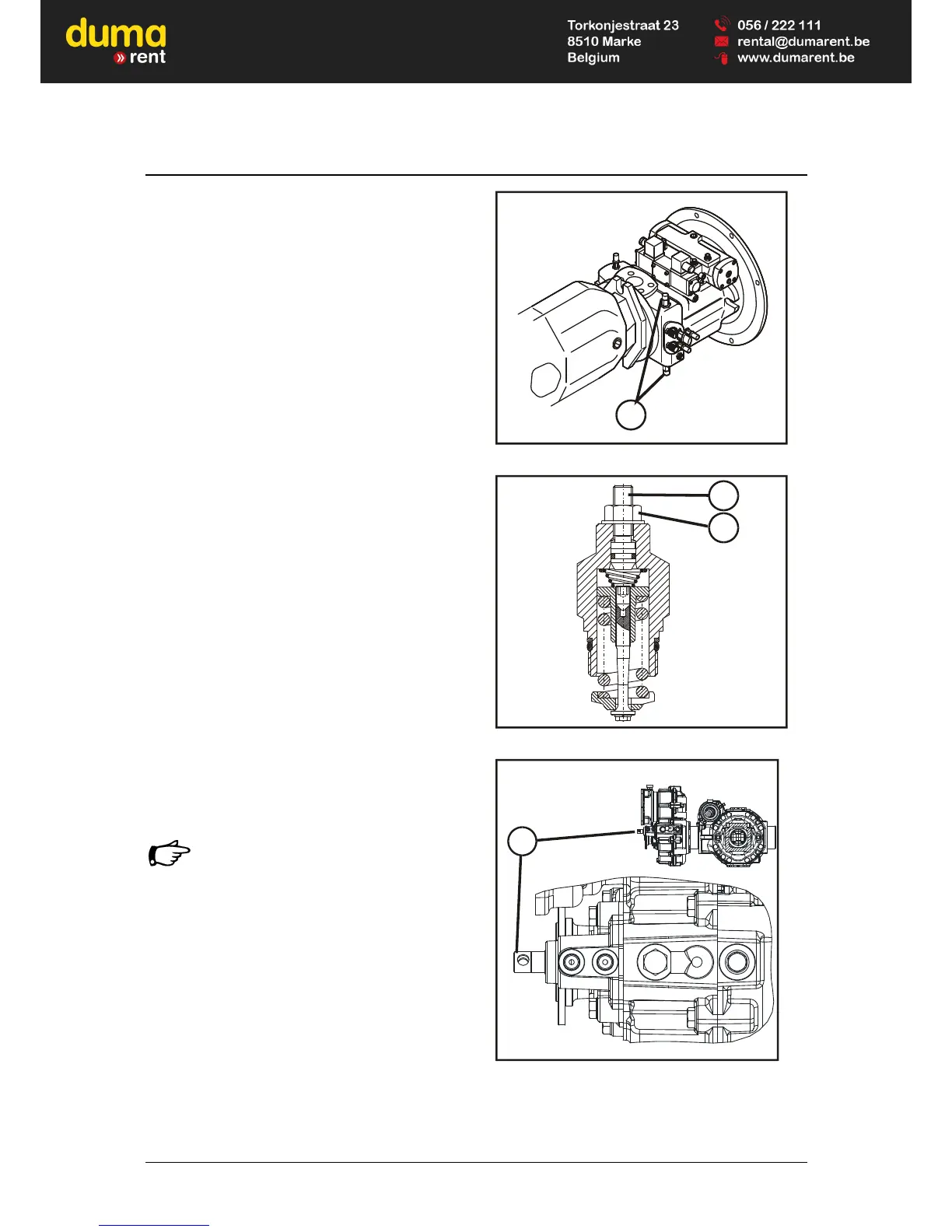

Fig. 45 Hydraulic pump
1
2
HM32-047
Fig. 46 Valve
HM32-047-N
Vorderachse
Front axle
1
HML32S
Fig. 47 Manual transmission - idle position
