Recovery and transport of the machine 6
TW85 63
Spring-loaded brake "emergency release"
• Loosen the nuts (48/2) and turn back approx. 8
mm to the screws (48/1).
• Tighten screws (48/1) in alternation with ring
wrench, 1/4 rotation each, up to the stop on the
pressure plate
Screw in one rotation at maximum.
After towing, re-adjust the spring-loaded
brake.
Adjust spring-loaded brake after "emergency
release"
• Unscrew the screws (48/1) with nut (48/2) and
sealing disk (48/3). Replace sealing disk
(E.No.: 5370651868), grease or oil screw and
reinstall.
• Screw in screws (48/1) until adjustment
dimension equals 31 ± 0.5 mm.
• Counterlock screws with nuts (48/2).
• Check adjustment dimension again.
Releasing the spring-loaded cylinder
• The spring brake cylinder is released with a
strong strike from below on the quick release
sleeve (48-1/1) toward the cylinder.
To activate the spring brake cylinder,
release the parking brake. Quick release
sleeve locks in place independently.
HM42-048
Vorderachse
Front axle
3
2
1
11
11
31 0,5

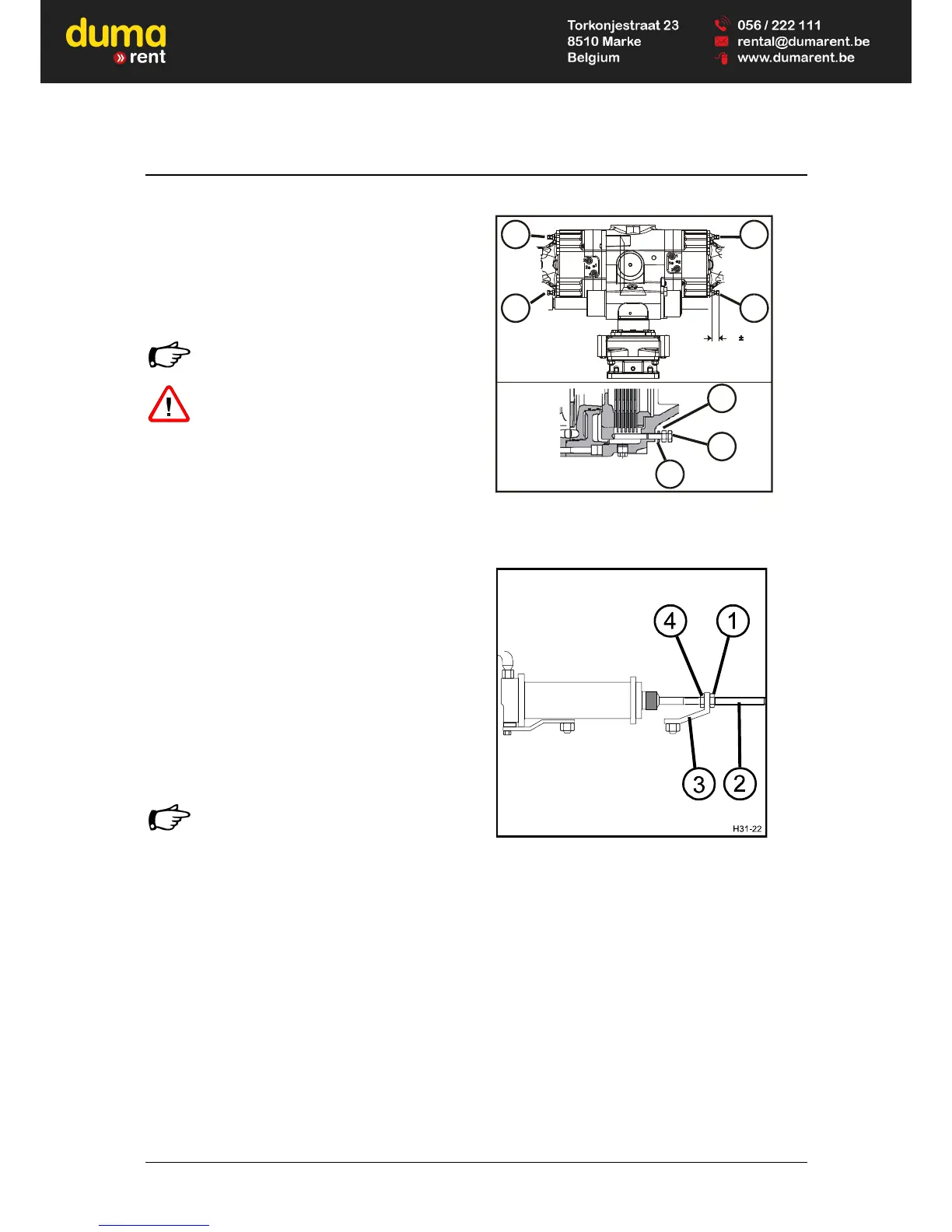

Fig. 48 Spring-loaded brake
Old version
Fig. 48-1 Spring-loaded cylinder
New version
