Terramite T5D - View of Underside of Arm Center

WWW.TERRAMITE.COM
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety PARTS MANUAL
Copyright © 2007 Terramite Corporation
ITEM PART NUMBER DESCRIPTION QTY.
1 80132 Hose,
3
/8” x 70” 4
2 20063 Fitting,
3
/8” MP x
3
/8” 90 Swivel, Stubby, T5D/T6/T7/T9 2
3 20176 Fitting,
3
/8” M x
3
/8” FM, Swivel 8
4 80134 Hose,
3
/8” x 28” 2
5 80133 Hose,
3
/8” x 26” 2
6 88418 Hose,
1
/4” x 18” 2
7 80055 Hose,
1
/4” x 38” 2
8 20177 Fitting,
3
/8” M x
1
/4” F, Straight Swivel 4
9 22118 Fitting,
3
/8” M 90 x
1
/4” F, Swivel 2
10 22266 Fitting,
3
/8” Tee, Weld-On 4
11 80131 Hose,
1
/4” x 70” 2
12 12046 Plate 1

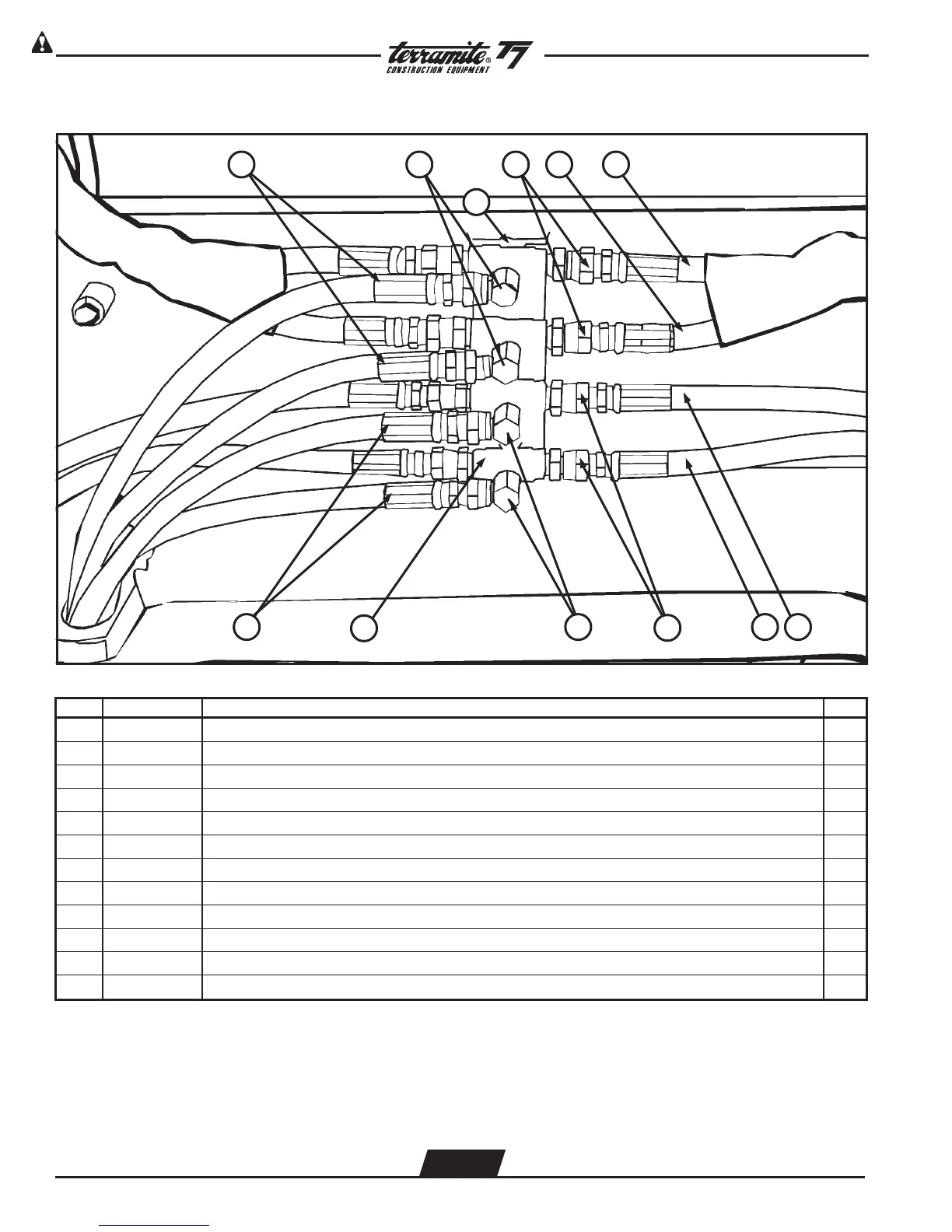

View of Underside of Arm Center
41 2 3 5
10
o
o
12
11
9
8
67
2.4
