Terramite T5D - View of Hub Assembly and Spindle

WWW.TERRAMITE.COM
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For SafetyPARTS MANUAL
Copyright © 2007 Terramite Corporation
ITEM PART NUMBER DESCRIPTION QTY.
1
53116 Spindle, Front, Right, T5D/T7 T6/T9 2WD
1
53050 Spindle, Front, Left, T5D/T7 T6/T9 2WD
2 53111 Seal, Front, Hub, T5C/T5D/T6/T7/T9 1
3 53123 Bearing, Front, Inner, T5C/T5D/T6/T7/T9 1
4 53124 Race, 5 on 5.5, Front, Inner, T5C/T5D/T6/T7/T9 1
5 53137 Hub, 5 on 4.5, T5C/T5D/T6/T7/T9 1
6 53058 Race, Old Style, In & Out and New Style Outer, T5C/T5D/T6/T7/T9 1
7 53125 Bearing, Front, Outer, T5C 1
8 53140 Washer,
3
/4”, SAE Z, Front Axle 1
9 53150 Nut, Castelated,
3
/4”, Front Hub 1
10 53160 Pin, Cotter,
1
/8 x 1
3
/4”1
11 53170 Cap, Dust, T3/T4/T5C/T5D/T6/T7/T9 1
12 28506 Nut, Lug,
1
/2” - 20 ID x
13
/16” OD, Front & Rear 5
13 53136 Assembly, Hub, 5 on 4.5 (Spindle Not Included) 1
14 53227 Bearing Kit w/no Hub 1
121110987654321

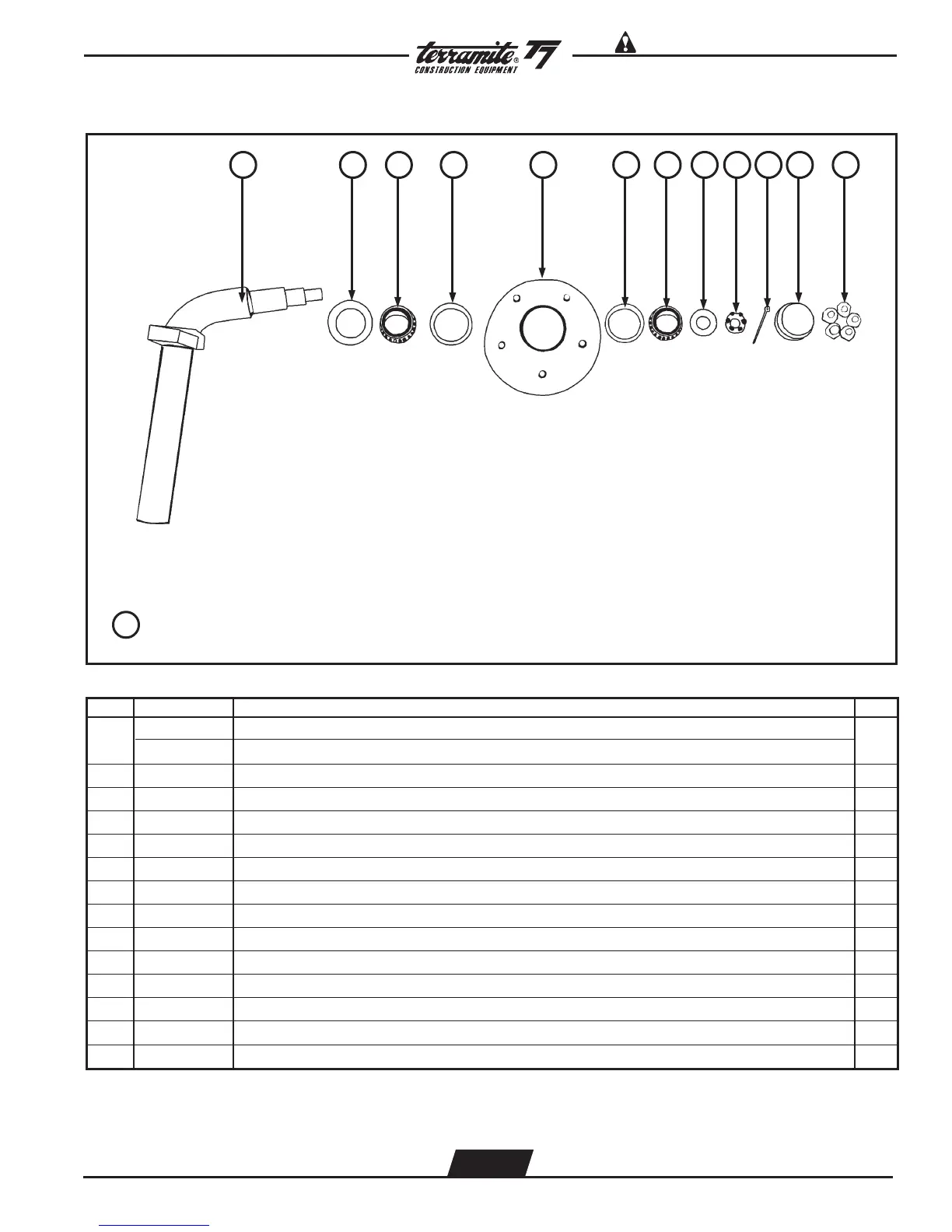

View of Hub Assembly and Spindle
13 Hub Assembly
2.9
