Terramite T5D - Way, 3 Position Valve Section - V20

WWW.TERRAMITE.COM
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For SafetyPARTS MANUAL
Copyright © 2007 Terramite Corporation
ITEM QUANTITY
NO. DESCRIPTION PER SECTION
1 POSITIONER, Spool, Standard 1
2 CHECK, Load 2
3 RETAINER ASSEMBLY, Stanedard, Includes Screws 1
4 RETAINER, Plate Washer 2
5 WASHER, Back-Up
}
See Note 1
2
6 SEAL, O-Ring 2
7 HOUSING, Standard
}
See Note 1
1
8 SPOOL, 4-Way 1

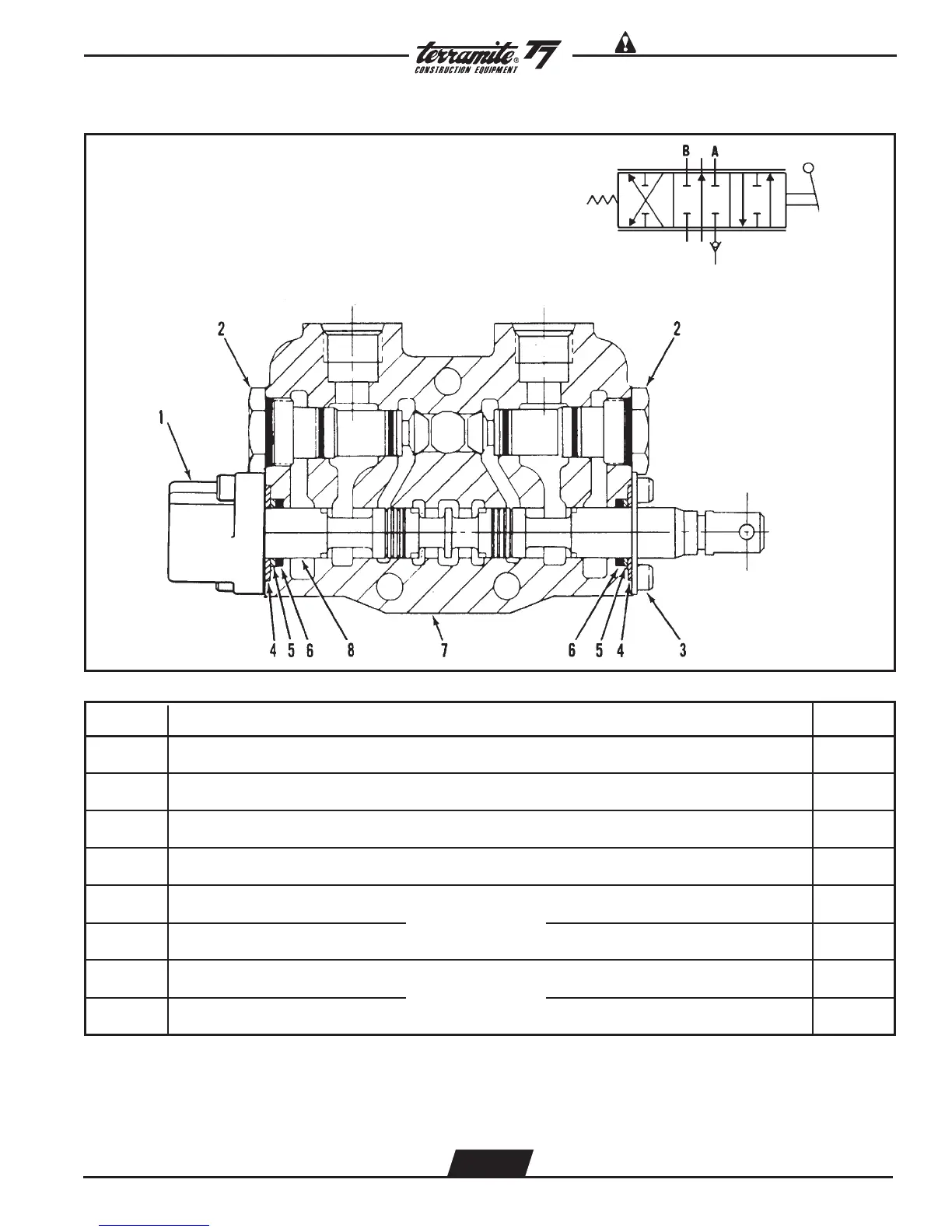

4-Way, 3-Position Valve Section - V20
Notes:
1. Seal and washer not sold separately. Order Seal Kit.
2. These are matched parts and are not sold separately.
Buna-N seals are standard for all Gresen valve assemblies. Optional Viton seals are available.
Torque to
10 ft. lbs. [13,6 Nm]
4.35
