Terramite T5D - View of Fitting Location for Rear Valve (180 Swing)

WWW.TERRAMITE.COM
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For SafetyPARTS MANUAL
Copyright © 2007 Terramite Corporation
ITEM PART NUMBER DESCRIPTION QTY.
1 20039 Fitting, #10 O-Ring x #8 JIC 90 1
2 20156 Fitting, #8 O-Ring x #6 JIC 90 6
3 20007 Fitting, #10 O-Ring -
7
/8MB x
1
/2" F, Bushing 1
4 20192 Fitting,
1
/2MB x #8 JIC Long 90 1
5 20039 Fitting, #10 O-Ring x #8 JIC 90 1
6 20149 Fitting, #8 MP x #8M JIC Long 90 6

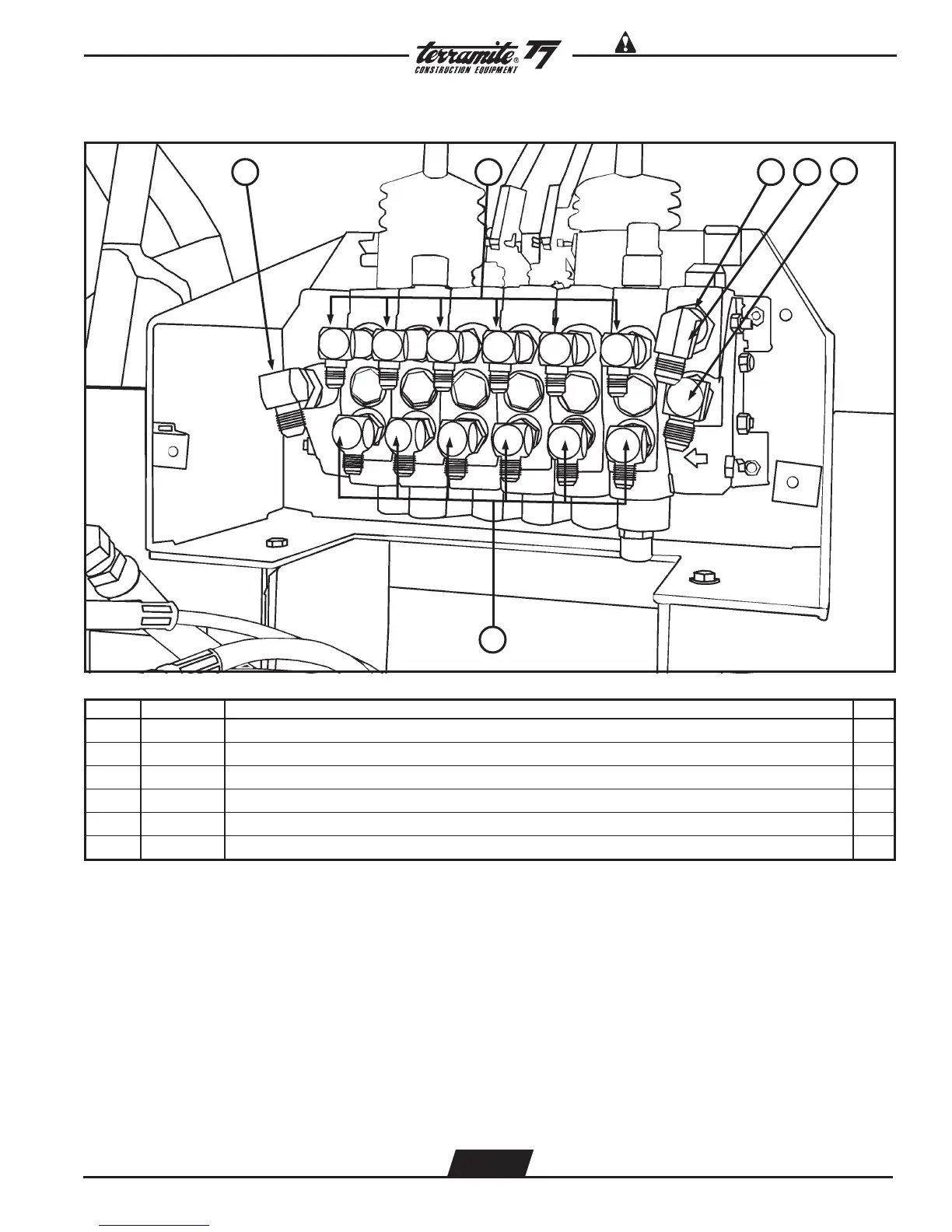

View of Fitting Location for Rear Valve (180 Swing)
21 3
4
5
6
2.41
