Terramite T5D - View of Clam Shell 4 in 1 Bucket

WWW.TERRAMITE.COM
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety PARTS MANUAL
Copyright © 2007 Terramite Corporation
ITEM PART NUMBER DESCRIPTION QTY.
1 17138 Pin, Clam & Blade Pivot 2
2 20082 Nut,
3
/8” NC Flange Z 6
3 17136 Pin, Clam Cylinder Rod End 2
4 22174 Fitting,
1
/4” MP x
1
/4” F 90° D, Swivel 2
5 81126 Cylinder, 4 in 1 Bucket 2
6 17137 Pin, Clam Cylinder Head End 2
7 19394 Blade, 4 in 1 Bucket 56” 1
8 19401 Clam, 4 in 1 Bucket 56” 1

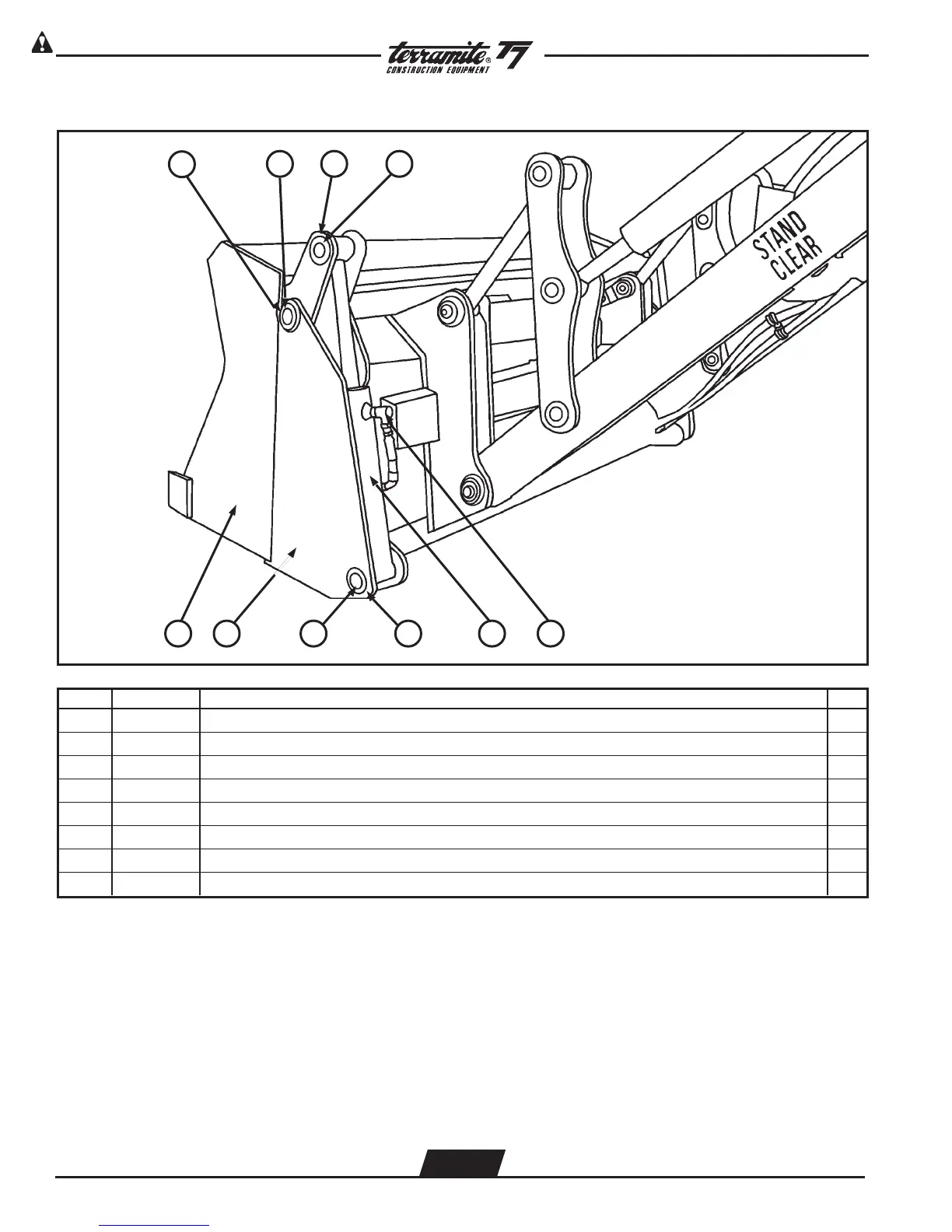

View of Clam Shell 4 in 1 Bucket (Factory Installed Option)
