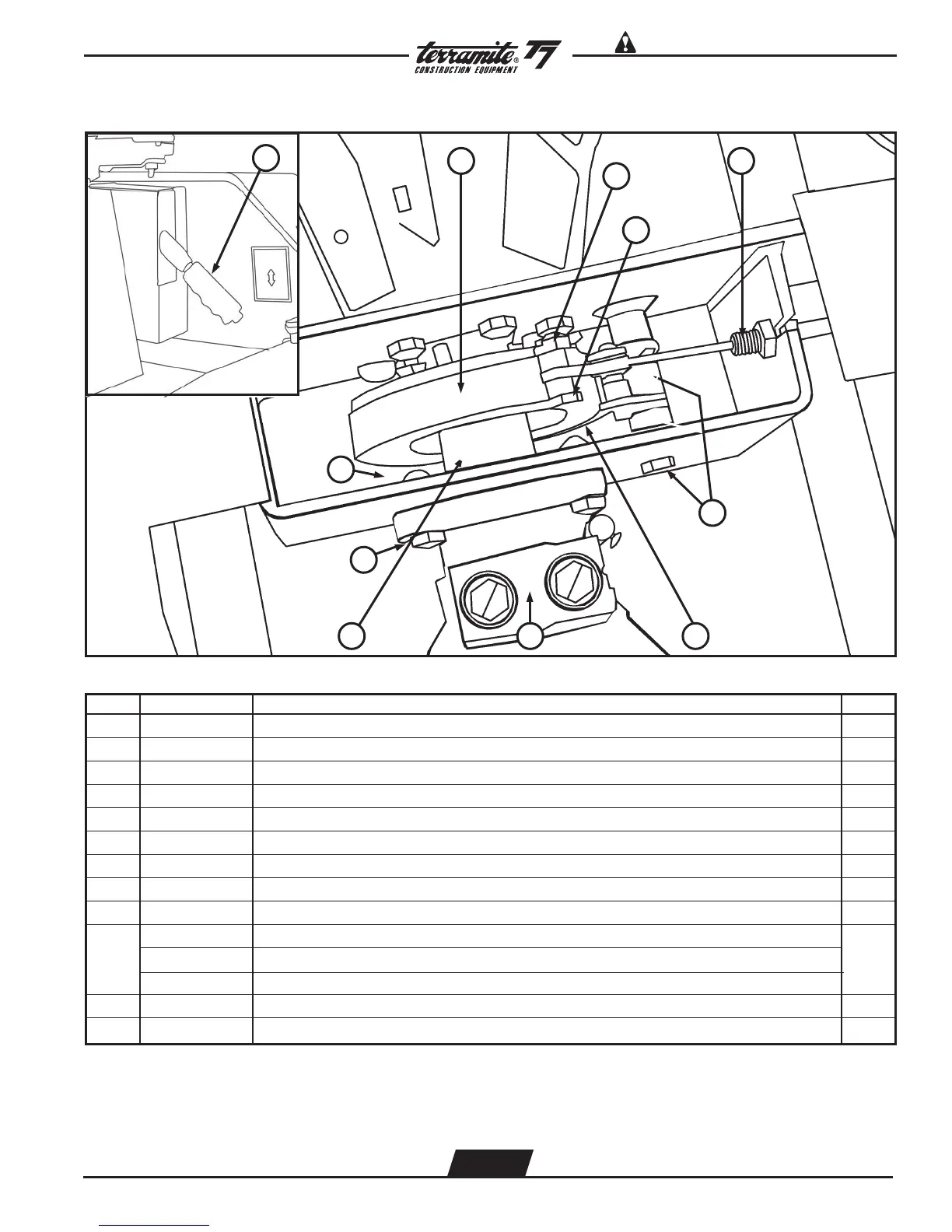

Terramite T5D - Top View of Parking Brake Assembly

WWW.TERRAMITE.COM
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For SafetyPARTS MANUAL
Copyright © 2007 Terramite Corporation
Top View of Parking Brake Assembly
ITEM PART NUMBER DESCRIPTION QTY.
1 55620 Brake Band 1
2 55606 Brake Cable 1
3 55613 Brake Off Set Link Not Shown - Attaches to Brake Band 1
4 64003 Drive Motor 1
5 51800 Drive Motor Flange 1
6 22034 Bolt 1
7 28500 Nut 1
8 23005 Nut 1
9 22038 Bolt 1
17028 Bushing, Brake 9/16" ID x 1" OD x 7/8" L 1
10 17029 Bushing, Brake 9/16" ID x 1"OD x 1 1/4" L 1
22042 Bolt, 14mm x 90 mm C2.0z Brake 38748 1
13168 Spring, Retro Fit Parking Brake 1
55621 Spring Bracket, Parking Brake 1
1 2
5 4 3
NOT SHOWN
ATTACHES TO BRAKE BAND
8
6
7
9
10
ITEM
SHOWN
ITEM
SHOWN
2
2.45
