Read Operators Manual For SafetyPARTS MANUAL
Copyright © 2007 Terramite Corporation

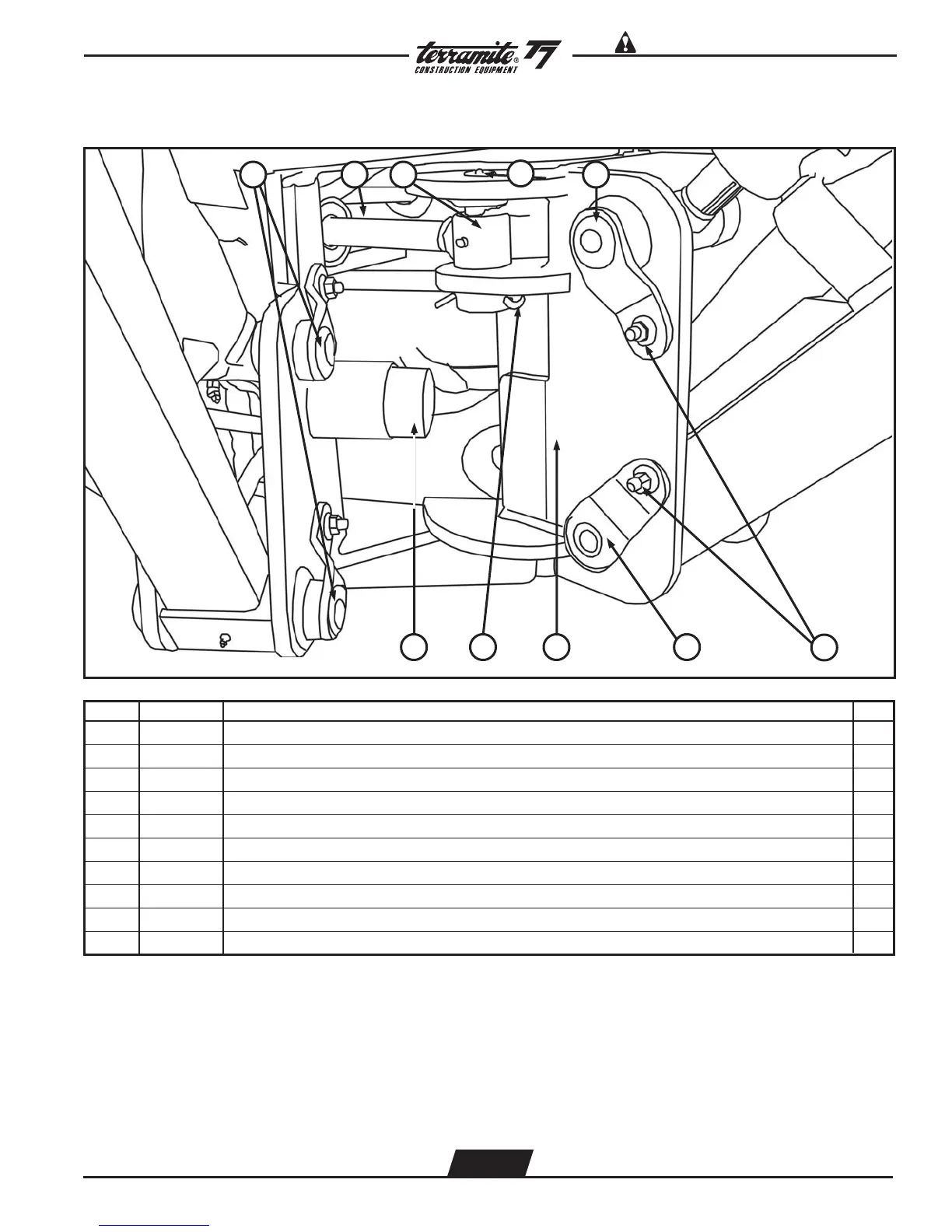

View from Right Side of Swing Assembly (Straight Boom)
3 5
78910
ITEM PART NUMBER DESCRIPTION QTY.
1 11100 Pin, 6
1
/4” Outrigger, Boom, T5C/T5D/T6/T7/T9 2
2 25201 Rod, Swing, T5C/T5D/T6/T7/T9 1
3 82070 Cylinder, Swing, T5C/T5D/T6/T7/T9 1
4 15300 Pin, 4
1
/8”, Swing Cylinder to Swing, T5C/T5D/T6/T7/T9 2
5 10410 Pin, 7
3
/4”, Boom Cylinder to Swing, T5C/T5D/T6/T7 1
6 20082 Nut,
3
/8"NC Flange Z 2
7 10400 Pin, 8
1
/4”, Dipper/Bucket, Boom/Swing, T5C/T5D/T6/T7 1
8 11300 Swing, T5C/T5D 1
9 21420 Pin, Cotter, Case Hard 1
10 11006 Stop, Plastic, Swing, T5C/T5D/T7 1
21
4
6
2.49
