Read Operators Manual For Safety PARTS MANUAL
Copyright © 2007 Terramite Corporation
ITEM PART NUMBER DESCRIPTION QTY.
1 81190 Cylinder, Boom and Crowd, T7 2
2 10700 Pin, 6
7
/8”, Crowd and Rear Curl Cylinder, Dipper, T5C/T5D/T7 4
3 81158 Cylinder, Rear Curl, T5D/T7 1
4 81048 Rod, Rear Curl, T5D/T7 1
5 10271 Assembly, Dipper, T7 (Includes Decals) 1
6 10701 Pin, 7
1
/4”, Boom to Dipper, T5C/T5D/T7 1
7 10292 Assembly, Boom, Curved, T5D/T7 (Includes Decals) 1
8 81222 Cylinder, Boom, T7 1
9 17270 Pin, Lock, Swing, T7/9 1800 1

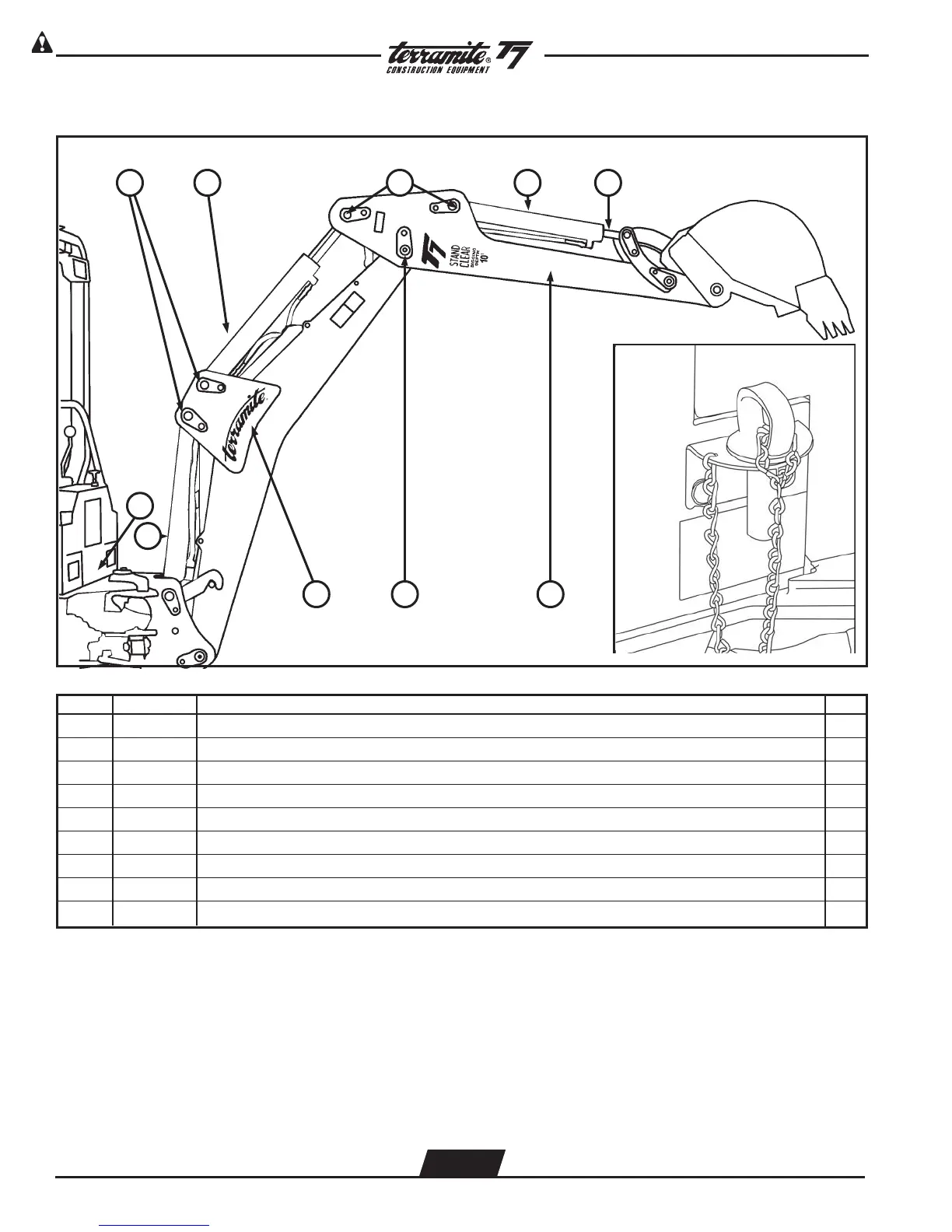

View of Left Side of Backhoe Assembly (Prior 1-1-01)
2
9
1 2 3 4
567
8
9
2.50
To Next Page
