ITEM PART NUMBER DESCRIPTION QTY.
1 17190 Pin, 8
1
/4”, Quick Attach Bucket, T5C/T5D/T7 1
2 10812 Pin, 7
5
/8”, Dipstick to Linkage, T5C/T5D/T6/T7/T9 1
3 20082 Nut,
3
/8” NC Flange Z 2
4 11160 Bucket, 16”, Quick Attach, T5C/T5D/T7 1
5 19479 Center Assembly, Quick Attach, T5C/T5D/T7 1
6 17269 Pin, 6
1
/2”, Rear Curl Cylinder to Quck Attach, T5C/T5D/T6/T7/T9 1
7 10812 Pin, 7
5
/8”, Dipstick to Linkage, T5C/T5D/T6/T7/T9 1
8 10202 Pin, Linch, T5C/T5D/T6/T7/T9/Sweeper 1
9 17273 Pin, 9”, Quick Attach Pull, T5C/T5D/T7 1
10 18240 Linkage Assembly, Center, T5C/T5D/T6/T7/T9 1
11 10260 Bushing, 1
1
/2” ID x 1
3
/4”OD x 3” L 1
12 10819 Bushing 1 ID” x 1
1
/4” OD x 1” L 1
13 17055 Bushing, 1
1
/2” ID x 1
3
/4” OD x 2” L 1
14 18261 Linkage Link, Right, T5C/T5D/T6/T7/T9 1
15 18260 Linkage Link, Left, T5C/T5D/T6/T7/T9 1

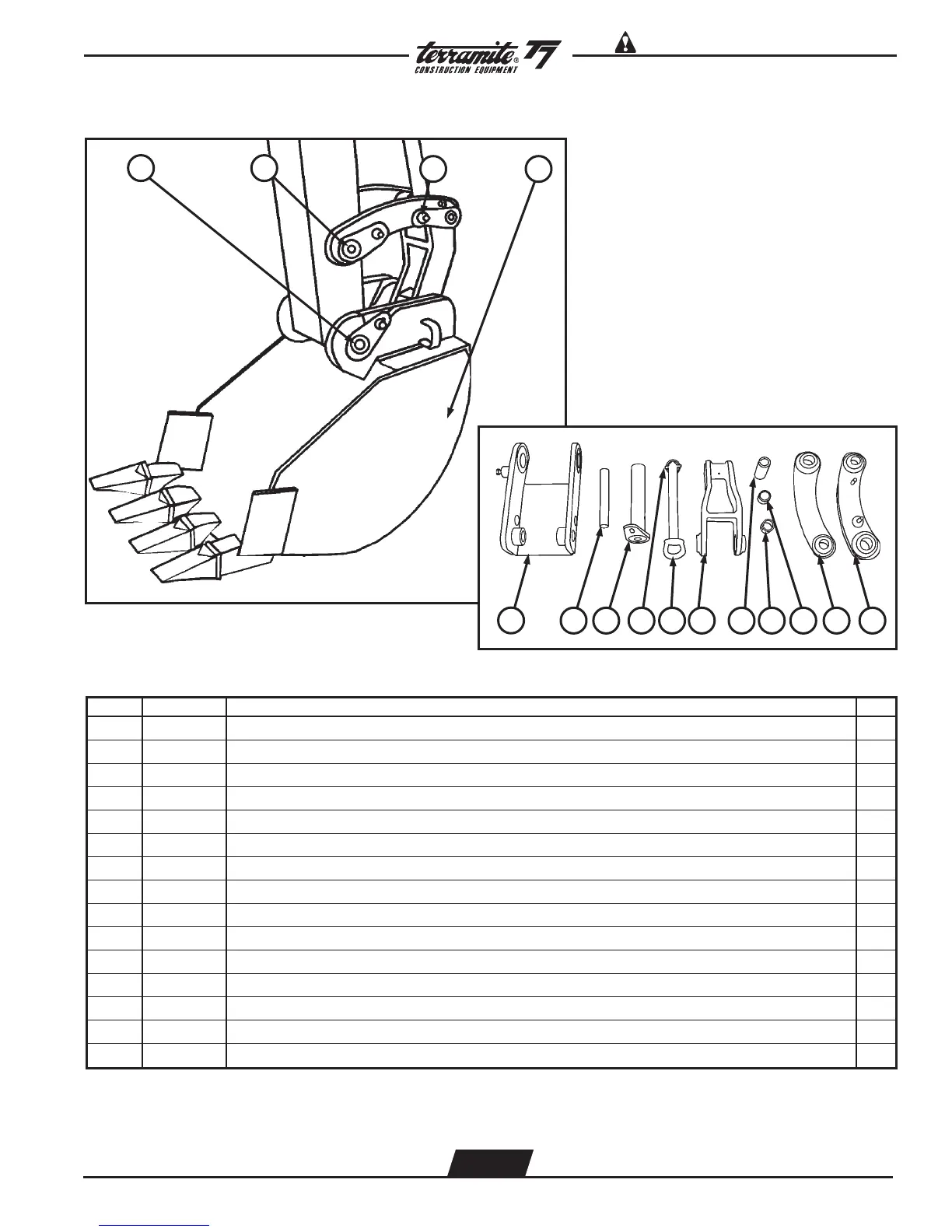

View of Left Side of Rear Bucket & Linkage Assembly
1 2
3 4
5
6 7 8 9 10 11 12 13 14 15
