Terramite T5D - View of Front Axle - Ball Socket Style

WWW.TERRAMITE.COM
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety PARTS MANUAL
Copyright © 2007 Terramite Corporation
ITEM PART NUMBER DESCRIPTION QTY.
1 53201 Axle, Front, T7/T9 2W 1
2 81212 Cylinder, Power Steering, Ball Socket Style, T5C/T7/T9 2WD 1
3 24028 Pin, Clevis,
5
/8 x 2
1
/4”1
4 53160 Pin, Cotter,
1
/8 x 1
3
/4”1
5 25803 Rod, Power Steering, T5C/T5D/T6/T7/T9 2WD 1
6 15162 Assembly, Axle, Front, Ball Socket,
T7/T9 2WD 1
1 2
3
45

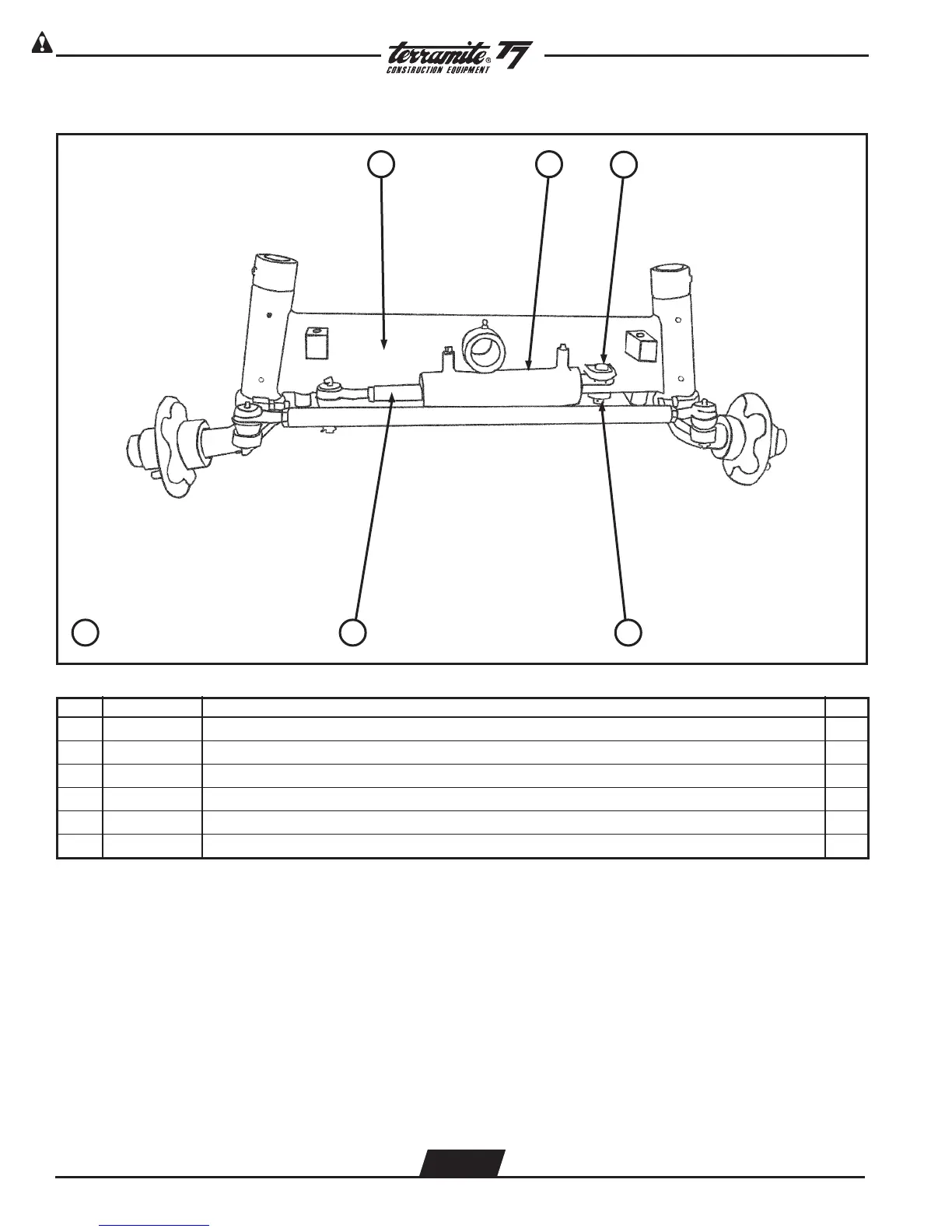

View of Front Axle - Ball Socket Style (Bumper Not Shown)(After 1/1/01)
6 Complete Assembly
2.8
