Terramite T5D - View of Backhoe Assembly for T5 D with Straight Boom

WWW.TERRAMITE.COM
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety PARTS MANUAL
Copyright © 2007 Terramite Corporation
ITEM PART NUMBER DESCRIPTION QTY.
1 10184 Boom Lock, T5C/T5D 1
2 13114 Spring, Boom Lock, 5.5”L 1
3 10193 Handle, Boom Lock, T5C/T5D 1
4 13942 Knob, Red 1
5 21000 Cylinder,Crowd, T5/T5C/T5D 1
6 81060 Cylinder, Rear Curl,T5C/T5D 1
7 10322 Assembly, Dipper, T5D (Includes Decals) 1
8 10289 Assembly, Boom, T5D (Includes Decals) 1
9 21200 Cylinder, Boom, T5/T5C/T5D 1
10 11501 Outrigger, T5C/T5D 2
11 11123 Guard, Outrigger, T5C/T5D/T7 2
12 81139 Cylinder, Outrigger, T5C/T5D/T7 2

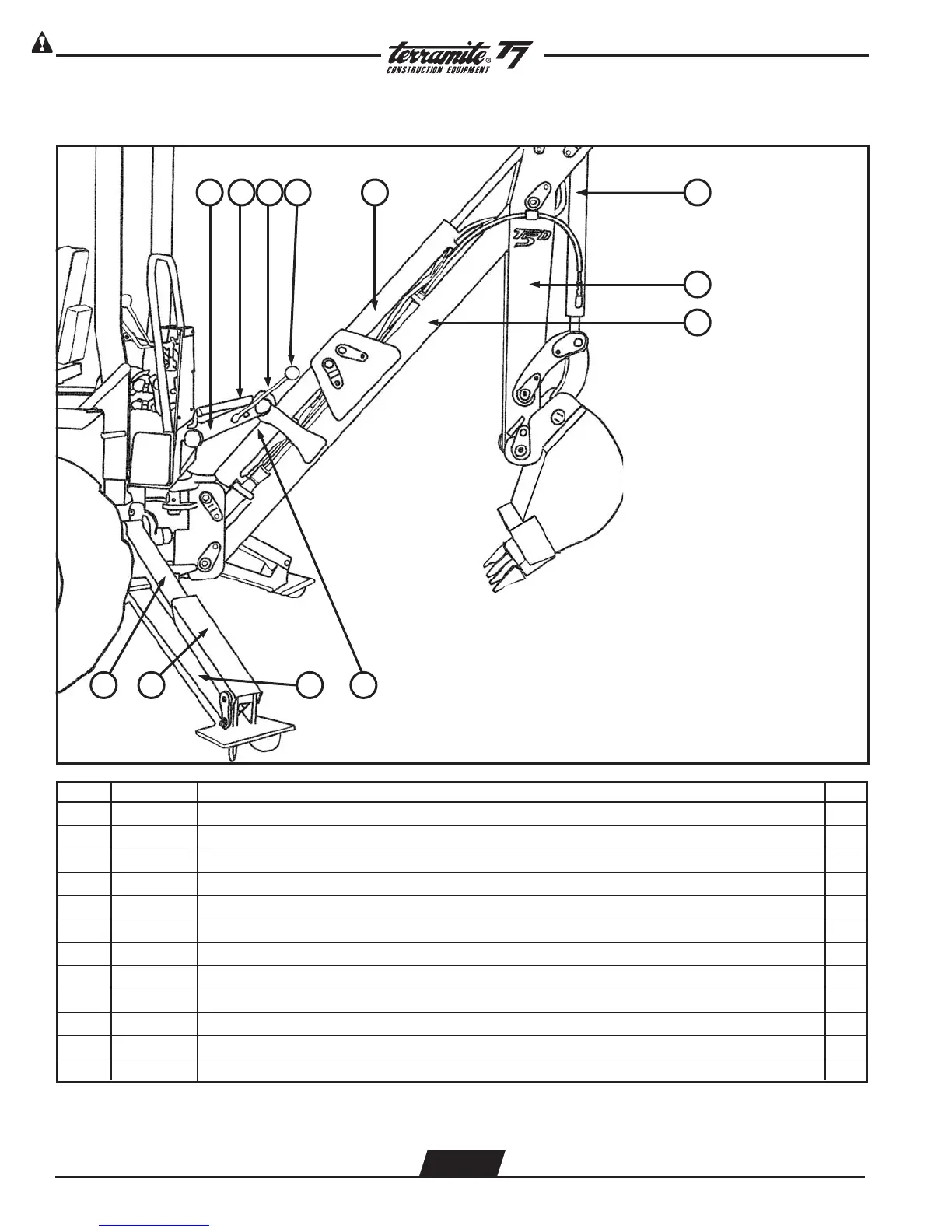

View of Backhoe Assembly for T5D with Straight Boom
1 2 3 4 5 6
7
8
9101112
2.48
