Read Operators Manual For SafetyPARTS MANUAL
Copyright © 2007 Terramite Corporation
ITEM PART NUMBER DESCRIPTION QTY.
1 15300 Pin, 4
1
/8”, Swing Cylinder to Swing, T5C/T5D/T6/T7/T9 (Not Shown) 1
2 11140 Pin, 18”, Swing Pin, T5C/T5D/T7 (Not Shown) 1
3 17208 Pin, 7
3
/4”, Boom Cylinder to Swing, T6/T7/T9 1
4 10237 Boom Latch, Curved Boom, T5D/T6/T7/T9 1
5 10400 Pin, 8
1
/4”, Boom to Swing, T5C/T5D/T7 1
6 21420 Pin, Cotter, Case Hard 1
7 11006 Stop, Swing, T5C/T5D/T7 1
8 11100 Pin, 6
1
/4”, Outrigger, Boom, T5C/T5D/T6/T7/T9 1
INSET - SWING CYLINDER SUB - ASSEMBLY
9 20025 Fitting,
1
/4” Tee 2
10 80045 Hose,
1
/4” Swing Crossover, 15” 2
11 82070 Cylinder, Swing w/Tee Fitting 2
12 20174 Fitting,
1
/4”M x
1
/4”FM Straight, Swivel 2
13 88420 Hose,
1
/4” Swing to Valve, 20” 1
14 88425 Hose,
1
/4” Swing to Valve, 25” 1

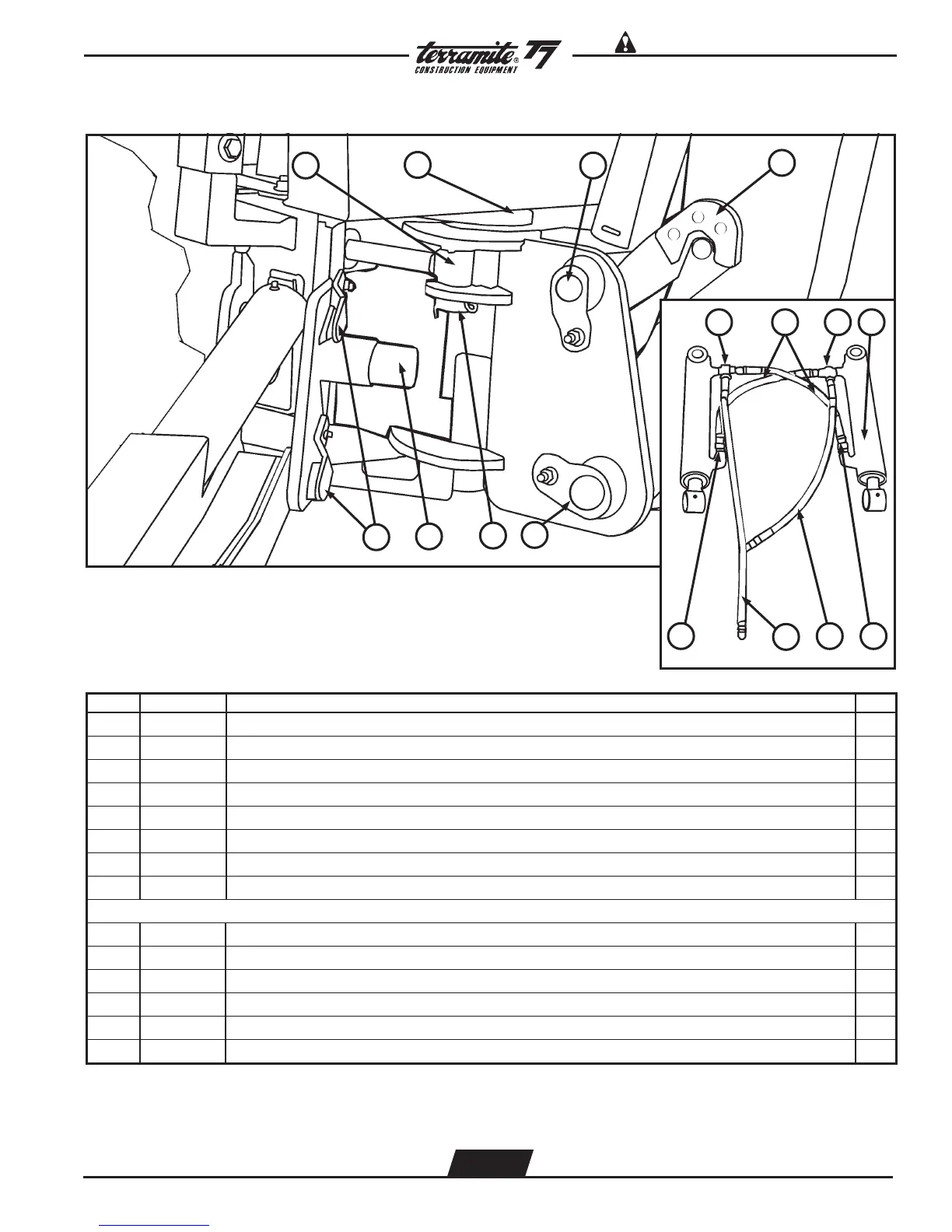

View of Left Side of Swing Assembly (Curved Boom Prior 1-1-01)
9 10 9
1
4
3
2
5
6
7
8
11
12
14
13 12
2.47
