Terramite T5D - View of Right Side of Arm Assembly

WWW.TERRAMITE.COM
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For SafetyPARTS MANUAL
Copyright © 2007 Terramite Corporation
ITEM PART NUMBER DESCRIPTION QTY.
1 12600 Pin, 5
1
/4”, Arm Cylinder to Arm, T5C/T5D/T6/T7/T9 2
2 82074 Cylinder, Front Curl, Right, T5D/T6/T7/T9 1
3 82073 Rod, 22
1
/4”, Front Curl, T5D/T6/T7/T9 2
4 82066 Cylinder, Front Curl, Left, T5D/T6/T7/T9 1
5
12074 Assembly, Arm, T5D (Includes Decals)
1
12075 Assembly, Arm, T7 (Includes Decals)
6 17179 Pin, 5
1
/2”, Arm Bracket to Arm Cylinder, T5D/T6/T7/T9 2
7 12026 Cylinder, Arm Lift, T5C/T5D/T7 2
8 12301 Pin, 7
7
/8”, Arm Cylinder Rod to Frame, T5B/T5C/T5D/T6/T7/T9 1

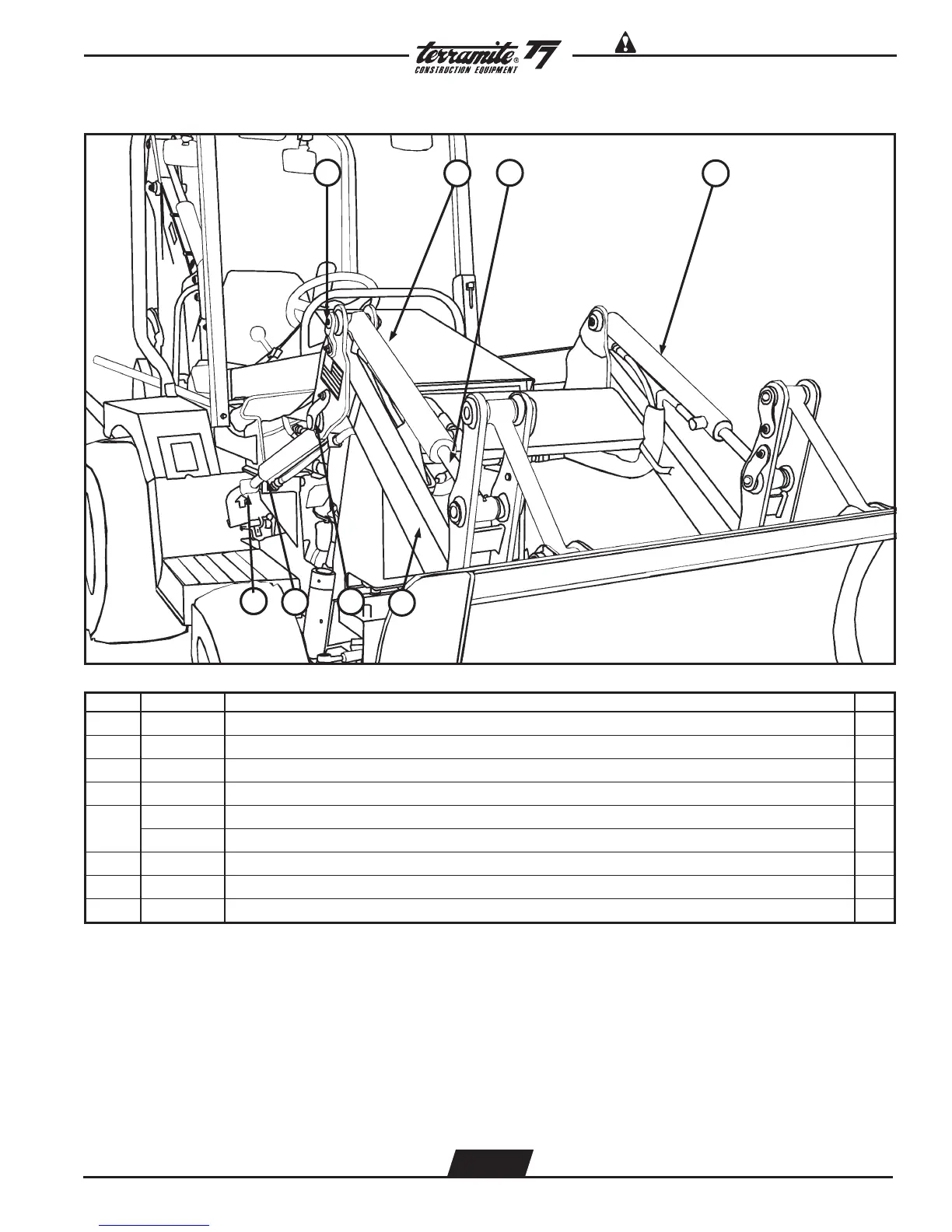

View of Right Side of Arm Assembly
2
5
3
6
7
3
8
3 4
1
2.5
