Terramite T5D - View of Transmission Assembly (Diesel)

WWW.TERRAMITE.COM
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For SafetyPARTS MANUAL
Copyright © 2007 Terramite Corporation

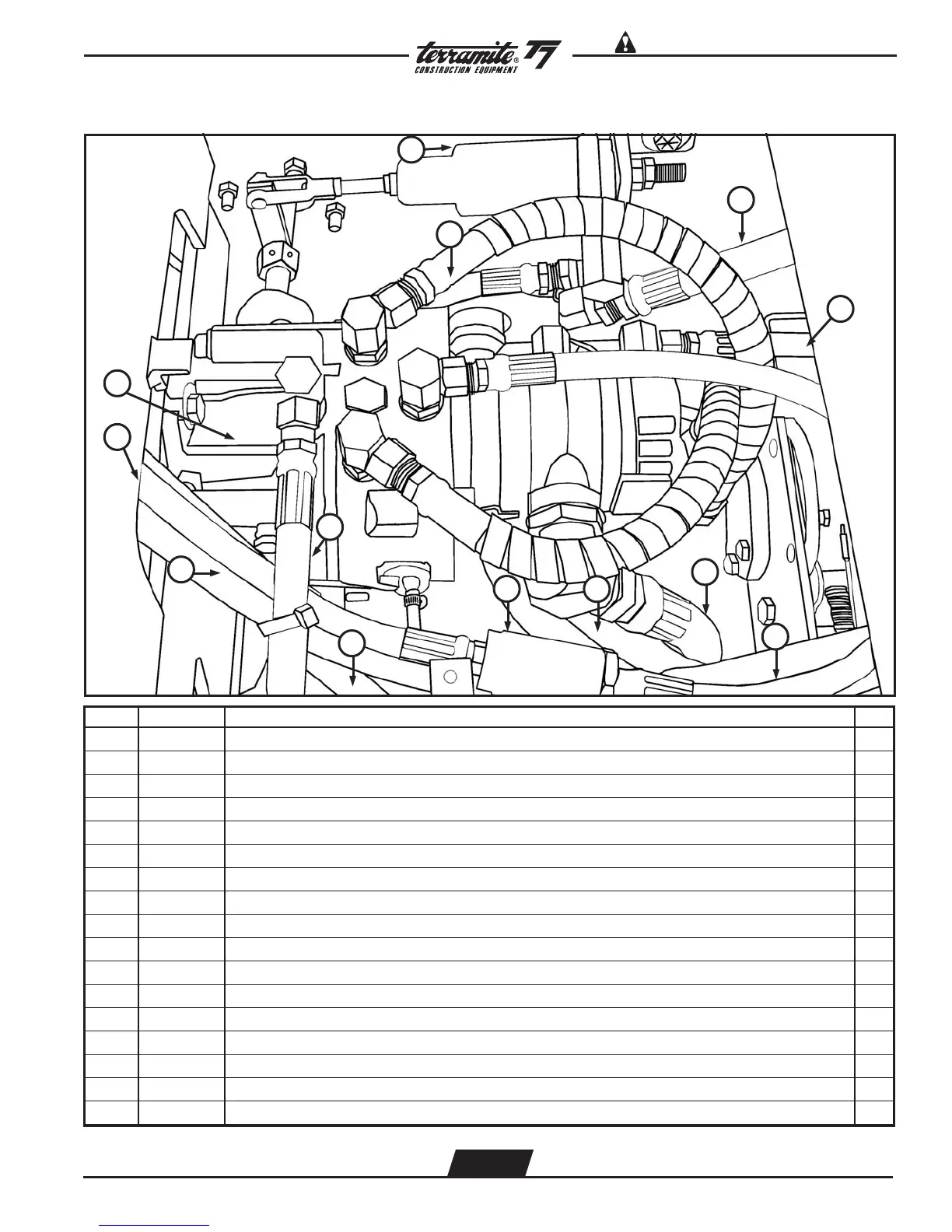

View of Transmission Assembly - Diesel
ITEM PART NUMBER DESCRIPTION QTY.
1 11128 Spring Assembly 1
2 88820 Hose,
1
/2" x 20" 2
3 88827 Hose,
3
/4" x 27" 1
4 80201 Hose,
1
/2" x 57" 1
5 66007 Gear Pump 1
6 81624 Hose,1" x 24" 1
7 80250 Hose,
3
/8" x 25" 1
8 21032 Filter, In Line Hydraulic 1
9 80233 Hose,
1
/2" x 80" 1
10 80251 Hose,
3
/8" x 25" 1
11 88659 Hose,
3
/8" x 58" 1
12 88831 Hose,
1
/2" x 31" 1
13 80232 Hose,
1
/2" x 47" Oil Filter to Back Valve (Not Shown) 1
14 80229 Hose,
1
/2" x 123" Oil Cooler to Oil Filter (Not Shown) 1
15 80099 Hose,
1
/2" x 96" Front Valve to Oil Cooler (Not Shown) 1
16 80230 Hose,
1
/4" x 65" Power Steering (Not Shown) 2
17 64200 Sauer - Danfoss Transmission 1
3
5
2
6
7
8
9
12
11
10
1
4
17
