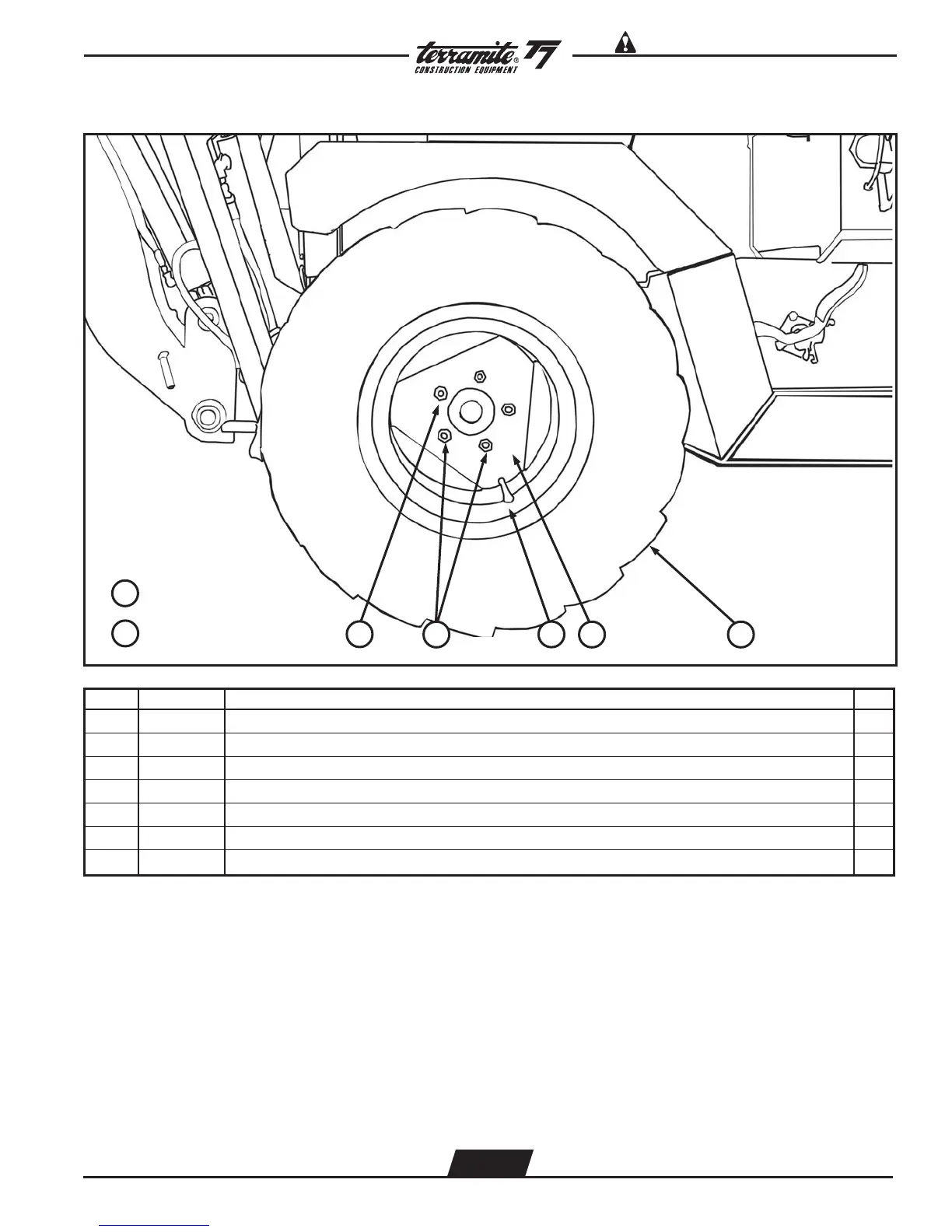

View of Right Rear Tire and Rim
ITEM PART NUMBER DESCRIPTION QTY.
1 51173 Tire, Rear, High Flotation, 31” x 15.5” x 15”, T5C/T5D/T6/T7/T9 1
2 50016 Rim, Rear, 15” x 13”, T5C/T5D/T6/T7/T9 1
3 51003 Valve Stem 1
4 28506 Nut Lug,
1
/2” - 20 ID x
13
/16” OD, Front & Rear 5
5 55380 Lug Stud, Rear Wheel 5
6 51000 Tube, 9.50 x 16 Tire (Not Shown) 1
7 51018 Assembly, Tire & Rim, Rear - HFT, T5C/T5D/T6/T7/T9 1
4
5
3
6 Tire Tube
7 Tire Assembly
