Terramite T5D - View of Clam Shell 4 in 1 Bucket from Drivers Position

WWW.TERRAMITE.COM
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For SafetyPARTS MANUAL
Copyright © 2007 Terramite Corporation
ITEM PART NUMBER DESCRIPTION QTY.
1 80119 Hose,
1
/4” x 109”, MP x MP, Clam Bucket, T6/T9 2
2 23174 Fitting,
1
/4” M x
1
/4” F 45 D 2
3 20174 Fitting,
1
/4” M x
1
/4” Straight, Swivel 4
4 88425 Hose,
1
/4” x 25”, T5C/T5D/T6/T7/T9 2
5 80029 Hose,
1
/4” x 42”, T5C/T5D/T6/T7/T9 2
6 21403 Handle, Valve, Loader (Used with Clam Shell Bucket Only) 1

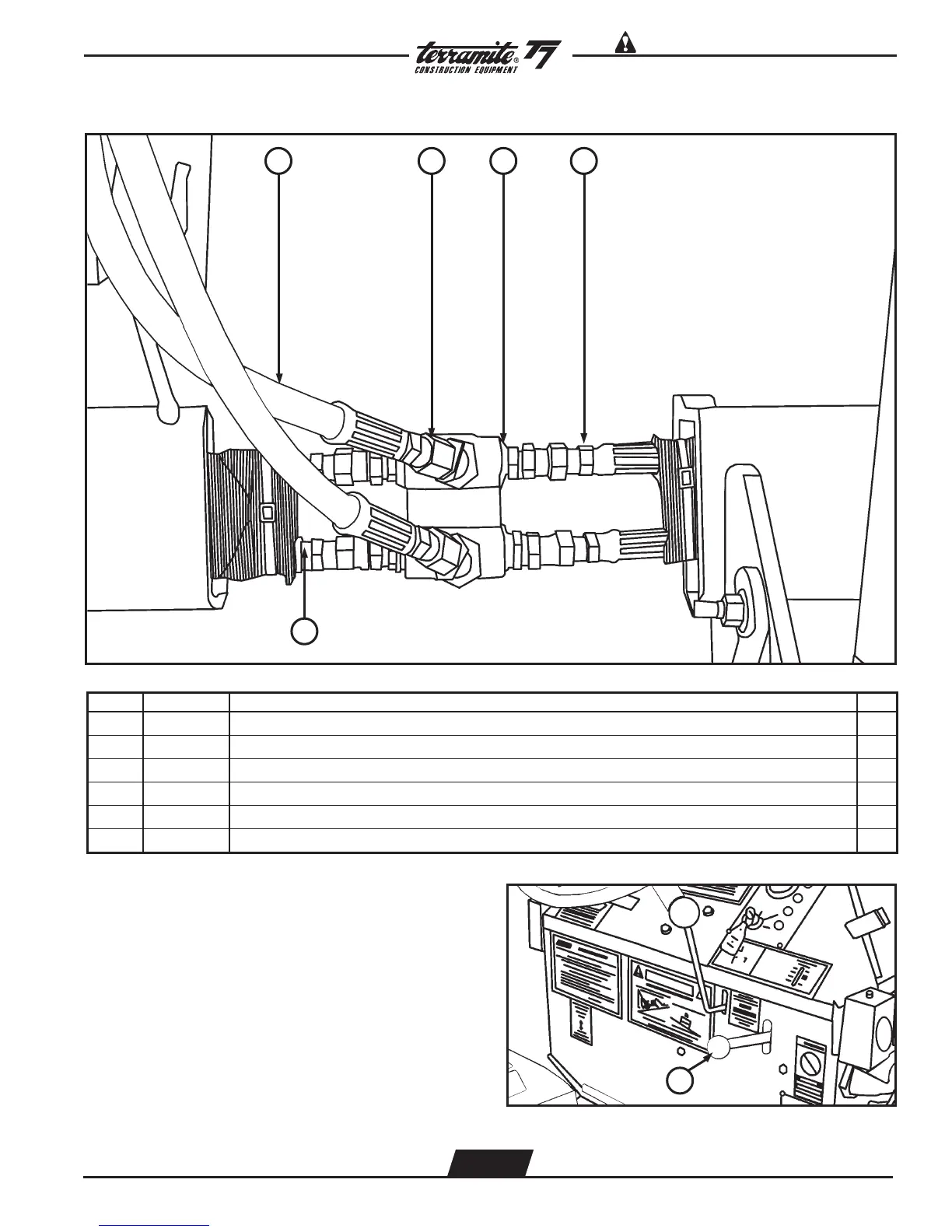

View of Clam Shell 4 in 1 Bucket from Drivers Position (Factory Installed Option)
1 2 3 4
5
View of Dash for Clam Shell
4 in 1 Bucket
(Factory Installed Option)
6
5.3
