Terramite T5D - View from Front of Rear Axle

WWW.TERRAMITE.COM
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety PARTS MANUAL
Copyright © 2007 Terramite Corporation

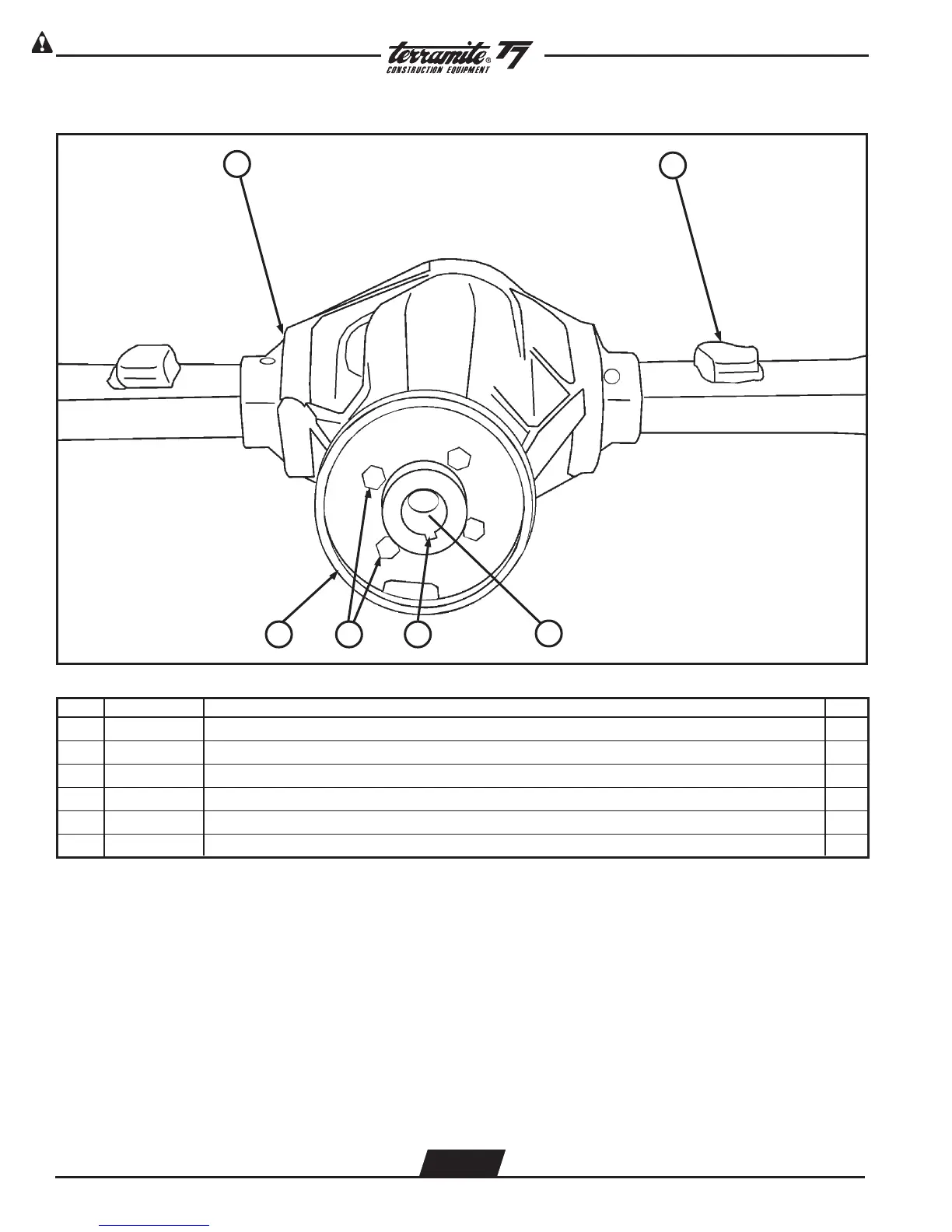

View from Front of Rear Axle
ITEM PART NUMBER DESCRIPTION QTY.
1 55004 Axle, Rear, T5C/T5D/T7/T9 2W 1
2 55005 Pad, Rear Axle Spring 2
3 57034 Brake Drum, Weldment 1
4 26288 Bolt,
3
/8” x 1
3
/4” NF GR8Z 4
5 62021 Key, Torque Motor, TRW/Parker 1
6 51800 Flange, Drive Motor, T4/T5C/T5D/T6/T7/T9 1
1
43
2
5
6
2.44
