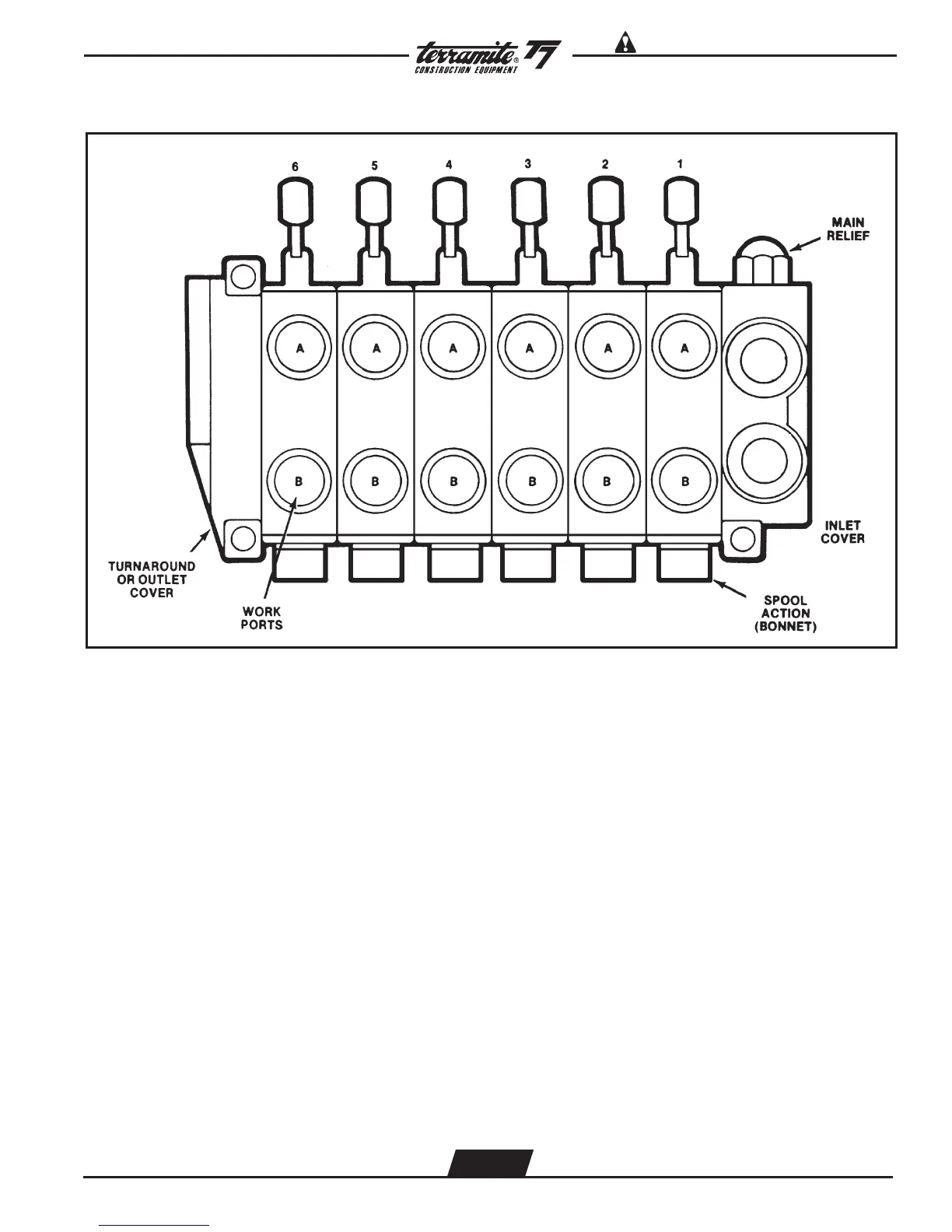

Schematic-View of Typical Control Valve Assembly - V20

1. Before disassembly, it is suggested that each valve section be marked numerically to avoid incorrect

reassembly.

2. Remove three assembly stud nuts from the left end section using a

" thin wall socket.

3. Remove valve sections by sliding from assembly studs.

4.33
