Terramite T5D - View of Hose Location for Rear Valve

WWW.TERRAMITE.COM
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety PARTS MANUAL
Copyright © 2007 Terramite Corporation
ITEM PART NUMBER DESCRIPTION QTY.
1 80202 Hose, 1/4" x 130" 1
2 80203 Hose, 1/4" x 91" 1
3 80188 Hose, 1/4" x 48" 2
4 80205 Hose, 1/4" x 67" 2
5 80190 Hose, 1/4" x 25" 1
6 80200 Hose, 1/2" x 47" 1
7 80201 Hose, 1/2" x 57" 1
8 80197 Hose, 1/4" x 24" 1
9 80202 Hose, 1/4" x 39" 2
10 80204 Hose, 1/4" x 87" 1
11 80191 Hose, 1/4" x 124" 1
12 80199 Hose, 1/2" x 180" 1

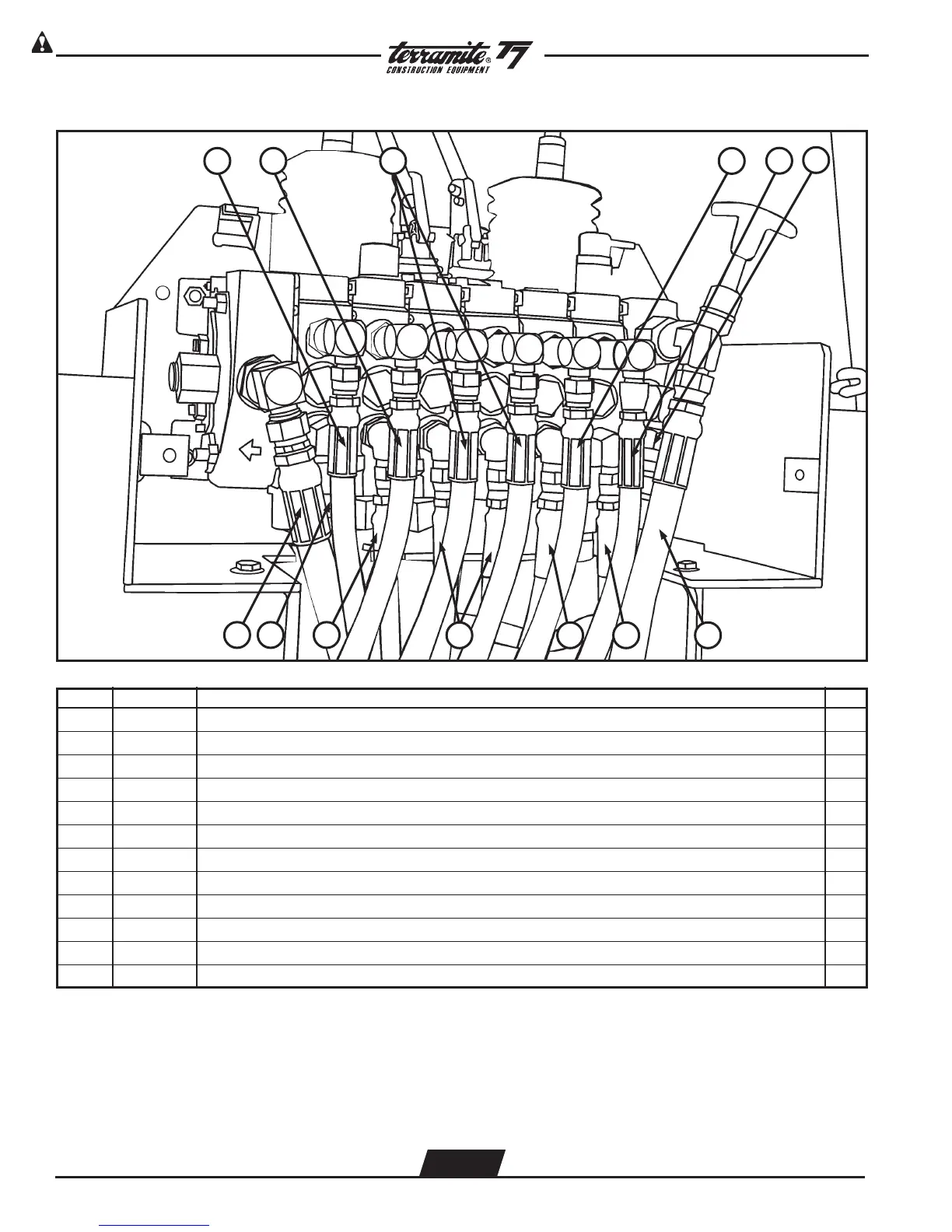

View of Hose Location for Rear Valve (180 Swing)
1 4
5
6
2 3
78
9
10
4
1112
2.42
