Terramite T5D - MAB;MAE Torquemotor Exploded Assembly View

WWW.TERRAMITE.COM
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety PARTS MANUAL
Copyright © 2007 Terramite Corporation

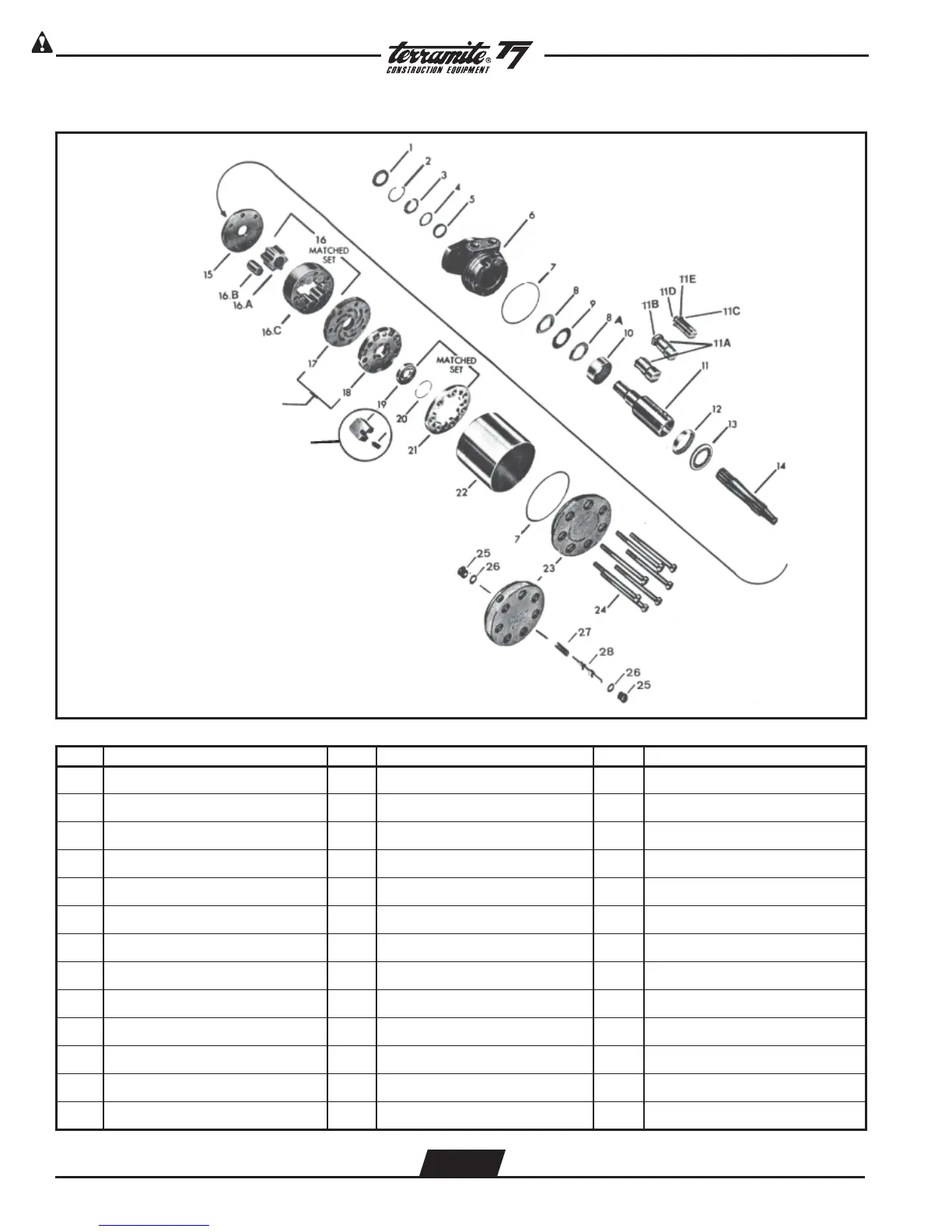

MAB/MAE Torquemotor Exploded Assembly View
ITEM DESCRIPTION ITEM DESCRIPTION ITEM DESCRIPTION
1 Seal 11B Nut 17 Manifold Plate
2 Retaining Ring 11C Washer 18 Manifold
3 Back-Up Washer 11D Bolt 19 Commutator
4 Washer 11E Lock Washer 20 Seal Ring
5 Seal 12 Bearing 21 Commutator Ring
6 Housing 13 Thrust Bearing 22 Sleeve
7 Seal Ring (2) 14 Drive Link 23 End Cover Assembly
8 Thrust Washer 15 Wear Plate 24 Special Bolt (7)
8A Thrust Washer 16 Rotor Set 25 Plug
9 Thrust Bearing 16A Rotor 26 O-Ring
10 Bearing 16B Vane (7) 27 Sping
11 Coupling Shaft 16C Stator 28 Valve (Shuttle)
11A Key
4.30
