Terramite T5D - View from Right of Foot Pedal Control

WWW.TERRAMITE.COM
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For SafetyPARTS MANUAL
Copyright © 2007 Terramite Corporation

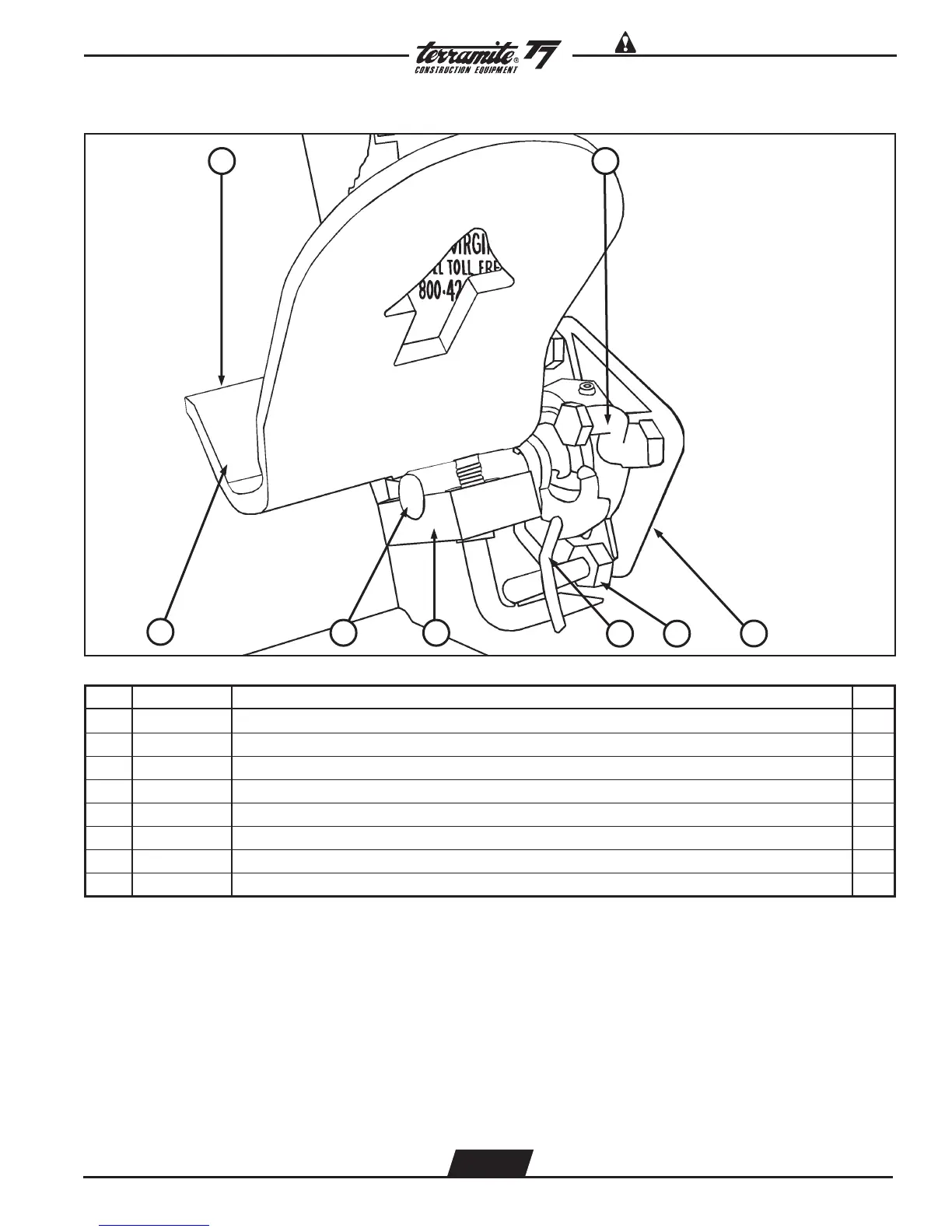

View from Right of Foot Pedal Control
ITEM PART NUMBER DESCRIPTION QTY.
1 11600 Pedal, Foot 1
2 11628 Bolt, Pedal Stop, T5C/T5D/T7 2
3 11627 Block, Pillow, Bearing, T5C/T5D/T6/T7/T9 1
4 11629 Bolt, Spring Centering, T5C/T5D/T7 1
5 13029 Spring, Pedal, Hairpin, T5C/T5D/T6/T7/T9 1
6 11610 Block, Pedal, T5C/T5D/T6/T7/T9 1
7 11620 Shaft, Pedal, T5C/T5D/T6/T7/T9 1
8 16177 Tape, Pedal, Anti-Skid 1
1 2
3
45
67
8
