Terramite T5D - View of Front Axle (Bumper Not Shown)

WWW.TERRAMITE.COM
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety PARTS MANUAL
Copyright © 2007 Terramite Corporation
ITEM PART NUMBER DESCRIPTION QTY.
1 53091 Bearing, Thrust, F Spin, T5C/T5D/T6/T7/T9 2WD (not shown) 2
2 53212 Axle, Front, T5D/T7 (prior 1/1/01) 1
3 53107 Boss, Spindle Lock, T5D/T6/T9 2WD 2
4 28501 Screw, Set,
1
/2” - 20 x
1
/2” Plain 4
5 21428 Fitting, Grease
1
/4” - 28 Straight 4
6 53050 Spindle, Front, Left, 9
5
/8”, T5D/T7/T6/T9 2WD 1
7 53137 Hub, 5 on 4.5”, T5C/T5D/T6/T7/T9 2WD 2
8 53116 Spindle, Front, Right, 9
5
/8”, T5D/T7/T6/T9 2WD 1
PIVOT PINS & BOLTS
9 15406 Pin, Front Axle Pivot, 1
1
/4, T5C/T5D/T7 (prior 11/00) 1
10 53081 Nut, Hex, 1
1
/4” - 12 Slotted Regular 2
11 15013 Bolt,
1
/4” - 20 x 2
1
/2” Gr8 Z 2
12 24008 Washer,
1
/4” Flat USS 2
13 28504 Nut,
1
/4” NC Lock Z 1

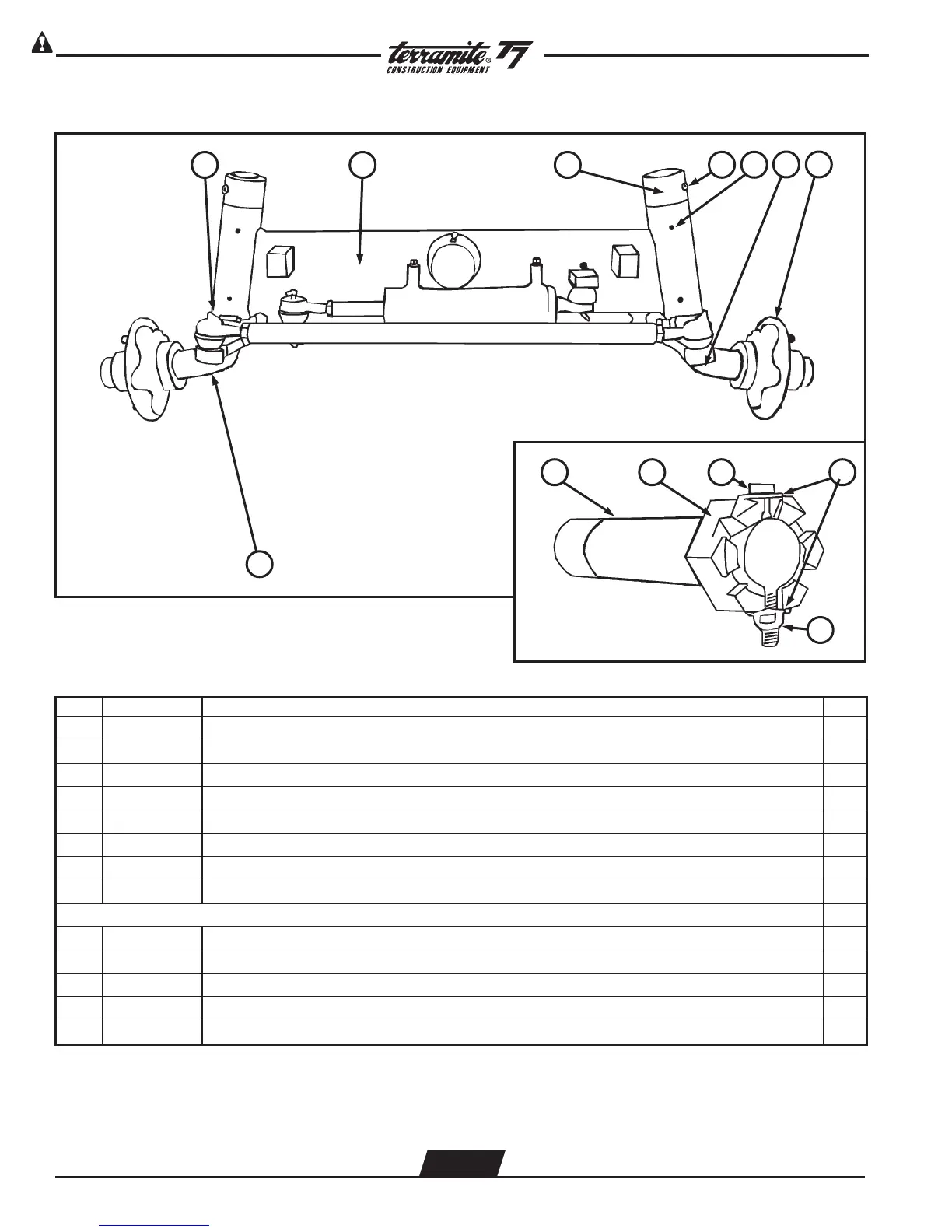

View of Front Axle (Bumper Not Shown) (Prior 1/1/01)
