TestEquity F4T User Manual

Chapter 2 – Using the F4T Front Panel
Page 10 TestEquity F4T Controller
Manual Chamber Operation
Static (Manual) Set Point
Set Point is the Temperature or Humidity setting that you want the chamber to maintain. The
F4T Controller is in Static Set Point Mode when it is not controlling a Profile. The Static Set
Point is entered in the Closed-Loop Set Point screen.

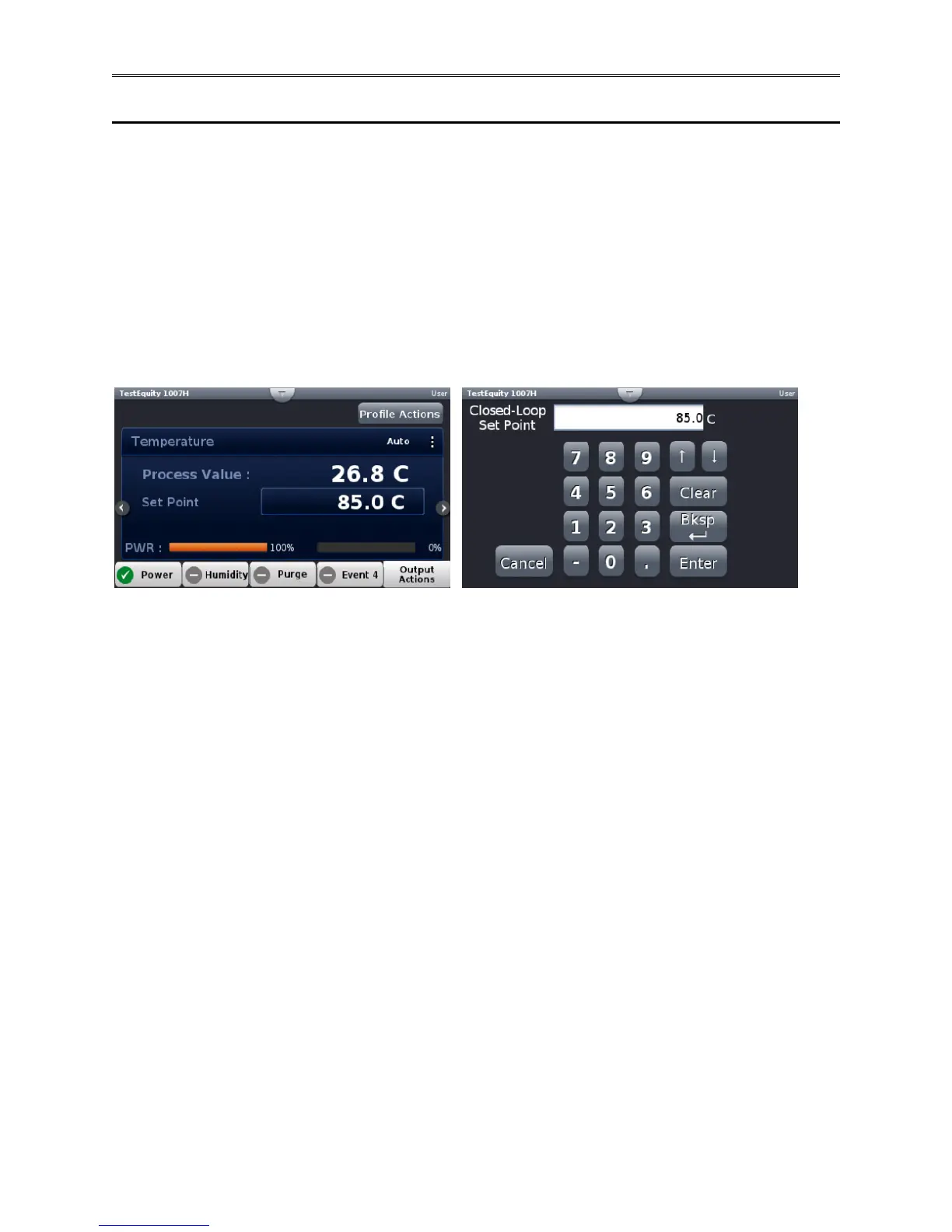

Navigating the Closed-Loop Set Point Screen
To enter the Closed-Loop Set Point screen, press the area in the Set Point box on the Home
Screen. The Closed-Loop Set Point screen will appear. Values can be added with the numeric
keypad or the  or  arrow keys.
Pressing the numeric keys will directly enter a value in the Closed-Loop Set Point box. There is
no need to clear the existing value first.
Pressing the  or  arrow keys will increment or decrement the existing Closed-Loop Set Point
value in 0.1 increments each time the key is pressed.
• Clear will clear all entries in the Closed-Loop Set Point box.
• Bksp (backspace) will clear the last digit in the Closed Loop Set Point box.
• Enter will enter the values in the Closed-Loop Set Point box and return you to the Home
Screen.
• Cancel will return you to the Home Screen without changing the Set Point.
