Chapter 5 – Event Board Option TE-0033
Page 54 TestEquity F4T Controller
Controlling the Events
The Event Relay Option uses Event 4, 5, 6, and 7.
Events can be turned ON/OFF manually using the buttons on the F4T Output Widget. The
buttons may be named differently depending on your model chamber. The buttons can be
pressed to toggle the functions ON/OFF in manual mode or while a profile is running.

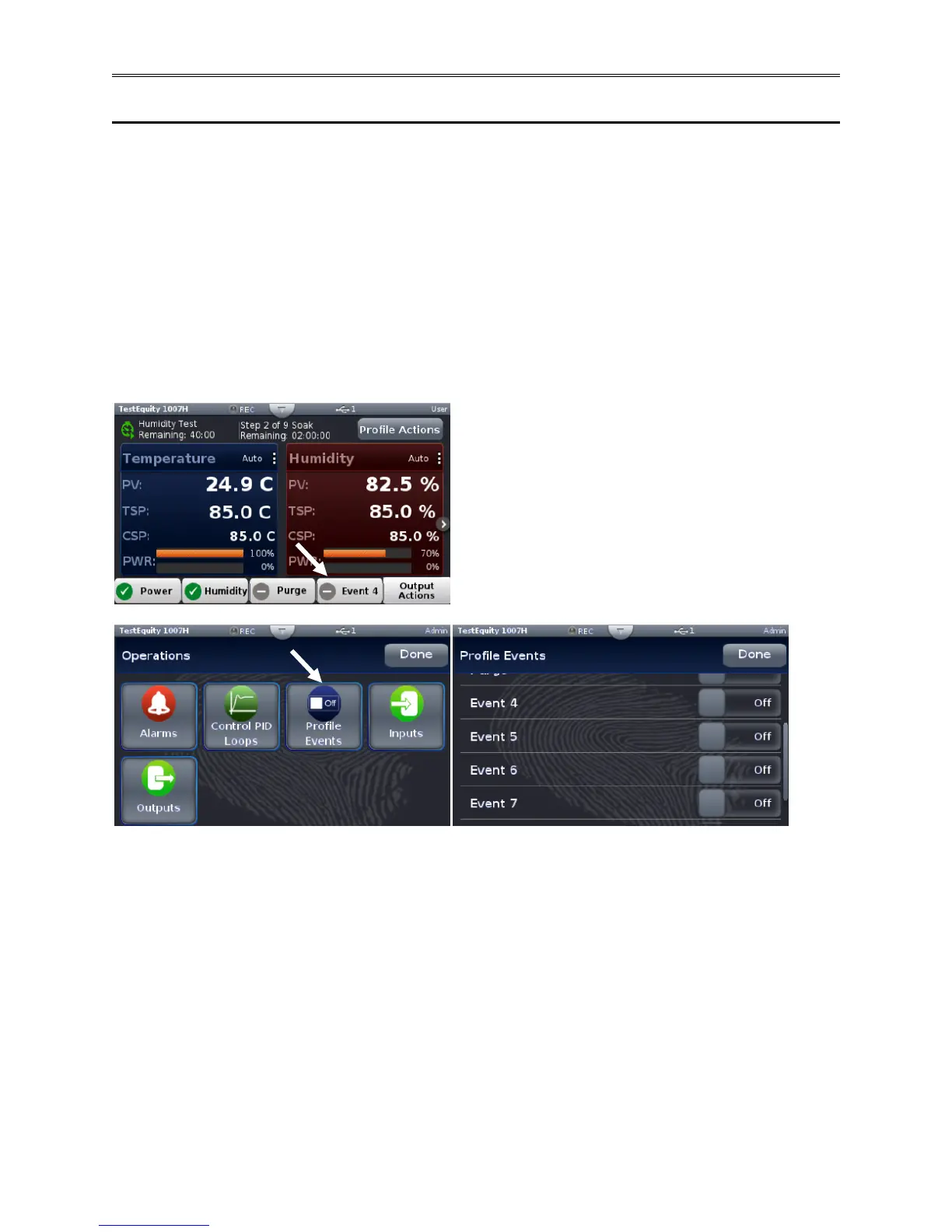

The image below shows an F4T with Power, Humidity Purge, and Event 4 in the output widget.
Depending on your chamber configuration, you might see Event 4, 5, and 6 on the output widget.
The remaining Events are located in the Operation Screen > Profile Events submenu.
Events can also be turned ON/OFF automatically in a profile step.
